With the built-in antennas and the special design of the Goggles lens, the VR02 Goggles is more compact and exquisite, which makes it maintains a small and lightweight body.

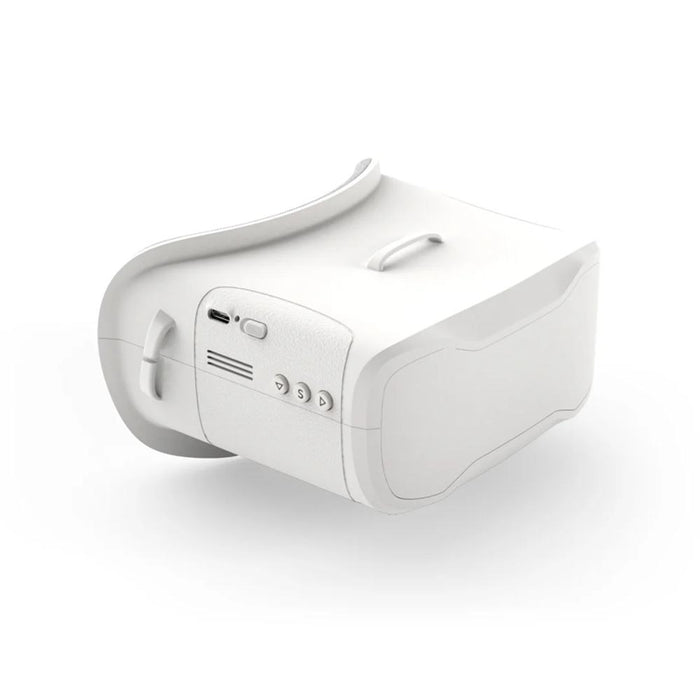

Button
Instruction
Power On/Off
Flick to the left to turn off, and to the right to turn on, the screen will light up after a normal boot.
Band+
Short press for Band+ option A, B, E, F, R, L cycle selection.
Search
After powering on, short press the "S" button to enter the sweeping interface. Press and hold the "S" button for 1 second to start the frequency auto-search.
CH+
Short press for CH 1~8 cycles.
BETAFPV VR02 FPV Goggles has a frequency sweep function and a fast frequency auto-search function, it will help pilots find a stronger Band to get a better flight experience.
The frequency sweep function can display the occupancy status of each channel in the current space so that pilots can fly with a better Band and enhance the flight experience.
How to use the frequency sweep function?
After powering on, short press the "S" button to enter the sweeping interface, as shown below. Pilots can change the Band via the "Band+" and "Ch+" buttons.
Band Status Indicator
Green
0<RSSI<20, not occupied
Yellow
20<RSSI<70, there is a drone occupying the Band far away, or there is interference
Red
70<RSSI<99, occupied
White
current Band (highest RSSI in the sweep result)
How to use the fast frequency search function?
After powering on, press and hold the "S" button for 1 second to start the frequency auto-search. The frequency auto-search process is 2.5 seconds. After the frequency auto-search is over, it will beep twice and jump to the corresponding Band of the drone.
Features:
With the built-in antennas and structure patented design, the VR02 Goggles is more compact and exquisite, less than 300g lightweight is more comfortable for wearing and carrying.
VR02 goggle comes with built-in 5.8G 14DBI high-quality antennas, you can receive stable and clear images even for long-range flights.
With 4.3 inches 800*480px HD high brightness LCD, VR02 Goggles will show you a bright world without warped and blurred images, which is specially tuned for FPV racing or Model airplanes.
Upgraded the frequency sweep function and the fast frequency auto-search function(only 2.5 seconds), pilots can easily find a band and channel with a stronger signal for a better flight experience.
The advanced auto-searching function will show you the working frequency on the screen vividly.
Adopt an ergonomic design with a foam sponge faceplate and a three-sided adjustable headband, this FPV Goggles fits your face and head perfectly.
Specifications:
Dimension: 126x143x86.3mm
Weight: 300g with 2hr 2000mAh battery
Belt: Three-Ways adjustable belt
screen size: 4.3 inch
Screen resolution: 800*480 px
Screen brightness: 300cd/m2
View Angle: 55°
Type-C Charging
Voltage: 3.7V,the device operating current of 500mA@3.7V
Current: 500mA
Built-in 3.7V/2000mAh high-capacity polymer battery, LED turn on while charging. When charging is completed, the LED will turn off.
Each full charge revive is around 2 hours working time
