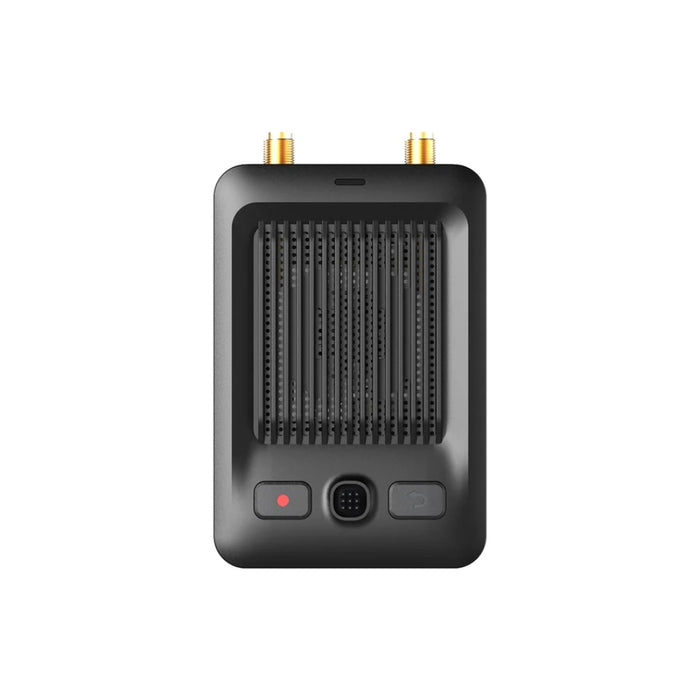

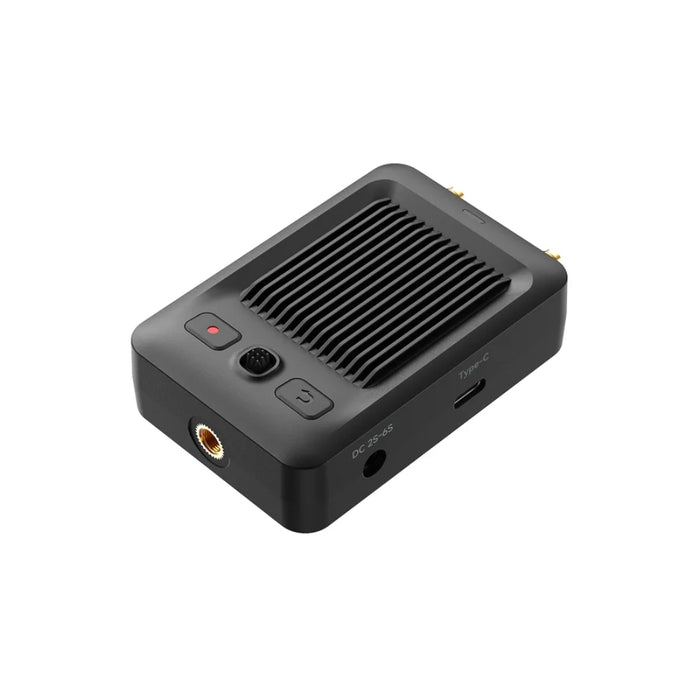

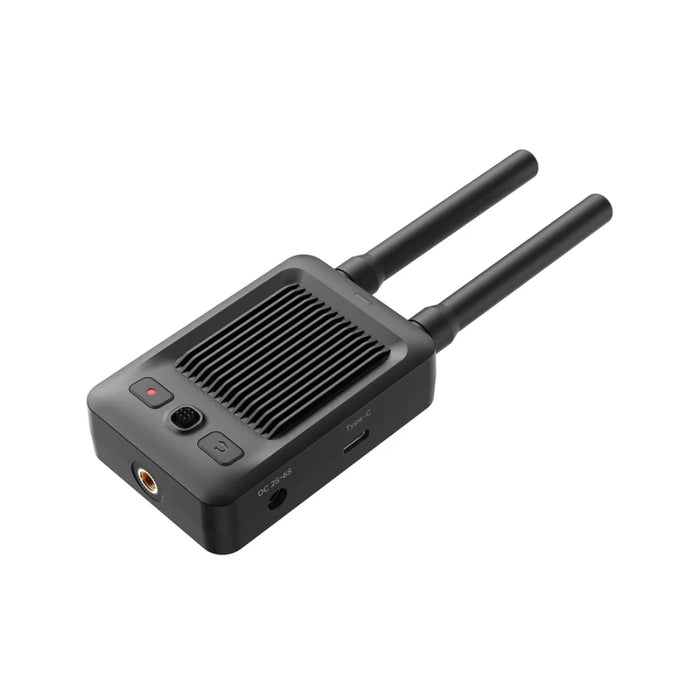

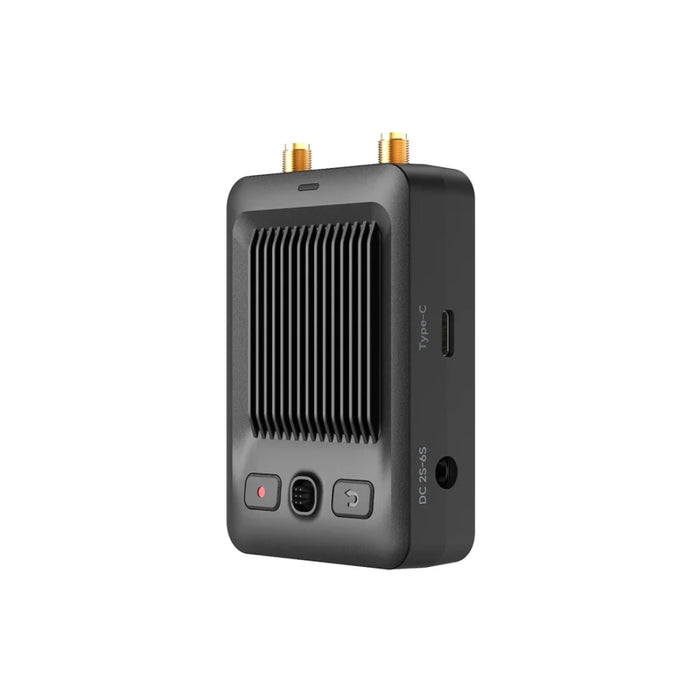

The P1 HD VRX (Standard) is a digital video receiver compatible with the ArtLynk Protocol, designed to bring affordable, crystal‑clear HD FPV to education, training, racing events, and professional presentations. Simply connect it via the mini HDMI port to external displays or goggles, and enjoy a stunning 1080p@60fps live feed with low latency and reliable 400m+ range. With a built‑in 1/4" tripod nut and an integrated cooling fan, the P1 VRX Standard is built for long‑operation both indoors and outdoors – making it the perfect choice for professional monitoring and live viewing.
Check out all our Digital VTX/Camera Collection and the rest of our BetaFPV Products!
Note: The Type-C port is designed for firmware updates only. It does not support power input or video output.
Dimensions
Mini HDMI Output for HD Presentation
The P1 VRX Standard connects to external displays or goggles via its mini HDMI port for clear, real‑time HD viewing. Whether you're coaching a student, presenting to an audience, or monitoring a race, it ensures everyone sees the action in crisp 1080p detail – making it the perfect tool for professional and educational environments.
Built for Long‑Operation & Outdoor Use
Engineered for reliability, the P1 VRX Standard features a built‑in cooling fan to prevent overheating during extended sessions. The 1/4" tripod nut allows for stable mounting, making it ideal for outdoor events and field use.
Smooth, Reliable Video Transmission
The P1 HD VRX supports 1080p@60fps video transmission with a stable 400m+ range and low latency for a smooth, immersive flying experience. Operating across the 5.3–5.8GHz frequency range, it allows you to switch channels to avoid interference, ensuring optimal transmission range and image quality even in crowded RF environments.
Know More About ArtLynk Protocol
The ArtLynk protocol is a low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX. ArtLynk protocol enables real-time HD video at about 60ms latency from glass to glass, which is crucial for smooth flight control and high-quality FPV (First Person View). Here are the key features you may want to know.
- Artosyn Inside & KAP Supported: ArtLynk protocol uses the Artosyn's latest AR803X chipset, with core technology support provided by KAP (KAP company provides core technology support or product solution to all FPV companies and ensures compatibility for various FPV products using Artosyn chipsets).
-
Collaborative and Open Community: ArtLynk protocol is a collaborative FPV ecosystem not belonging to ONLY one company. Many FPV enterprises and teams would design and produce their own products based on the ArtLynk protocol, ensuring broad compatibility and fostering community.
The ArtLynk protocol supports the following devices, letting you customize your own build or simply bind and fly:
- BETAFPV P1 Air Unit, VR04 HD Goggles, Aquila20 P1, Meteor75 Pro P1, Monitor, P1 HD VRX (Standard), P1 HD VRX (Nano) [Beta Test], Matrix 1S AIO P1 HD FC [Beta Test]
- HGLRC Draco
- TJRC VTX, XJRC XJ3D Goggles, XJRC 02L Goggles
- More coming soon!
Files
Features:
-
Mini HDMI Output: Connect to external displays or goggles for training, racing, and presentations.
-
1080p@60fps HD Video: Smooth, low-latency transmission with 400m+ reliable range.
-
1/4" Tripod Mount: Stable setup for outdoor events and field use.
-
Built-In Cooling Fan: Reliable performance during extended operation.
-
Multi-Band Switching: Interference-free performance in crowded RF environments.
Specifications:
-
Dimensions (antenna excluded): 85.6 x 54.8 x 30.9mm
-

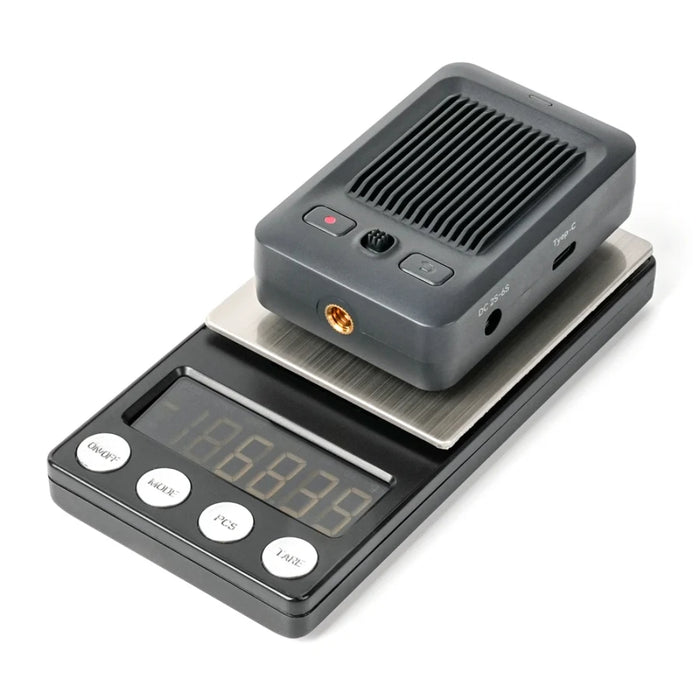

Weight (antenna excluded): 70.5g
-
Frequency: 5.3-5.8GHz
-
Effective Isotropic Radiated Power (EIRP): <23dBm (FCC), <14dBm (CE)
-
Ports: Type-C, mini HDMI, micro SD card slot, DC 5.5x2.1mm port
-
Antenna Connector: RP-SMA Female (external thread, inner hole)
-
Transmission Resolution: 1080p@60fps
-
Bitrate: 25Mbps
-
Transmission Range: >400m
-
Input Voltage: 5.5-26.4V
-
SD Card Slot: Supports up to 1TB
Package Includes:
-
1 x P1 HD VRX (Standard)
-
2 x 5.8G Antenna
-
1 x DC5521 to XT60 Power Cable
-
1 x Mini HDMI to HDMI Cable
- 1 x User Manual
