BetaFPV Air VTX Analog 25mW output with PIT mode

BetaFPV Air VTX Analog 25mW output with PIT mode

SKU U3-14641
Availability:
in stock
$15.99 - $15.99
$15.99
$15.99 - $15.99
$15.99

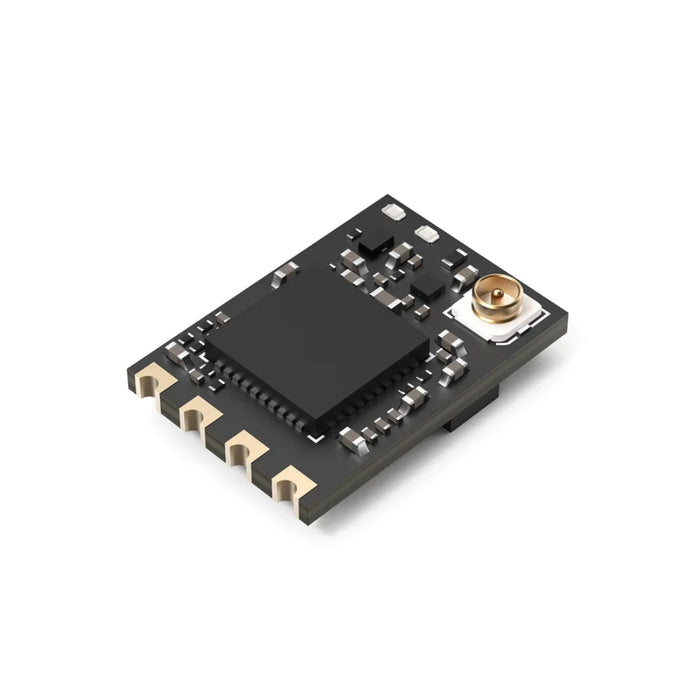

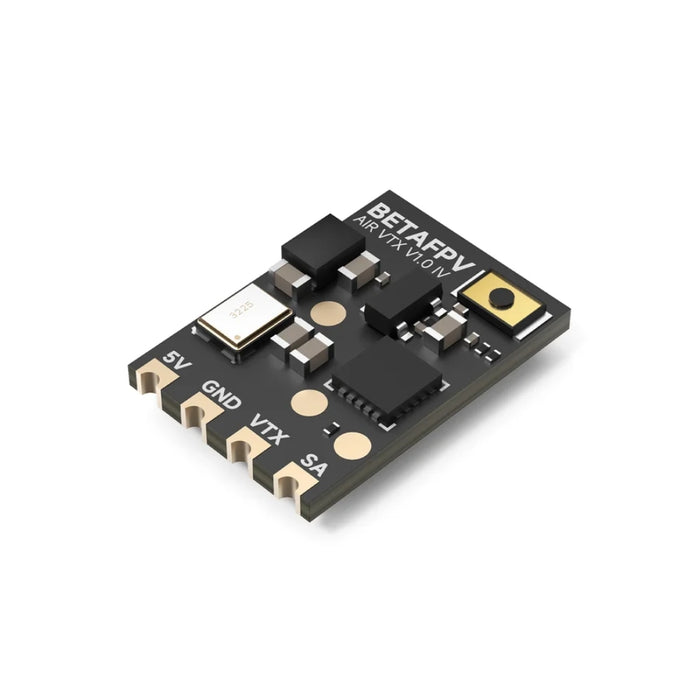

The BetaFPV Air VTX is an ultra-lightweight analog video transmitter built for pilots who demand simplicity, weight savings, and race-ready performance. Weighing just 0.6g and measuring a compact 14x10.5mm, it delivers clean 25mW output with PIT mode support, making it an ideal choice for micro whoops and weight-conscious racing builds.

Check out all out Analog VTXs and the rest of our BetaFPV Products!

Features:

  • Ultra-lightweight and compact design at just 0.6g
  • Race-ready 25mW power output for reliable short-range video transmission
  • PIT mode support allows safe powering up on the bench without interfering with other pilots
  • Integrated IPEX antenna connector for easy mounting and replacement
  • SmartAudio 2.0 protocol support for convenient OSD channel and power adjustment
  • Seamless pairing with flight controllers for clean custom builds

Specifications:

  • Operating Voltage: 5V
  • Operating Current: 150mA (25mW)
  • VTX Size: 14x10.5mm

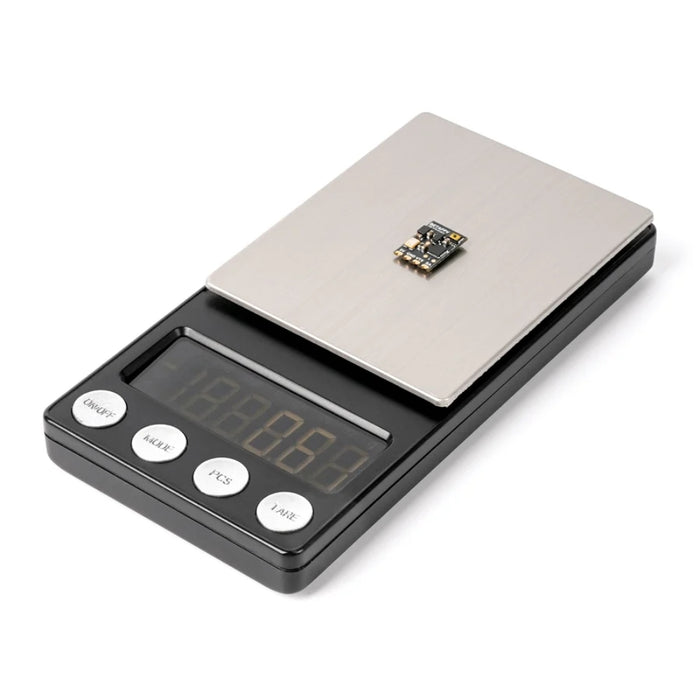

  • Weight: 0.6g (excluding antenna)
  • Output Power: 25mW / PIT
  • Frequency: 5.8GHz 48 channels (with Raceband 5658-5917MHz)
  • Channel Select: SmartAudio 2.0
  • Antenna Connector: IPEX
  • Antenna Port Impedance: 50 Ω
  • Video Format: PAL / NTSC
  • Modulation Type: FM
  • Frequency Control: PLL
  • All Harmonic: Max -50dBm
  • Frequency Stability: ±100KHz (Typ.)
  • Frequency Precision: ±200KHz (Typ.)
  • Channel Carrier Error: ±1.5dB
  • Operating Temperature: -10℃ to +80℃

Package Includes:

  • 1 x BetaFPV Air VTX
  • 1 x Connecting Wire
  • 1 x 5.8GHz Copper Wire

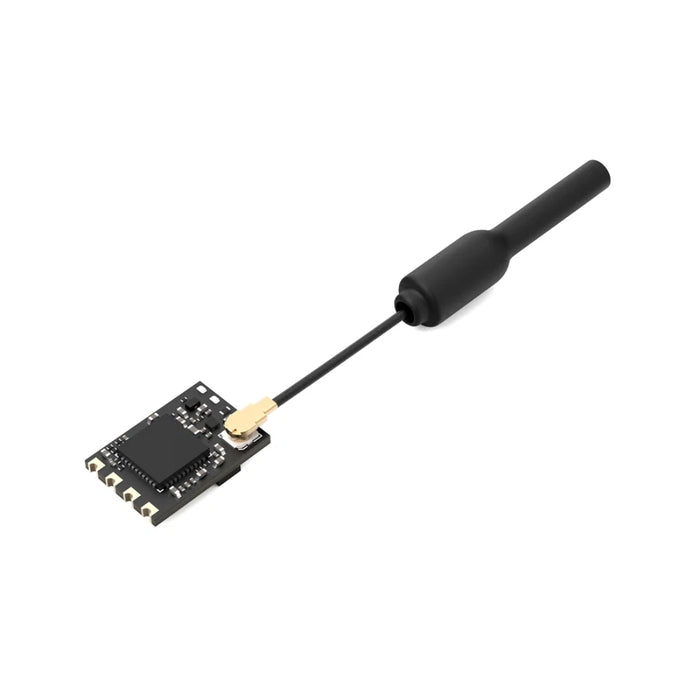

  • 1 x 5.8GHz Whip Antenna
  • 1 x Heat Shrink Tube

Laws and requirements regarding transmission of radio waves vary greatly across the world. In some countries, this product may not be legal. In the USA, the operator of this product is required by law to have a HAM amateur radio license, at the very least. It is the operator's responsibility to make sure that they are using this product in a legal manner, or not using it at all if not possible to do legally in their location. By adding this product to your cart, you are confirming that you have read this notice, and that Pyrodrone is in no way responsible for the actions of the operator while using this product.
