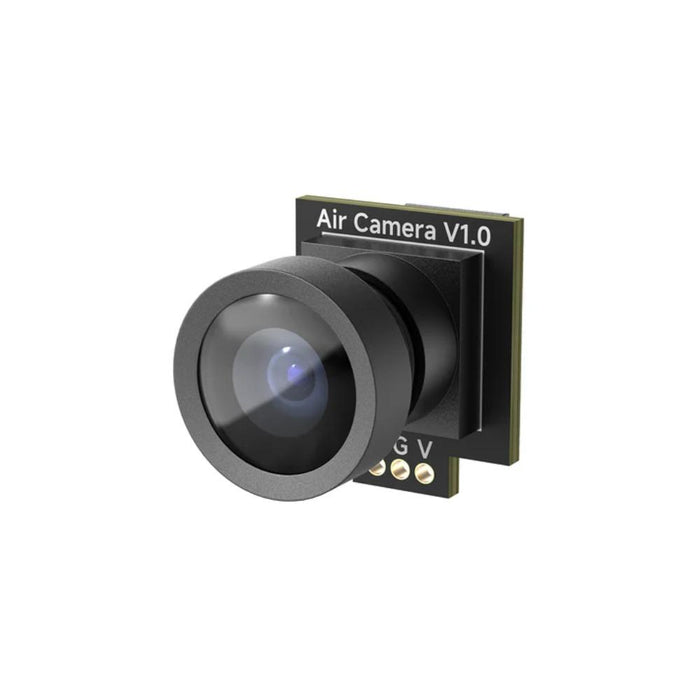

The Air Camera offers 16:9 aspect ratio. It delivers 33% more horizontal view than standard 4:3, paired with a 173° ultra-wide FOV – so you can see more through every corner and react faster. Inside, a new CMOS sensor brings stable color rendition while running cooler, ensuring consistent performance flight after flight. And the glass lens delivers sharper video quality and stands up to scratches better than plastic. Whether you're threading gates or diving gaps, the Air Camera gives you a clearer, wider, truer view of the action.
Check out all our FPV Cameras and the rest of our BetaFPV Products!

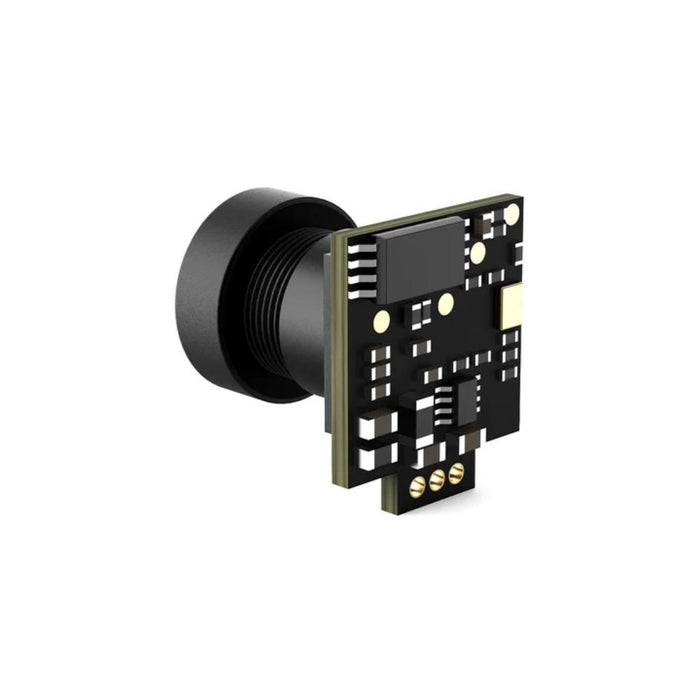

The new image sensor chip integrates CMOS and color processing in a compact design. Expect vivid, stable color rendition with low power consumption – which means less heat, more flight time, and consistently better color in every shot.
The Air Camera features a precision glass lens for superior image stability and video quality. Unlike plastic, it's also highly resistant to scratches – keeping your view clear, run after run.
Package Includes:
- 1 x BetaFPV Air Camera 16:9 Analog FPV cam
Features:
- 16:9 aspect ratio – 33% more horizontal view in 16:9
- 173° ultra-wide FOV (16:9)
- New CMOS sensor – vivid colors, less heat, stable performance
- Glass lens – sharper video, scratch-resistant
Specifications:
- Image Sensor: 1/4.5" CMOS Sensor
- FOV: 173° (16:9)
- Horizontal: 600TVL
- Signal System: NTSC 16:9
- S/N Ratio: 40.59dB
- Electronic Shutter Speed: Auto
-
Auto Gain Control (AGC): Auto
- Power: DC 5-12V
- Current: 60mA@5V
- Connector: JST-0.8mm, cable length 40mm
- Dimensions: 11*13*12.5mm

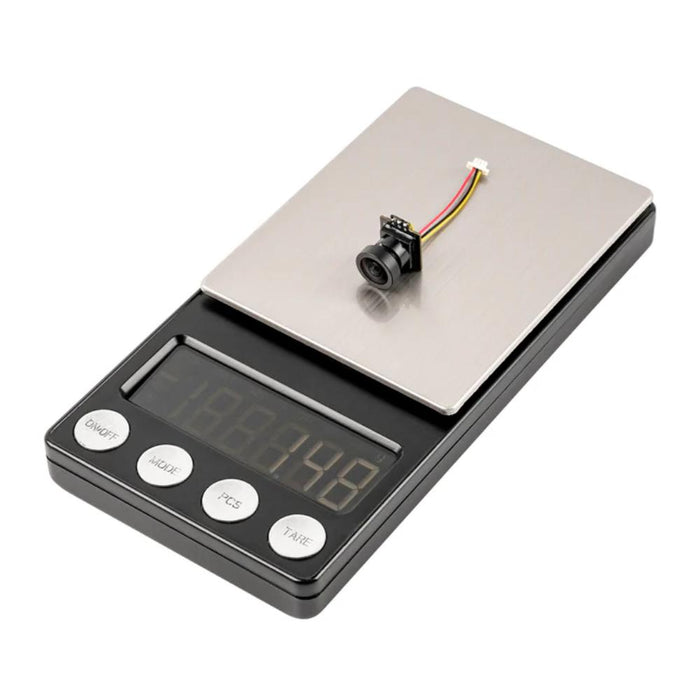

- Net Weight: 1.48g
Plug-N-Play Connector
C03 FPV Micro Camera features a JST-0.8 connector, a special design in plug-and-play, that makes it easy to install without soldering. Suitable for Meteor series drones, BETAFPV F4 1S 5A AIO FC, BETAFPV M03 VTX, and NBD BeeBrain flight controllers.
Package
- 1 * C03 FPV Micro Camera

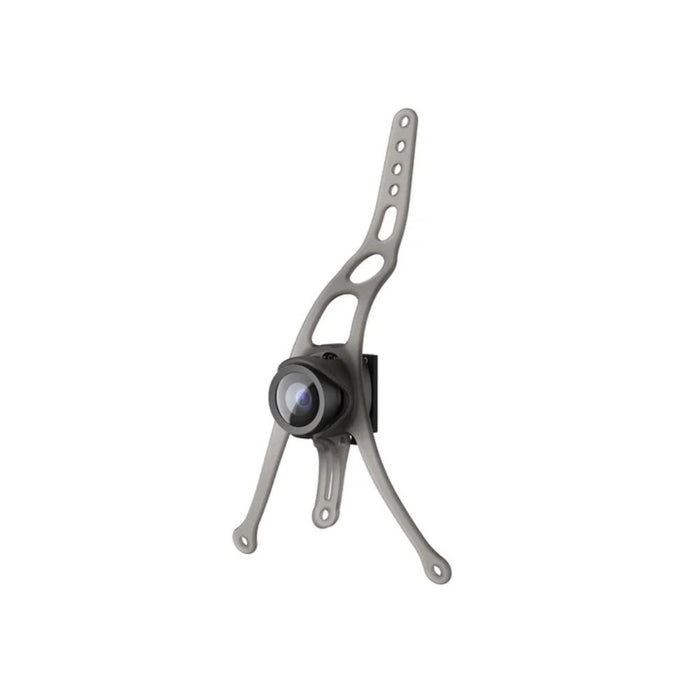

- 1 * BETAFPV Micro Canopy
- 1 * 20° Lens Camera Mount for C03
- 1 * 30° Lens Camera Mount for C03
- 3 * Decorative Parts
- 4 * M1.4*5 Screws (Sliver)
- 6 * M1.4*4 Screws (Black)
