AxisFlying AF2406 4-6S Modular FPV Drone Motor - 2080KV

The Axisflying Modular Motor AF2406 2080KV is a high-performance brushless motor specifically engineered for 5-inch freestyle and bando FPV drones operating on 4S to 6S LiPo power. Built with a 2406 stator architecture, it features an innovative quick-swap modular design that enables tool-free motor replacements in as little as 15 seconds. High-temperature 240°C enameled wiring, a robust 7075 aerospace aluminum bell, and premium NMB bearings deliver linear throttle feel, extreme impact resistance, and high-torque response required for aggressive flying with heavy HD camera payloads.

Check out all our 24XX Size Motors and the rest of our AxisFlying Collection!

Features:

• Modular quick-swap architecture designed for fast 15-second tool-free maintenance.

• 2406 stator size delivering powerful low-end torque and immediate throttle response for 5-inch freestyle setups.

• Durable 7075 aerospace-grade aluminum casing with a crash-resistant multi-spoke structure.

• High-temperature 240°C enameled copper windings engineered to resist thermal degradation under severe load.

• Precision NMB bearings providing smooth operation and high impact tolerance.

• Designed to handle heavy HD camera gear and aggressive bando environments.

Specifications:

• Stator Size: 2406

• KV: 2080KV

• Input Voltage: 4S - 6S LiPo

• Configuration: 12N14P

• Bell Material: 7075 Aerospace Aluminum

• Wire Specification: 20AWG High-Temp Silicone Wire

• Magnet: N52H Arc Magnets

• Shaft Diameter: 5mm

• Mounting Pattern: 16 x 16 mm (4x M3)

• Bearings: Precision NMB

Package Includes:

• 1x Axisflying AF2406 Modular Brushless Motor (2080KV)

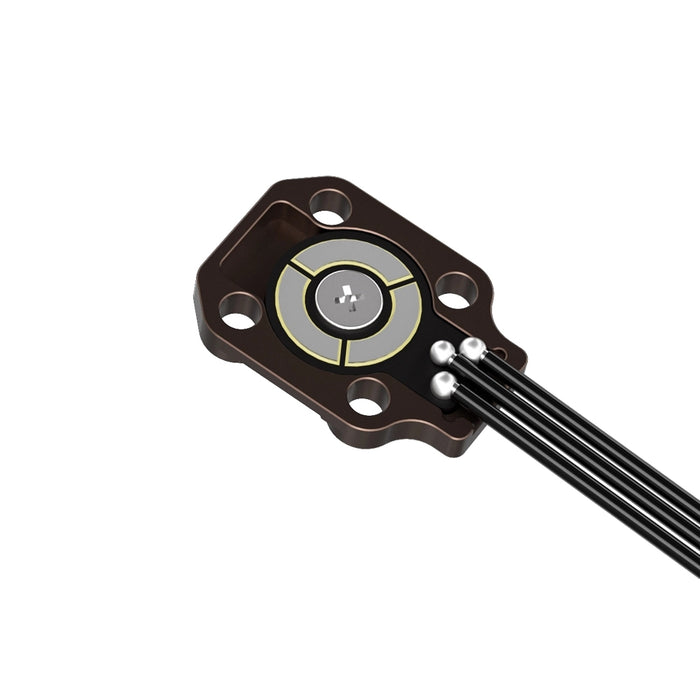

• 1x Motor Mounting PCB Base / Solder Board

• 1x Hardware Screw Set
