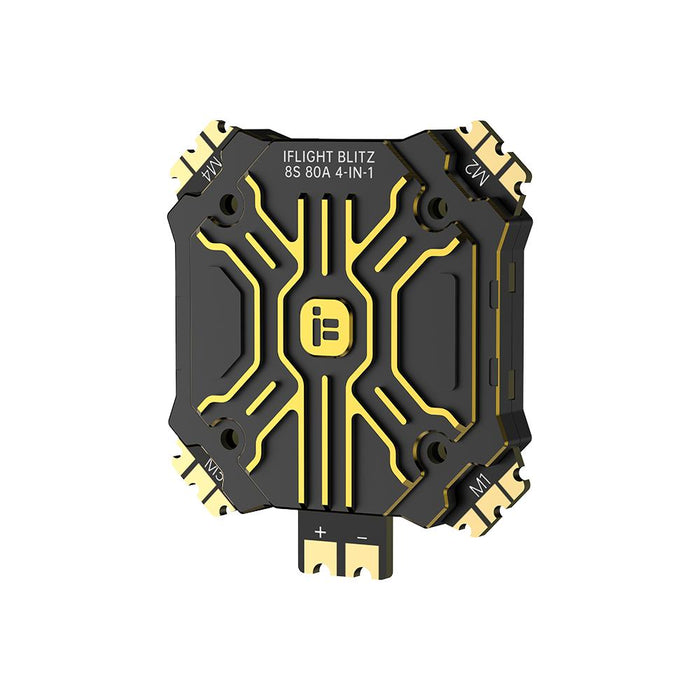

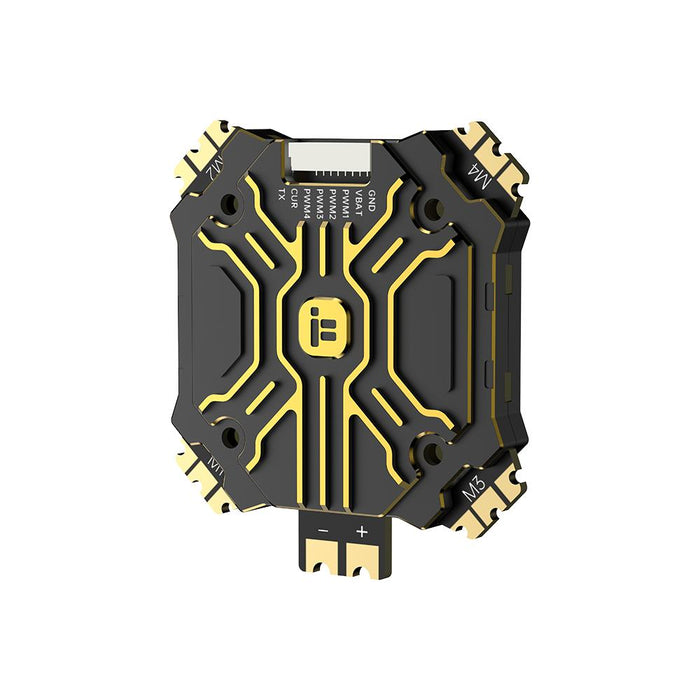

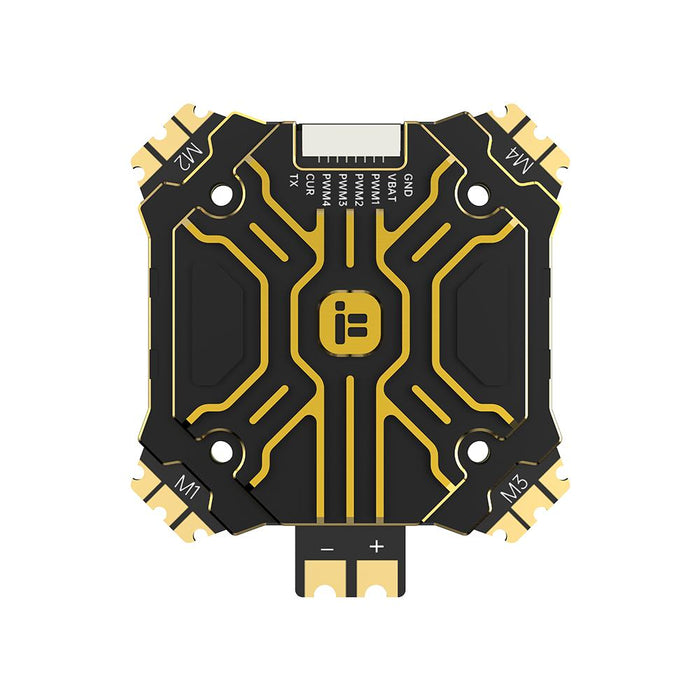

iFlight Blitz E80 Pro CNC Alum Cover 80A 2-8S BLHeli_32 Dshot600 4-in-1 ESC - 30x30mm

The MOSFET used by BLITZ E80 is PSMN1R0-40YLD, which can withstand a continuous current of 80A at 25°C, with a maximum power dissipation of 198W. BEC power supply adopts TI automotive-grade dedicated synchronous rectifier chip, supporting up to 100V.

The 1-4 layer power board of the PCB circuit is ultra-thick copper with a thickness of 4OZ, ensuring continuous output under high-power operation. The STM32F051 main control processor with a running frequency of up to 48MHz, combined with a three-in-one driver IC, achieves a faster running speed!

Version updated. Since BLheli32 Configuration is closed due to regulatory issues, if you need to adjust the parameters of this ESC, please download "BLHeliSuite32Test" Here

Check out all our Electronic Speed Controllers and the rest of our iFlight Products!

Features:

• Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection

• G071 MCU, 48mHz maximum clock speed;

• TDK MLCC Low ESR ceramic capacitors;

• Top grade PSMN1R0-40YLD MOSFET;

• 8 layers double-sided PCB board

Specifications:

• Product Name: BLITZ E80 4-IN-1 ESC

• Input Voltage: 2-8S
• Max. Continuous Current: 80A
• Max. Burst Current: 100A
• MCU: G071
• BEC: No
• Firmware: BLHeli32
• Current Sensor: Yes
• Telemetry: Supported

• Target: IFLIGHT_BLITZ_G2

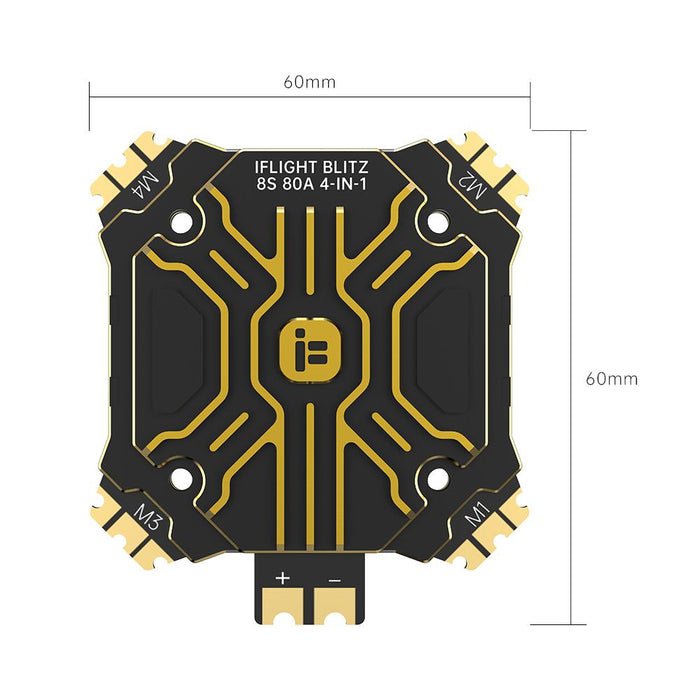

• Mounting Dimensions: 35x35mm/Φ3mm
• Dimensions: 35x42mm
• Weight: 65g(±10)
• Protocal:Supports DShot DShot150/300/600/MultiShot/ OneShot

Package includes:

• 1 x iFlight Blitz E80 Pro CNC Alum Cover 80A 2-8S BLHeli_32 4-in-1 ESC - 30x30mm
• 1 x Wiring Set
