What could be better than the best Crossfire receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.

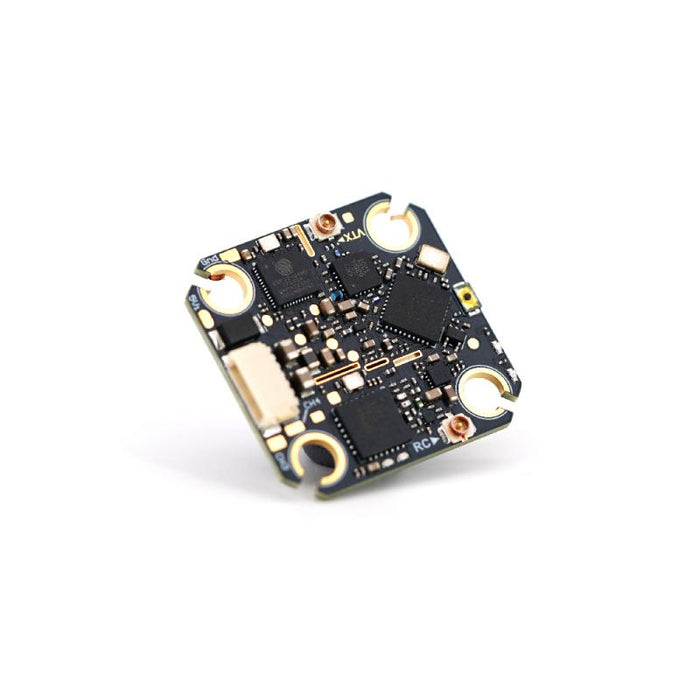

Introducing the TBS Crossfire Sixty9, a VTX and RC receiver AIO board sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Crossfire side. Mounting holes are 20x20.
Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).
Check out all our TBS Crossfire Related Products!
Features:
- Integrated video transmitter control with long range and (team-)race functions
- Dedicated low-noise power supply for receiver and video transmitter
- Sleek 20x20 mounting form factor
- Plug&play connection and solder pads connectivity
- High power analog adjustable video transmitter (up to 1W with perfect cooling)
Specifications:
| CRSF |
V3 ready |
| Weight |
4.1g (board only) |
| Antenna ports |
1x video transmitter, 1x R/C receiver |
| Size |
24mm x 24mm |
| Input voltage |
5V |
| Requires |
Firmware V4.62 and above |
| VTX Table |
VTX Table for Betaflight |

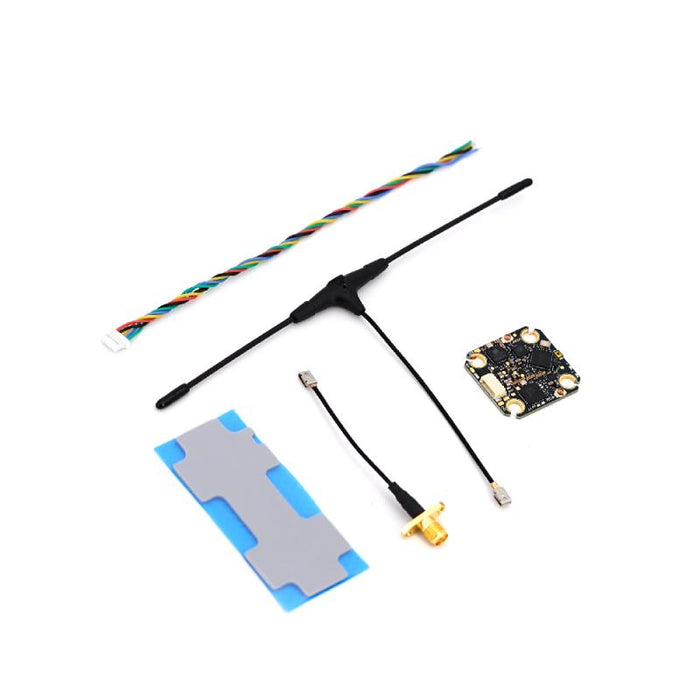

Package Includes:
- 1x TBS Crossfire Sixty9
- 1x Locking TBS Crossfire Immortal-T antenna
- 1x Locking u.FL to SMA mount (for VTx)
- 1x JST-SH x 9 connector
- 4x M3 rubber dampers
Downloads:
Laws and requirements regarding transmission of radio waves vary greatly across the world.
In some countries, this product may not be legal. In the USA, the operator of this product is required by law to have a
HAM amateur radio license, at the very least.
It is the operator's responsibility to make sure that they are using this product in a legal manner, or not using it at all if not possible to do legally in their location.
By adding this product to your cart, you are confirming that you have read this notice, and that Pyrodrone is in no way responsible for the actions of the operator while using this product.
