Skystars H743 Dual BMI270 Gyro Flight Controller and KM60 60A Blheli-32 ESC Stack - 30x30mm

Skystars RC flagship H743 Dual Gyro Flight Controller with X8 support, OSD, dual BMI270 gyro, BMP280 barometer, 16M blackbox, 8 UARTS, and more. The powerful MCU running at 480MHz should future-proof any new firmware updates coming in the next few years.

The Skystars RC KM60 is a 60A 4-In-1 BLHeli_32 ESC with all the latest features found in modern speed controllers.  With a beefy heat sink cover, this ESC should offer smooth performance and great durability.

Check out all our Stacks and the rest of our Skystars Products!

Flight Controller Specifications:

• MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
• Gyro: BMI270 dual
• Baro: BMP280
• OSD: AT7456E
• Blackbox: 16M
• 8x Uarts (1,2,3,4,6,7,8) with built-in inversion.
• 8x PWM outputs
• 1x I2C
• 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
• USB Type-C(USB2.0)
• 2x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
• 1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
• Dual Camera Inputs switch
• VTX 10V/Vbat filtered power ON/OFF switch
• DJI FPV OSD is supported by any spare UART
• Vbat Input:  7~25V (2~6S LiPo)
• BEC:  5V 2A Continuous (Max 3A)
• LDO 3.3V:  Max 250mA
• Firmware:  Betaflight - SKYSTARSH7HD
• Mounting:  30.5 x 30.5mm
• Dimensions:  39.5 x 39.5 x 7.8 mm
• Weight:  10.1g

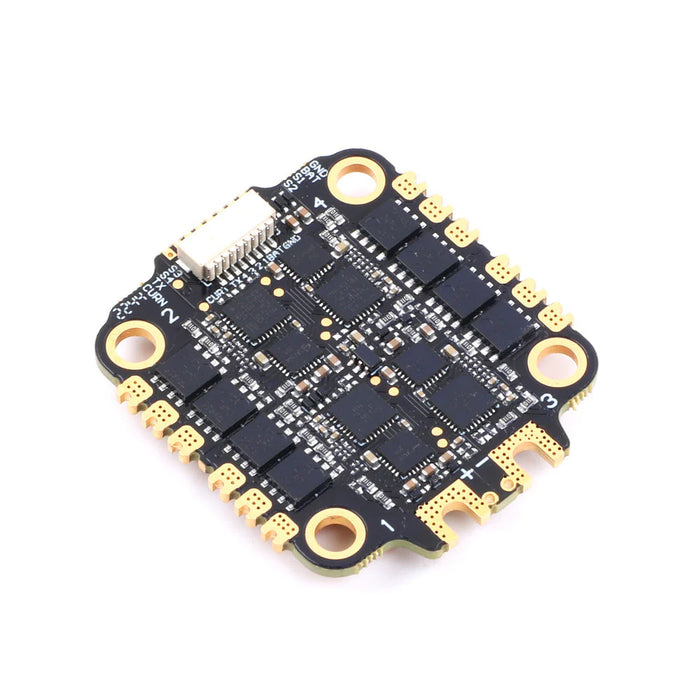

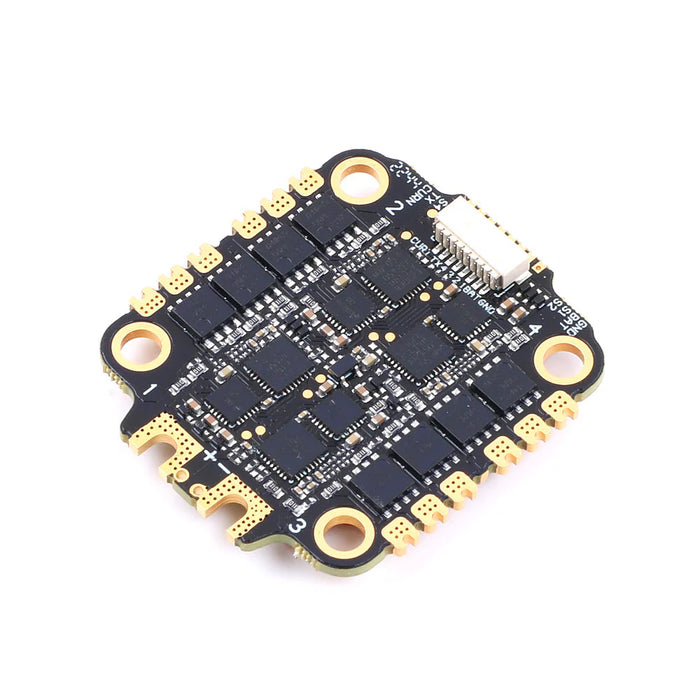

KM60 Features:

• Excellent over-current capability.  Adopts the best PCB material and PCB production process - such as application of high TG materials, 3oz copper PCB & 2μm gold deposition process on PCB.  6-layer layout design of board, compared with others common 4 layer.  Can withstand bigger current.
• Extremely stable support of 6S LiPo battery by use of 24 pcs of new Toshiba standard 40V 5x6 Mosfets & imported from USA or Japan electronic materials. Advanced lead-free SMT Processing technology makes ESC fully support 6s battery and get better performance.
• Excellent heat dissipation performance.  The CNC hollow aluminum alloy shell  is great for heat dissipation.
• Better control performance - flashed with the latest BLHeli_32 firmware in factory, support telemetry functions (including voltage ,RPMS & current )

KM60 ESC Specifications:

• Input voltage: 3-6S LiPo
• Con.Current: 60A
• Peak Current: 80A≥ 10S
• Firmware: BLHeli_32
• Support : Dshot 600/1200
• Mounting hole : 30.5mm/M3
• BEC: No
• Product size: 41*46*7.6mm
• Weight: 18g

Package Includes:

• Skystars H7 Dual BMI270 Gyro Flight controller and KM60 60A Blheli-32 ESC Stack - 30x30mm
