Skystars FlyStack F7 Mini HDPro Flight Controller + KM55 55A AM32 32Bit 3-6S 4-in-1 ESC - 20x20mm

Skystars FlyStack F7 Mini HDPro Flight Controller + KM55 55A AM32 32Bit 3-6S 4-in-1 ESC - 20x20mm

SKU C1-13153
Availability:
Out of stock
Sold out
$128.99 - $128.99
$128.99
$128.99 - $128.99
$128.99

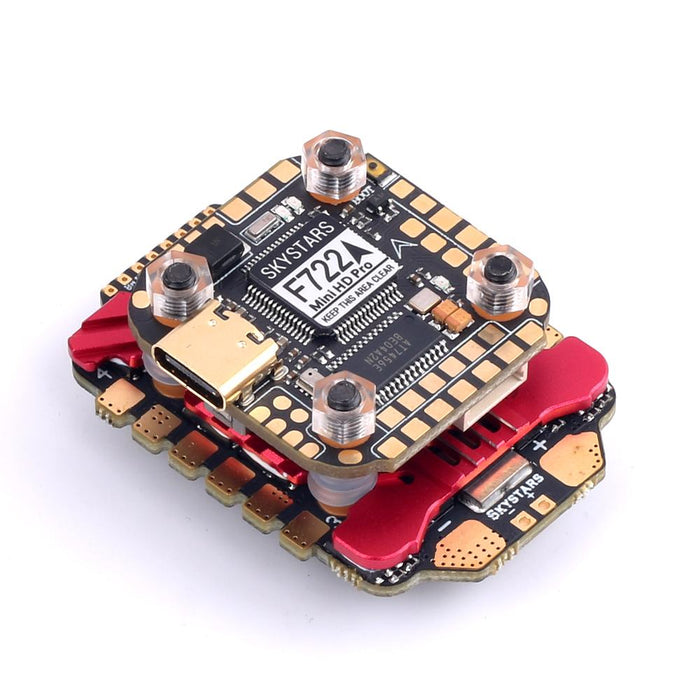

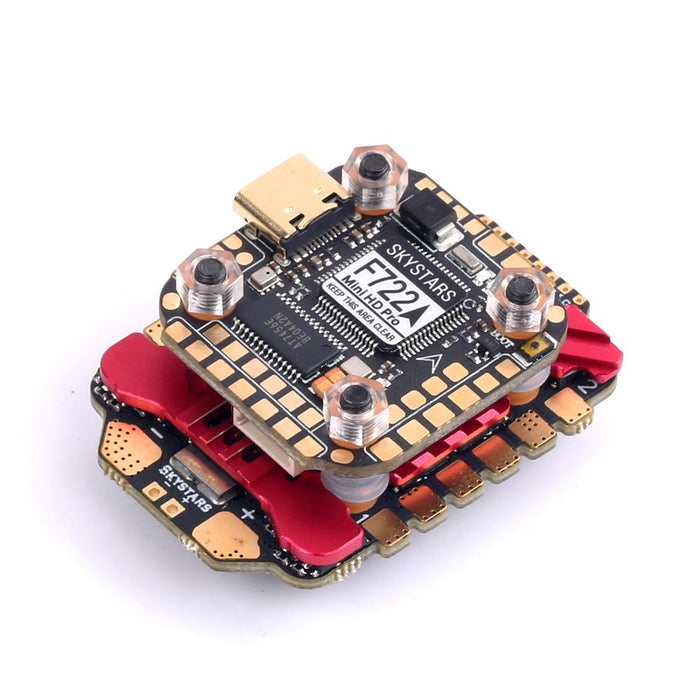

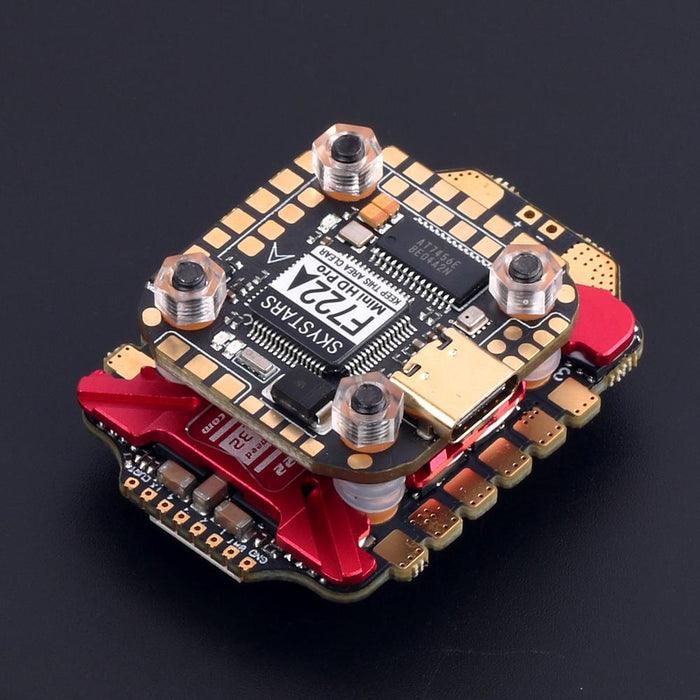

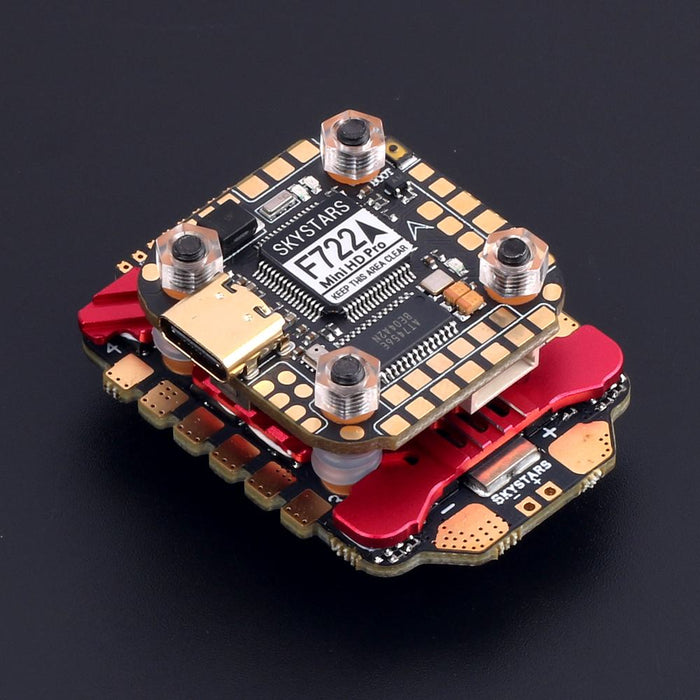

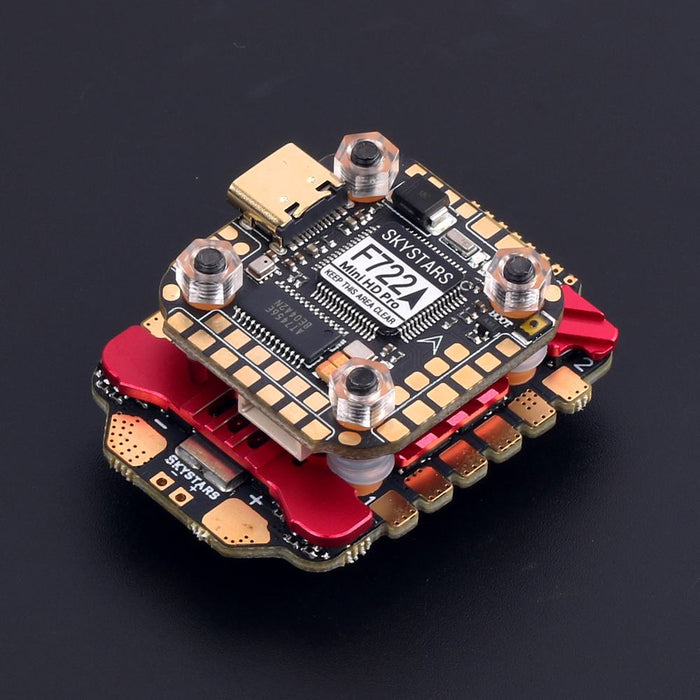

The SkyStars Fly Stack features an F722 Mini HD Pro Flight Controller and a Kramam 55A AM32 4-i-n1 ESC with a 20x20mm mounting pattern!

Check out all our Stacks and the rest of our Skystars Products!

Features:

  • Designed the LED installation position in the four corners,support WS2812 Programable LED.
  • Supports serial receivers (SBUS, iBus, Spektrum, Crossfire,) . Support 3.3V Satellite Receiver.
  • High-performance / low-noise / high sensitivity IMU. BMI with 6-axis gyro and accelerometer.
  • Support connect DJI HD air module.
  • Input voltage 12V-26V (3-6S)
  • TVS protect.
  • Automatic voltage monitoring.

Specifications:

F722 Mini HD Pro FC

  • F722FC
  • MCU: STM32F722RGT6 216MHz
  • IMU: BMI270 (SPI)
  • OSD: Betaflight OSD & DJI HD OSD (UART6)
  • 6 hardware UARTS (UART1,2,3,4,5,6)
  • 5V 2A & 10V 2A
  • Input Voltage: 3-6S Lipo
  • Blackbox: 16MB
  • Barometer: YES
  • Firmware: SKYSTARS F7HD
  • Dimensions: 35x28x7mm
  • Mounting Holes: Standard 20mm/M3 square to center of holes
  • Weight: 4.2g

KM55 55A AM32 4-in-1 ESC

  • voltage: 3-6S LiPo
  • Con.Current: 55A Peak
  • Current: 70A≥ 10S
  • Firmware: AM_32
  • Support : Dshot 600
  • Mounting hole : 20X20 mm/M3
  • BEC: No
  • Product size: 35*47*6.5mm
  • Weight: 16.5g

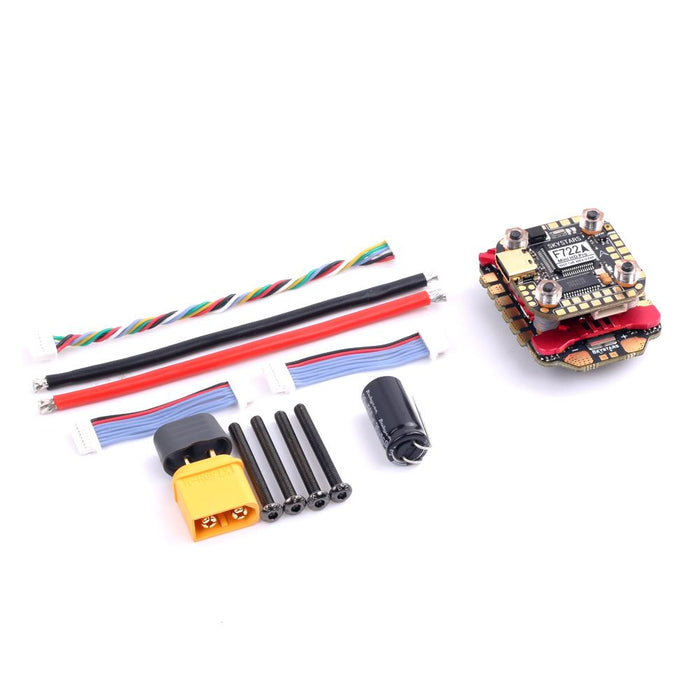

Package Includes:

  • 1x Skystars Kramam 55A AM32 32Bit 3-6S 20×20 4in1 ESC
  • 1x Skystars F722 Mini HD Pro Flight Controller 20×20mm
