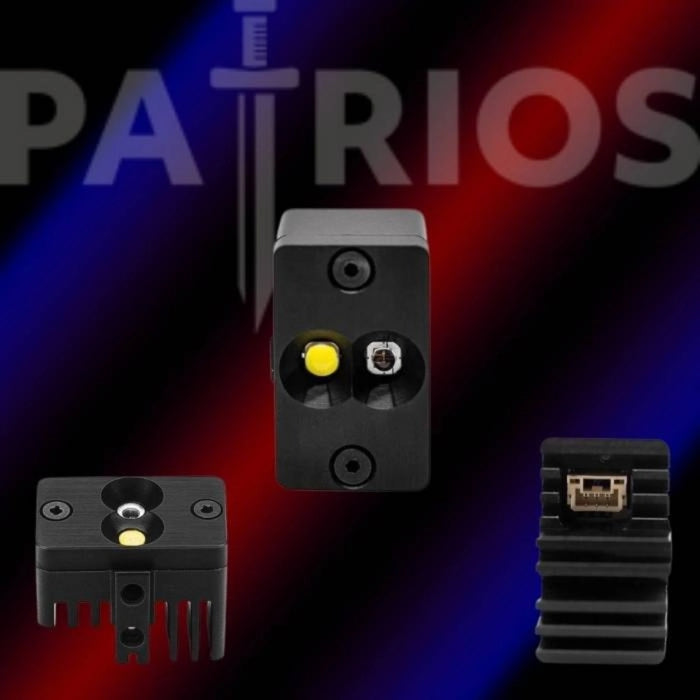

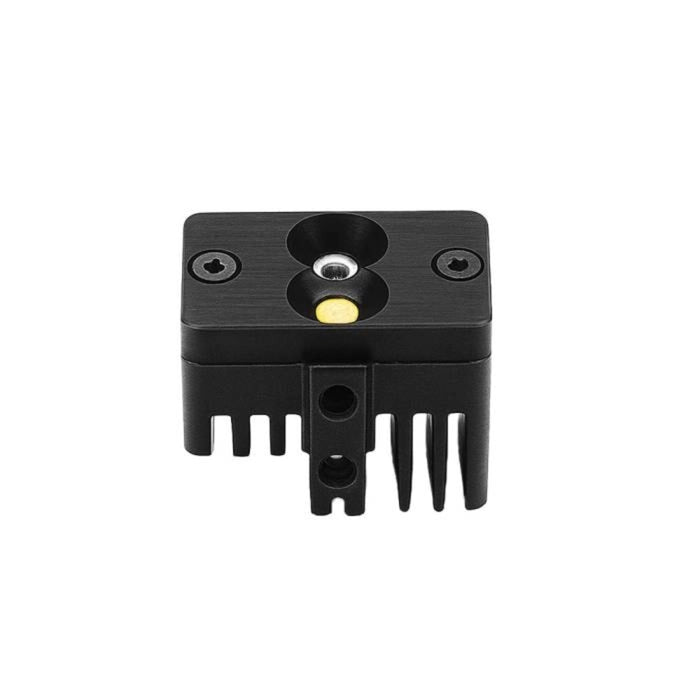

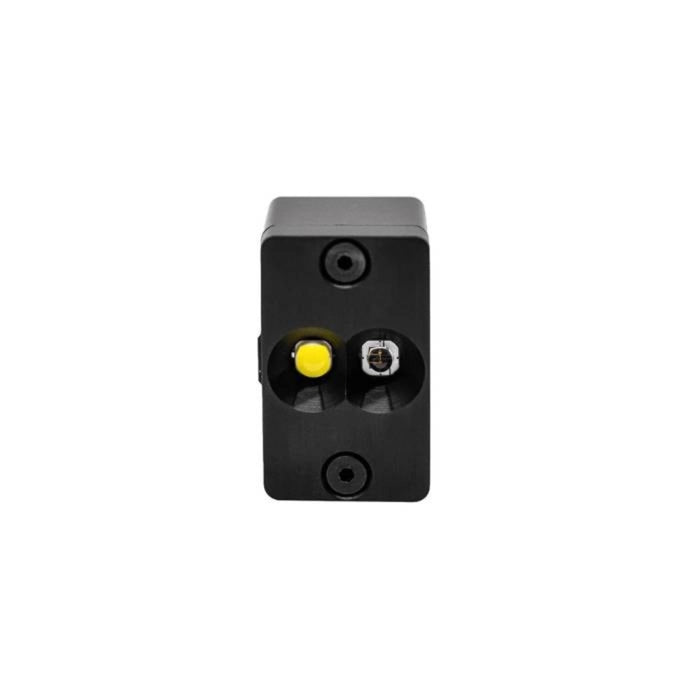

Patrios MicroBright 2-in-1 Tactical LED - NDAA

Patrios MicroBright 2-in-1 Tactical LED - NDAA

SKU 14500
Availability:
In stock
$349.99 - $349.99
$349.99
$349.99 - $349.99
$349.99


The US-made Patrios MicroBright 2-in-1 Tactical LED is ideal for low/no-light, internal & external clearance missions, eliminating the need for costly thermal cameras. At 1/2 the weight and 2/3 the size of the original tactical 2-in-1, the MicroBright produces 1.6x the IR illumination.

Check out all our Frame Parts and the rest of our Patrios Products!

Features:

  • High-output visible illumination and powerful 850nm IR
  • Half the weight and two-thirds the size of the original Tactical 2-in-1, with 66% more IR output
  • Small footprint makes it ideal for micro-UGVs, robots, UAVs, and vehicle integrations
  • Supports multiple brightness settings, IR steady with overt strobe, and multiple strobe speeds
  • Quick integration via JST-GH 3-pin connection
  • U.S. made


Specifications

  • Useful IR Range: 200m
  • Size: 15.5 × 25 × 19mm
  • Weight: 10.5g
  • Illumination:
    • IR (850 nm) 1,149 mW/sr
    • Overt 647 lumen
  • Color/Wavelength:
    • Overt: 5700K
    • IR: 850 nm
  • Viewing Angle:
    • Overt: 130°
    • IR: 90°
  • Input Voltage: 6V-30V, Recommend 12V-28V
  • Power: 0.5A continuous, 1.0A strobing (6–30V input)
  • Current Draw:
    • OFF: 2mA
    • ON: 5mA to 500mA (depending on specified brightness)
    • STROBE: 500mA to 2A, pulsed. Maximum power: 12W
  • Connection: JST-GH 3-Pin

Links

Package Includes

  • 1x Patrios MicroBright 2-in-1 Tactical LED
