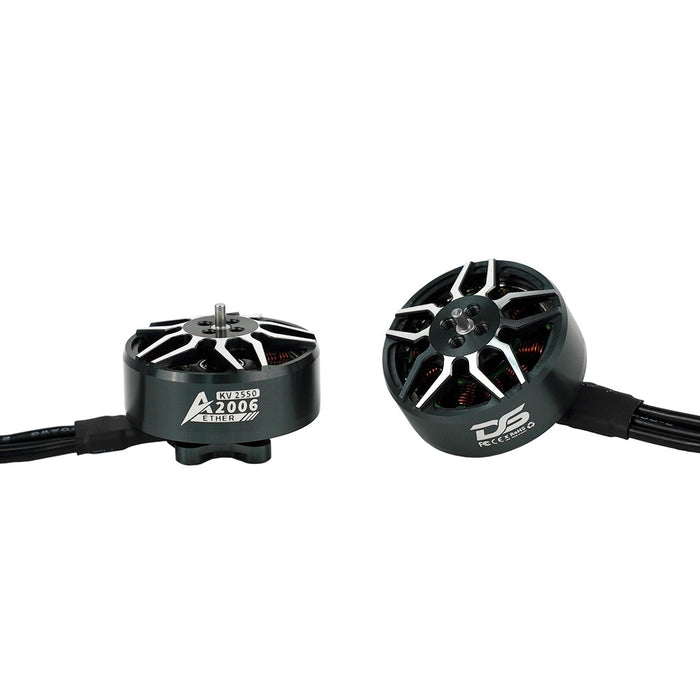

DeepSpaceFPV Aether 2006 6S 3.5inch FPV Brushless Motor - 2550kv

The DeepSpace Aether 2006 2550Kv is a carefully engineered powerhouse designed for pilots who demand speed, control, and reliability. This motor strikes a perfect balance between compactness and power delivery, making it ideal for 6S high-voltage applications where torque and responsiveness are critical. The unibell design and precision-balanced rotors significantly reduce vibration and noise, making it a standout choice for both aggressive freestyle and stable cinematic builds.

Check out all our 20XX Motors and the rest of our Motors Collection.

Features

• Unibell design for improved durability and impact resistance

• High-grade N52H-T neodymium magnets

• Precision-balanced rotors for reduced vibration and noise

• High-efficiency thermal design for cool operation during extended flights

• Pre-soldered 15cm 20AWG wires for easy installation

• Optimized for 3.5-inch to 5-inch frames

Specifications

• Model: Aether 2006

• KV: 2550KV

• Configuration: 12N14P

• Stator Diameter: 20mm

• Stator Length: 6mm

• Shaft Diameter: 1.5mm

• Motor Dimension: φ24.5*15.5mm

• Weight: 23.2g (including 15cm 20AWG wires)

• Idle Current (10V): 1.1A

• No. of Cells (Lipo): 4-6S

• Mounting holes: 12*12mm M2

Compatibility

• 3-3.5 inch Freestyle Drones and Cinewhoops (6S)

• 5 inch Ultralight FPV Drones (4S)

• 12x12mm M2 Mounting Pattern Frames

Package Includes

• 1 x DeepSpace Aether 2006 2550KV Motor

• 1 x Screw Set (M2 Hardware)

Critical Notes

• Always verify that the mounting screws are not making contact with the motor windings, especially on thin carbon fiber arms.

• The 2550KV rating is optimized for 6S voltage on 3.5" props; ensure your ESC and battery selection match the intended propeller load to avoid overheating.

• Ensure the 1.5mm shaft diameter is compatible with your chosen propeller hub size (T-mount).
