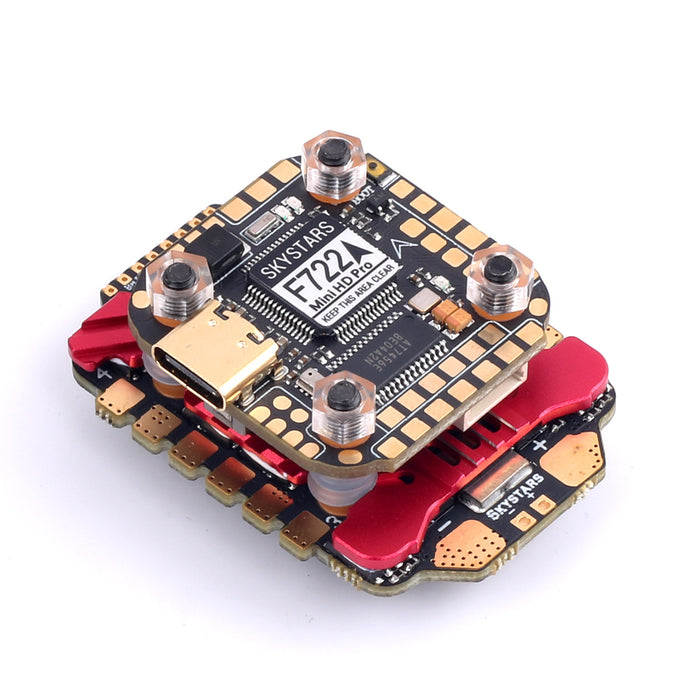

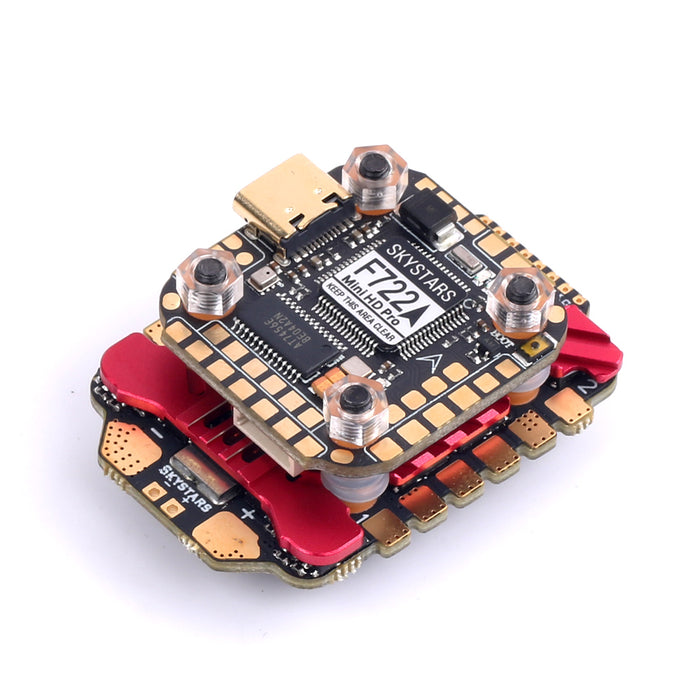

Skystars F7 Mini HDPro Flight Controller F722 + AM55 55A AM32 3-6S 4-in-1 ESC - 20x20mm

SKU I4-13851
Availability:
in stock
Original price $126.99 - Original price $126.99
Original price
$126.99
$126.99 - $126.99
Current price $126.99


The SkyStars Fly Stack features an F722 Mini HD Pro Flight Controller and the AM55 55A AM32 4-i-n1 ESC with a 20x20mm mounting pattern!

Check out all our Stacks and the rest of our Skystars Products!

Features:

  • Designed the LED installation position in the four corners, supporting WS2812 Programable LED.
  • Supports serial receivers (CRSF, SBUS, iBus, Spektrum). Support 3.3V Satellite Receiver.
  • High-performance / low-noise / high-sensitivity IMU. BMI270 with 6-axis gyro and accelerometer.
  • Support connect DJI HD air module.
  • Input voltage 10V-26V (3-6S)
  • TVS protect.
  • Automatic voltage monitoring.

Specifications:

F722 Mini HD Pro FC

  • MCU: STM32F722RGT6 216MHz
  • IMU: BMI270 (SPI)
  • OSD: Betaflight OSD & DJI HD OSD (UART6)
  • 6 hardware UARTS (UART1,2,3,4,5,6)
  • 5V 2A & 10V 2A
  • Input Voltage: 3-6S Lipo
  • Blackbox: 16MB
  • Barometer: YES
  • Firmware: SKYSTARS F7HD
  • Dimensions: 35x28x7mm
  • Mounting Holes: Standard 20mm/M3 square to center of holes
  • Weight: 4.2g

AM55 55A AM32 4-in-1 ESC

  • 55A 4IN1 ESC
  • voltage: 3-6S LiPo
  • Con.Current: 55A Peak
  • Current: 70A≥ 10S
  • Firmware: AM_32
  • Support : Dshot 600
  • Mounting hole : 20X20 mm/M3
  • BEC: No
  • Product size: 35*47*6.5mm
  • Weight: 16.5g

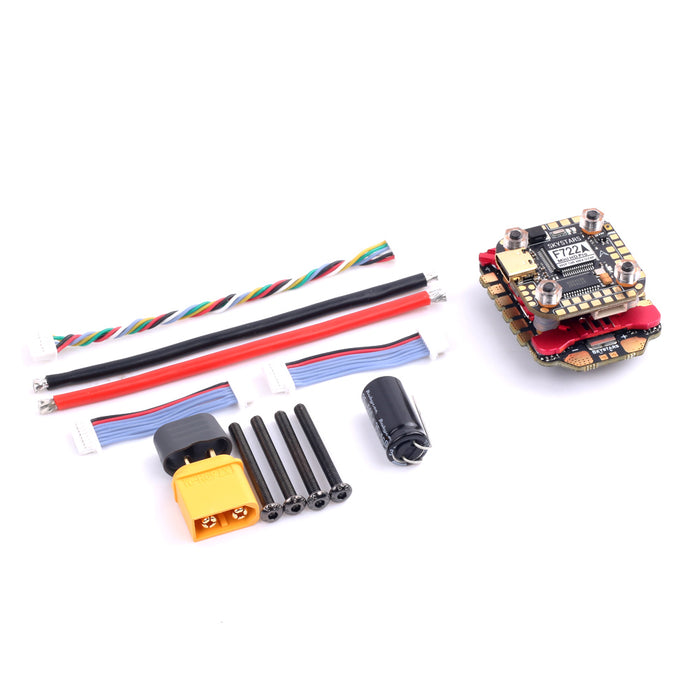

Package Includes:

  • 1 x Skystars Fly Stack - F722 Mini + AM55 55A AM32 3-6S 4-in-1 ESC
