PYRODRONE PYROPATCH 5.8G DUAL PATCH ANTENNA FOR FAT SHARK

PYRODRONE PYROPATCH 5.8G DUAL PATCH ANTENNA FOR FAT SHARK

SKU A4-7363-L
Availability:
in stock
$20.90 - $20.90
$20.90
$20.90 - $20.90
$20.90

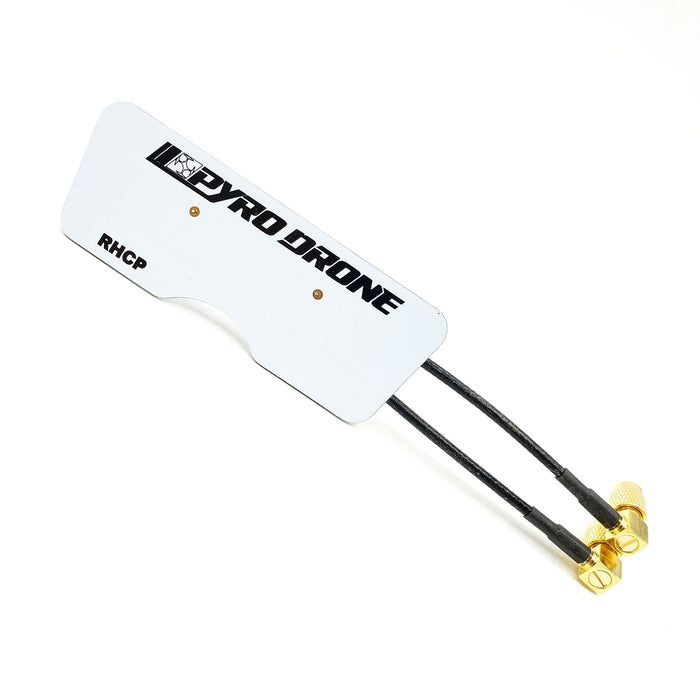

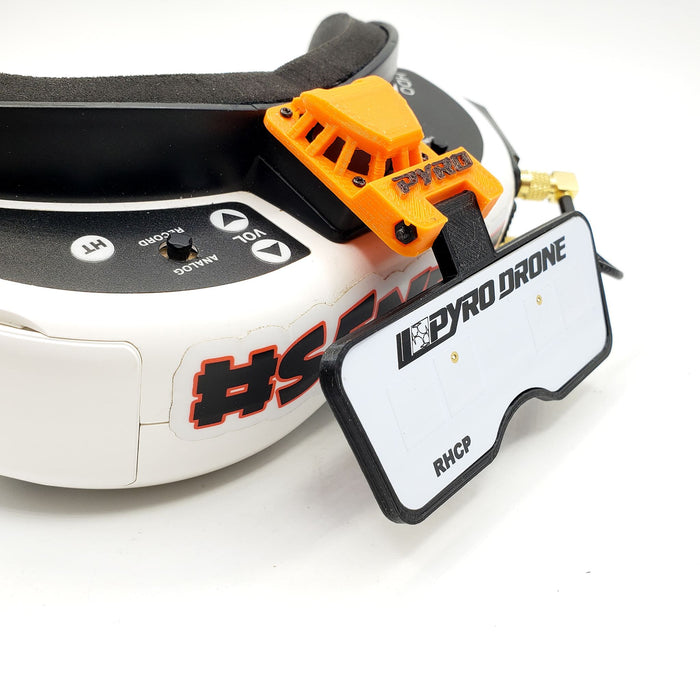

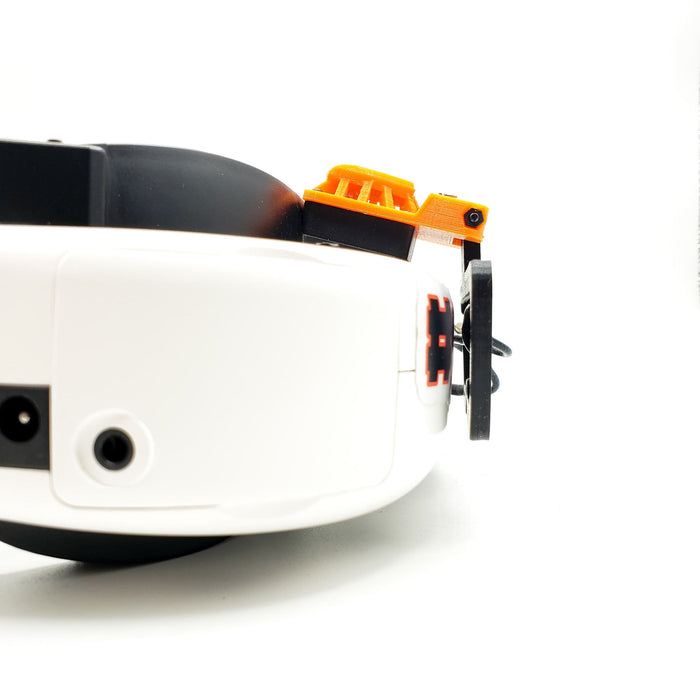

The Pyropatch is a compact and innovative antenna solution for Fatshark goggles. The dual elements RF patch is designed. assembled, and tested by TrueRC.
It is the first FPV antenna to feature static beam steering.
The two CP antennas direct their beam at 20deg left and right from a single flat panel instead of relying on two separate angled patches.
This helps keep a more affordable and lower profile than what is offered so far.



The Pyropatch antenna is also available to be purchased as a stand alone ANTENNA ONLY for those who like to print the mount themselves or even use the antenna for different projects.

If buying one of each polarization, we highly recommend to buy one full set and one antenna ONLY, as to switch antennas from RHCP to LHCP is pretty easy by popping the antenna out of its sleeve without having to remove any screws.

Specifications:
-Gain: 6Dbic @20deg from boresight on each side.
-Bandwidth: 5500-6000MHz
-Combined Beamwidth(-3dB): 100deg horiz. 60deg vert.

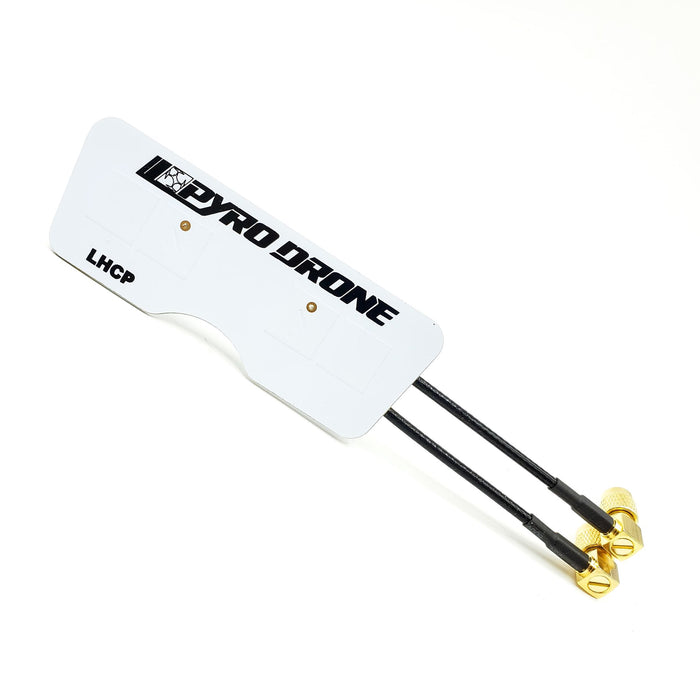

-Polarization: RHCP or LHCP

Features:

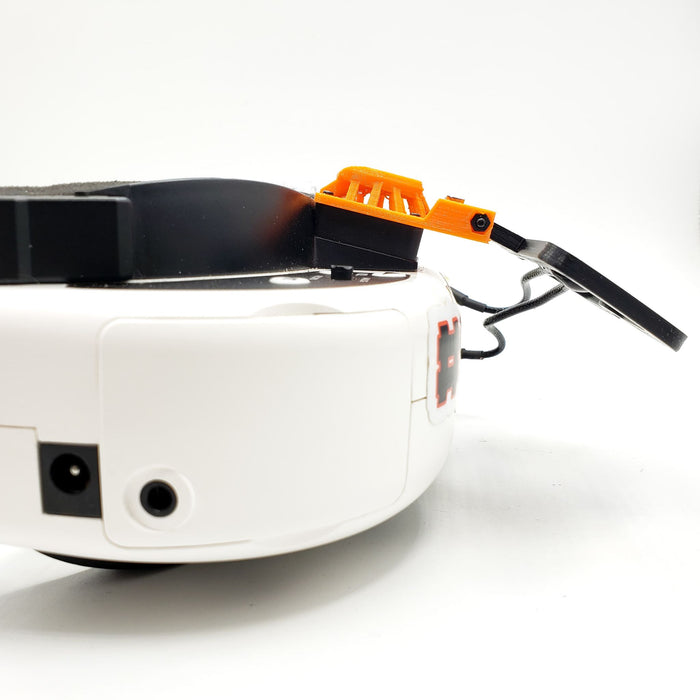

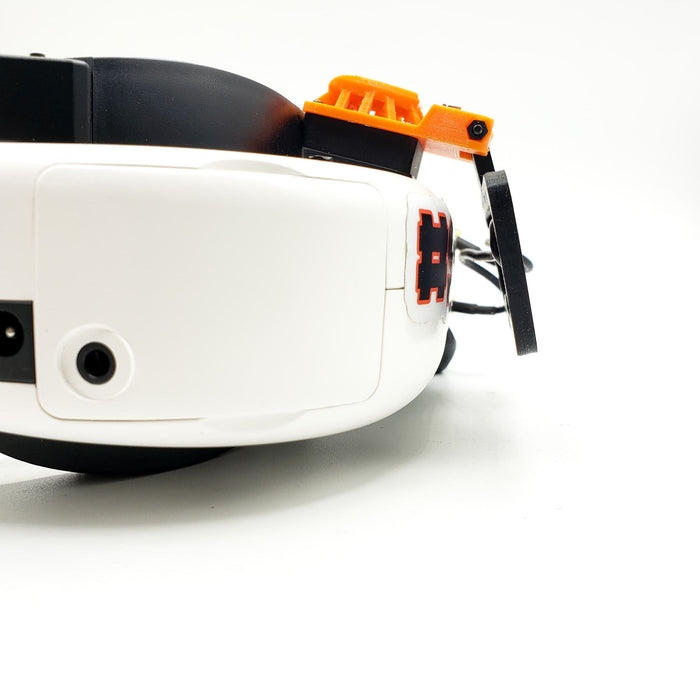

· Tilting panel so pilot can look down while still pointing the antenna at the action.
· Extremely low profile and weight: 18g (ant only), 26g (full setup)

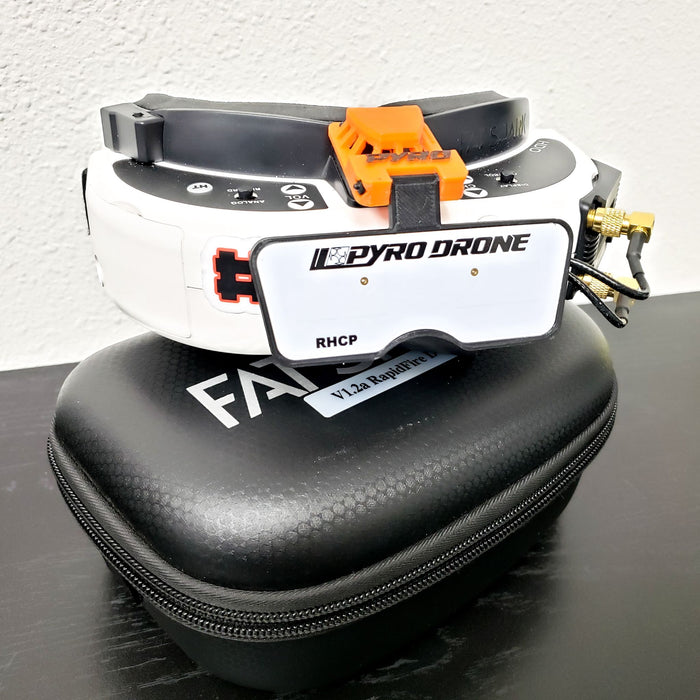

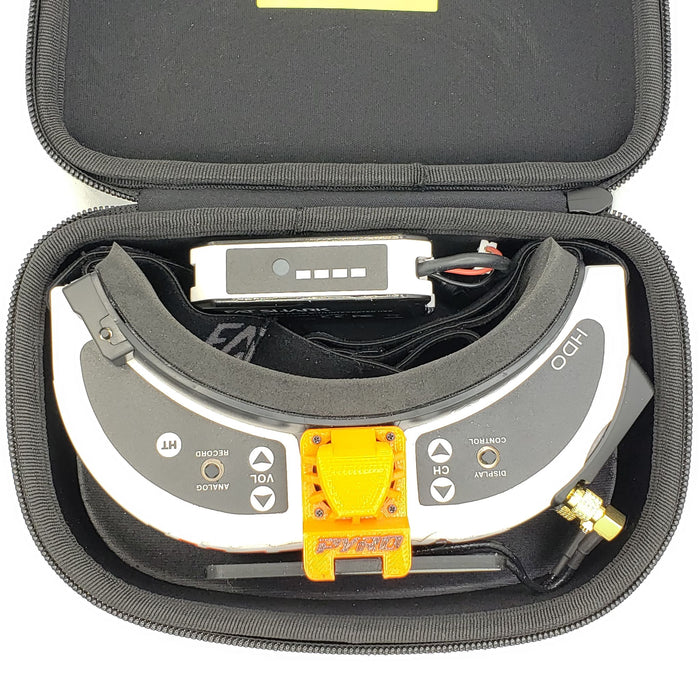

· Fit nicely in stock goggle case.

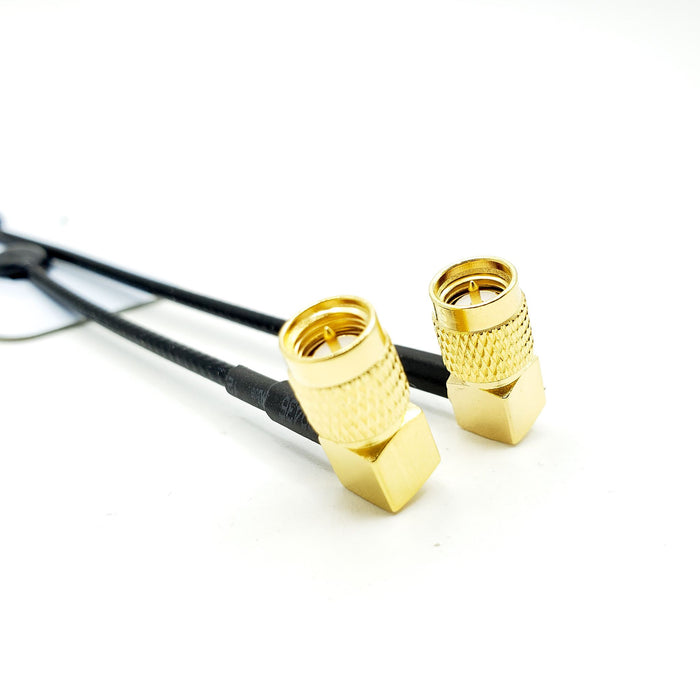

· High quality True-SMA connectors.
· High quality custom TrueRC coax cables.
· 40deg beams divergence for wide coverage.
· Excellent for advanced diversity module IE: IRC Rapidfire & TBS Fusion.

Includes:
1 x Pyropatch Antenna (choose polarization from the drop down menu above)
1 x Base piece (part that replaces your current Fatshark fan cover)
1 x Antenna Sleeve
1 x M2*25mm bolt
1 x M2 plastic nut

Overall rating: 4.6949153 / 5 from 59 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["quality","shipping","performance","looks","fit","setup","design","price","works","antenna","patch","receiver","range","picture","stick","issues","form factor","unit","goggles","penetration","flight","signal","panels","fly","idea"].

Review highlights

Reviews

Pyropatch

"Works ok for short field play . Def feels like two patches. I’ve switched over to true rc"

— Troy H. (4/5)

Great Antenna and a must have for racing!

"Great Antenna and a must have for racing! I now have a right and left hand polarized set!"

— Mark G. (5/5)

Pyro rocks

"Shipping is on point fast and exactly what I ordered what more can I say pyro drones rocks"

— Donald A. (5/5)

Good antenna/ wrong color

"The antenna works good so far just not happy that I thought I was geting a black mount but when I opened the package it was a baby blue color. If your going to sell something, make sure the picture accurately reflects the product. If i would of known that I would of gone w a different setup."

— Adam (3/5)

Great fit

"Great patch that fit my fatsharks"

— Rowell R. (5/5)

Functionable, Form Fitting, Awesome

"This Pyro Drone patch works great for me the reception is great, and fits like a glove on my HDO2's the form factor is beautiful and what is also awesome about it is it snaps to gather so you don't have to remove any screws or mount, the antenna plate if you will pops out of the black frame if you need to remove it to attach different antennas. The antenna wires are a little stiff but seem to hold up and it stays where I angle it and the bolt was a little fussy to get through but in the end I did succeed. As Always I'm Very Please With PRYO DRONE"

— Robert T. (4/5)

Nice fit...

"Great performance so far. Install it and leave it since it fits in the goggle case without having to removed or reconfigure the antenna connection. Crystal clear reception equals crystal clear video image."

— Craig B. (5/5)

Great low profile patch with

"Great low profile patch with good range and it fits in the stock Fatshark case. What more can you ask for."

— Jesse H. (5/5)

great product. awesome.

"great product."

— Bearomey R. (5/5)

Convenience and strong for a great price!

"Got some good reach! Flying in an opem field this did amazing just on 25w but when around buildings it was better if it had line of sight connection but still held its own!"

— David G. (5/5)
