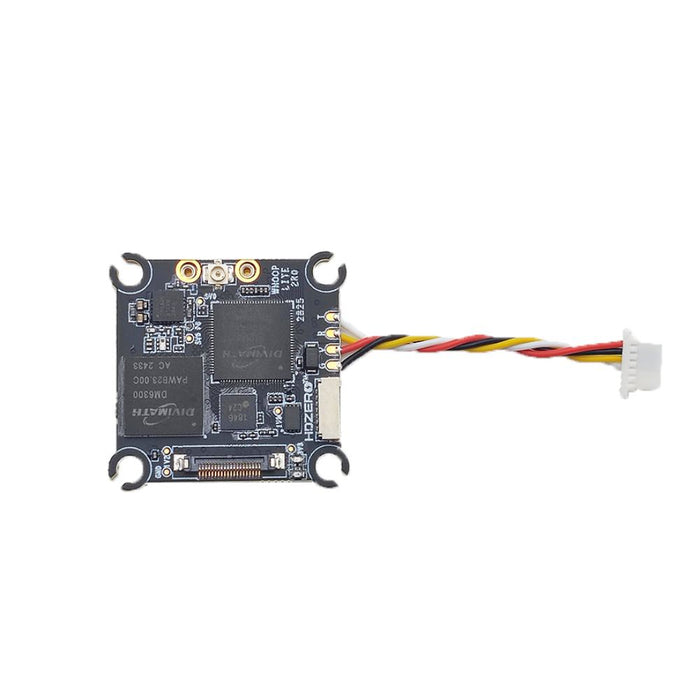

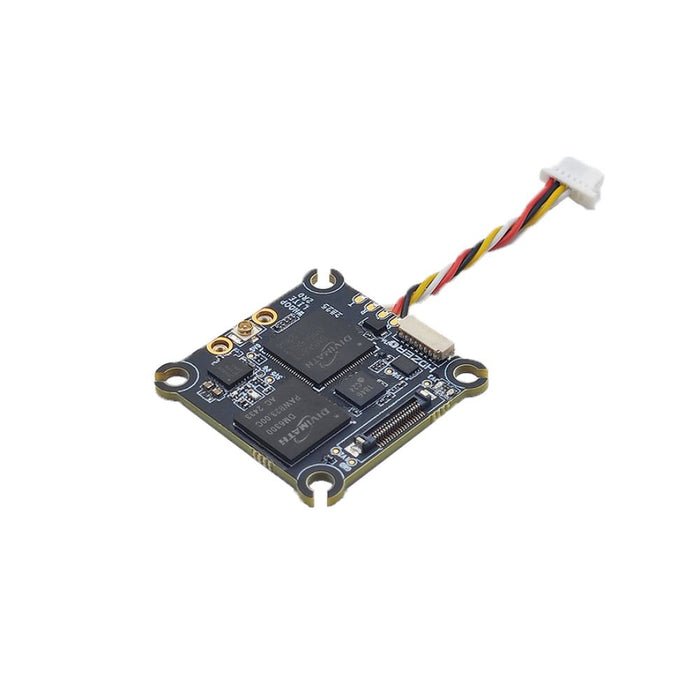

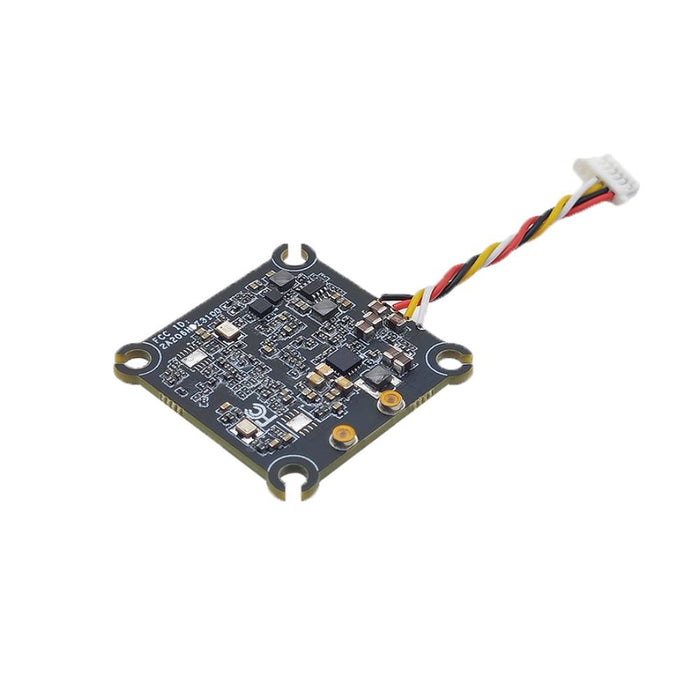

The HDZero Whoop Lite V2 VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. It is designed for racing. It works with the Shark Byte RX5.1 goggle module to receive video.
Check out our HDZero Compatible Gear and the rest of our HDZero Products!
Specifications:
|
Model:
|
HDZero Whoop Lite V2 VTX
|
|
SKU:
|
HDZ3103
|
|
Frequency:
|
5.8G
|
|
Resolution Default:
|
1280*720@60fps
|
|
RF power:
|
25mw/200mw
|
|
RF Connector:
|
U.FL
|
|
Interface:
|
4 lane MIPI CSI YUV422
|
|
Video Connector:
|
20 Position 0.30mm Pitch
|
|
Size:
|
31x31mm (29x29mm inner)
|
|
Weight:
|
5.4grames/4mm Thickness (w/o shielding)
|
|
Power:
|
1000mA@5V
|
|
power input
|
1S-3S
|
|
Mounting:
|
25.5x25.2 M2 soft mounting
|
Package Includes:
- 1 x HDZero Whoop Lite V2 VTX
- 5 x Power/Uart Cable
- 2 x Zip ties
- 4 x Rubber Grommet (M3 to M2)
- 4 x u.FL Antenna Retention Screws
- 1 x Metal bar
Laws and requirements regarding transmission of radio waves vary greatly across the world.
In some countries, this product may not be legal. In the USA, the operator of this product is required by law to have a
HAM amateur radio license, at the very least.
It is the operator's responsibility to make sure that they are using this product in a legal manner, or not using it at all if not possible to do legally in their location.
By adding this product to your cart, you are confirming that you have read this notice, and that Pyrodrone is in no way responsible for the actions of the operator while using this product.
Warranty Policy:
If any warranty needs for this product arise, please note that the manufacturer of this product is one of the few manufacturers we carry that requests the end user to contact them directly for any troubleshooting or possibly defective items.
We must follow these policies set by these manufacturers. Please make sure to contact them directly if you feel your product is defective in any way.
Reach out to us if you need an email address or contact link for this manufacturer.
