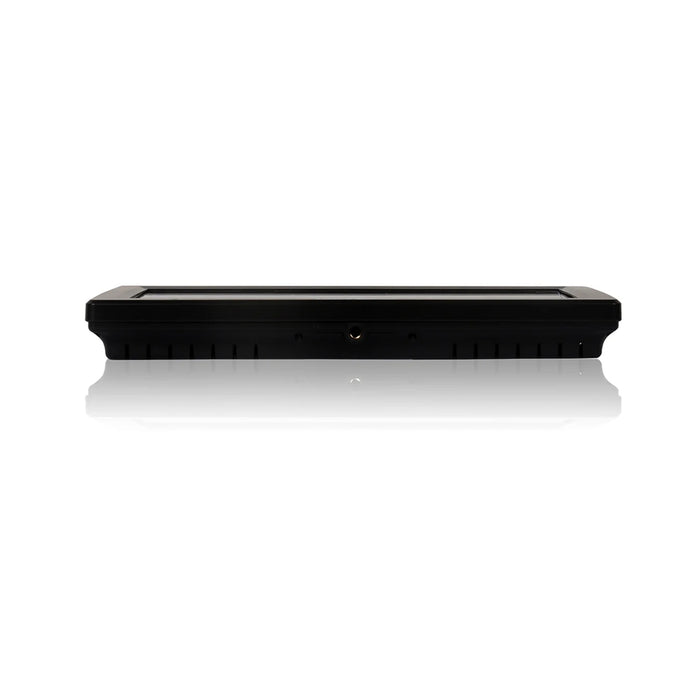

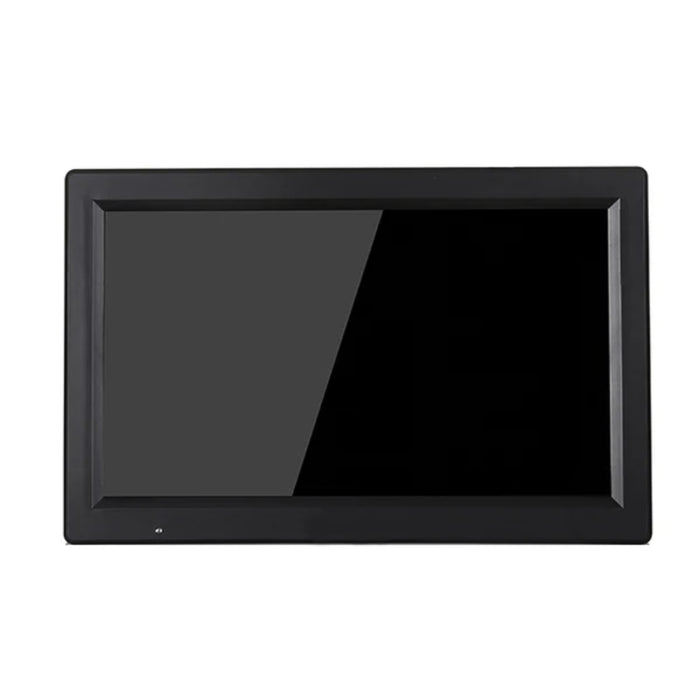

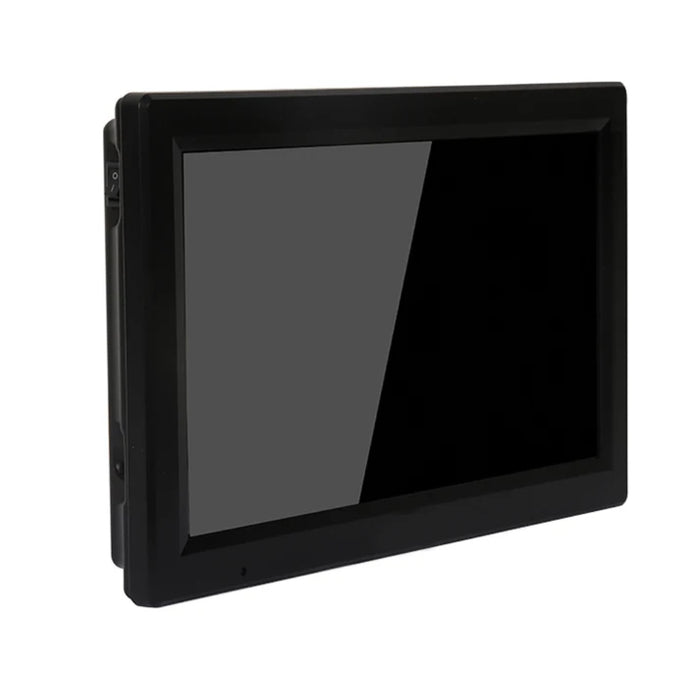

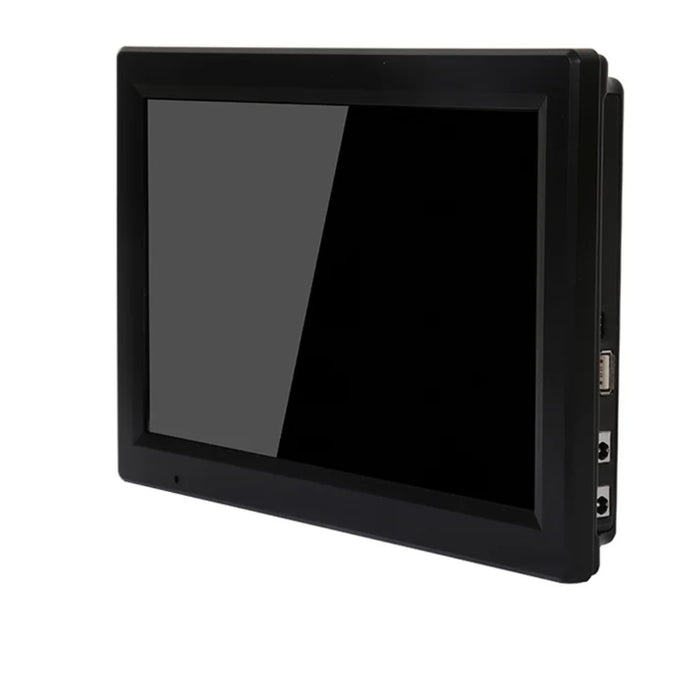

Hawkeye Captain H 10.2" FPV Monitor with DVR

The Hawkeye 10.2" FPV Monitor features an ultra-bright 1000 Lux LED display, an integrated DVR recorder, and dual 5.8 GHz diversity receivers. Designed for clear, low-latency FPV video output, this monitor supports high-definition video input via HDMI, wide input voltage support for 3S–6S batteries, and auto/manual channel scanning to deliver a reliable, real-time video feed without screen blackout or blue-screen signal drops.

View our selection of Goggles & Monitors.

Features:

• Ultra-bright 1000 Lux 10.2-inch LED display designed for high visibility in direct sunlight.

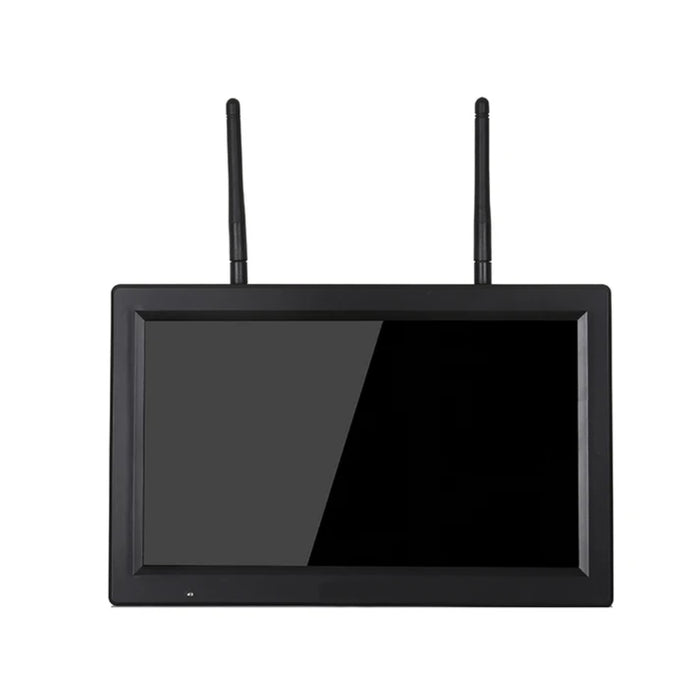

• Integrated dual 5.8 GHz diversity receiver system for maximum signal stability and interference reduction.

• Built-in DVR function allowing real-time flight recording directly to a TF/SD card without video latency.

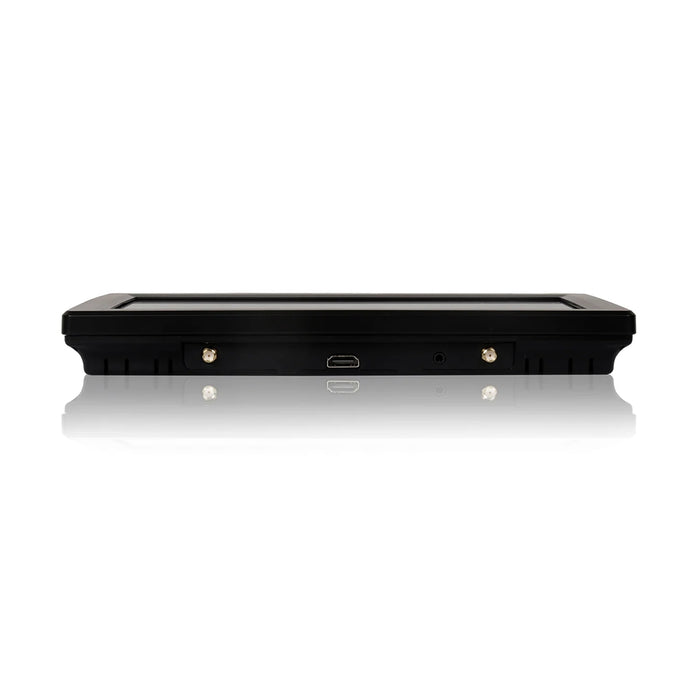

• High-definition HDMI input alongside traditional analog AV input and output connections.

• Wide voltage input range supporting 3S to 6S LiPo power supplies with built-in cooling fans.

• Auto and manual channel scanning capability to eliminate manual DIP switch configurations.

• Zero-delay real-time video processing designed to prevent blue or black screens during signal loss.

Specifications:

• Screen Size: 10.2 inches LED

• Resolution: 1024 × 600 pixels

• Aspect Ratio: 16:9

• Brightness: 1000 Lux

• Response Time: 10 ms

• Color System: PAL / NTSC

• Input Voltage: 10V – 26V (3S–6S LiPo)

• Current Consumption: 1.3A @ 3S / 600mA @ 6S

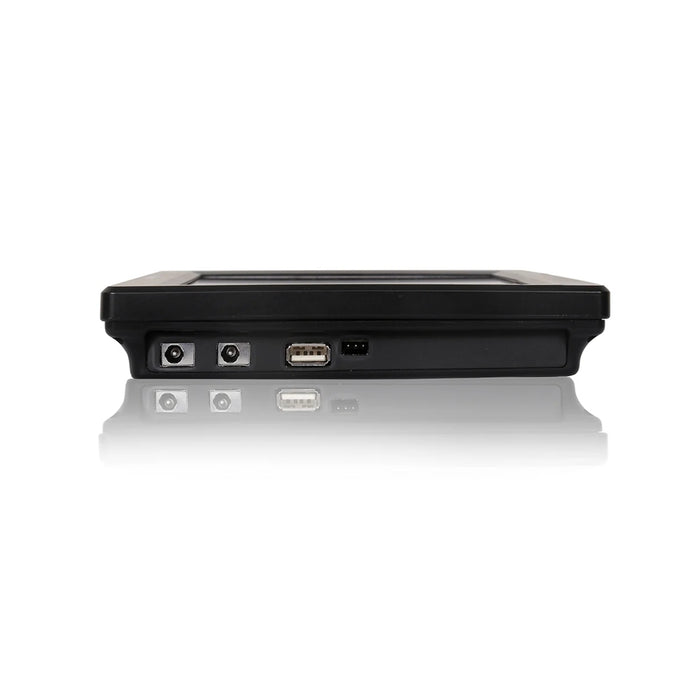

• Auxiliary Power Output: USB 5V / 1A (when input voltage is > 12V)

• Video Inputs: HDMI, AV (PAL/NTSC)

• Video Output: AV

• Receiver Sensitivity: -99 dB

• Receiver Antenna Interface: SMA female

• DVR Recording Resolution: D1 / VGA / QVGA

• Storage Support: MicroSD / TF Card up to 64GB (Class 10)

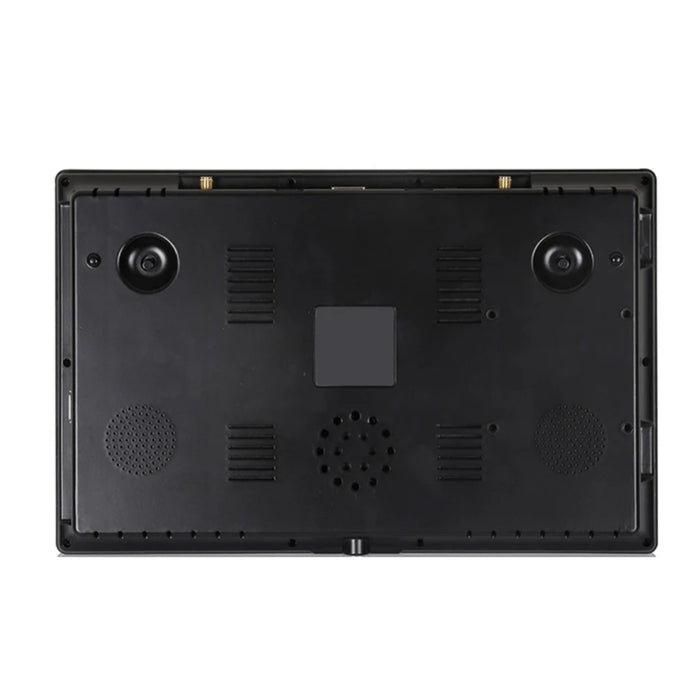

• Mounting: Standard 1/4" tripod mounting thread

• Dimensions: 265 mm × 170 mm × 31 mm

• Weight: 1.13 kg

Download the Manual here

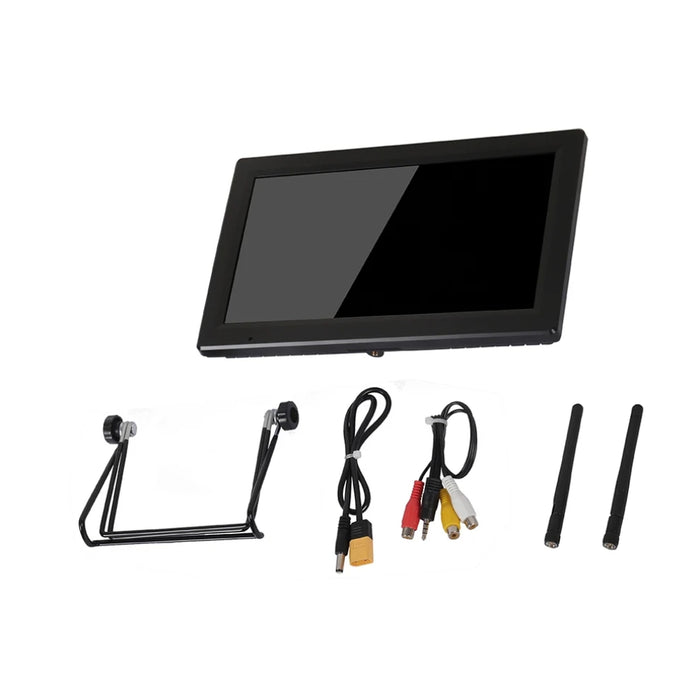

Package Includes:

• 1 x Hawkeye 10.2" FPV Monitor

• 2 x 5.8 GHz SMA Antennas

• 1 x Monitor Stand / Bracket

• 1 x Power Cable

• 1 x AV Cable
