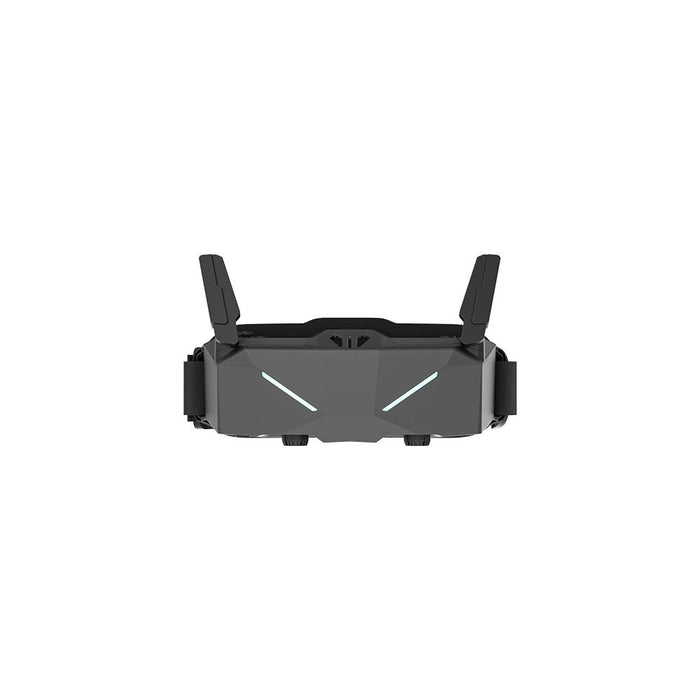

iFlight Skyviz FPV Analog goggles with a built-in fusion receiver

iFlight Skyviz FPV Analog goggles with a built-in fusion receiver

SKU W4-14233
Availability:
in stock
$599.99 - $599.99
$599.99
$599.99 - $599.99
$599.99


The Skyviz Goggles are the first mecha-style, highly integrated FPV Analog goggles with a built-in fusion receiver and foldable antenna design, offering a compact and ergonomic layout.

The minimalist UI and intuitive controls enhance the user experience, while dual Micro-OLED displays (100Hz refresh rate) deliver ultra-smooth, crystal-clear visuals.

Featuring a 7-element aspherical lens system, the Skyviz Goggles provide sharp, distortion-free images with no screen-door effect, adapting seamlessly to any diopter setting for unparalleled immersion.

Check out all our Goggles and Monitors Collection and the rest of the iFlight Products!


Features:

  • Uncompromised Visual Performance
  • Engineered with dual 100Hz Micro-OLED displays and a 7-element aspherical lens system, the goggles deliver stutter-free, high-fidelity imagery with zero screen-door effect. Customize your view with diopter adjustment (-7D to +2D) and IPD tuning (56-72mm) for universal comfort.
  • Modular Receiver & Input Flexibility
  • It uses an integrated receiver for high-quality image transmission and also supports third-party receivers. Compatible with VRX, AV, and HDMI input modes, it adapts to various usage scenarios.
  • Customizable Display Settings
  • Tailor visuals with Race/Freestyle FOV modes, focus chart-assisted calibration, and granular image settings (brightness/contrast/color/sharpness). Toggle between 16:9 and 4:3 aspect ratios to match your feed.
  • Enhanced Usability Features
  • The DVR recording and playback function with adjustable settings, voltage display and calibration, and a multilingual interface in Chinese and English improve practicality.
  • Comfort & Customization
  • Manual control of the fan switch and speed provides comfort during long-term use, and the option to customize LED colors adds a personalized touch to the goggles' appearance.


Specifications:

  • Product Name: Skyviz Analog Goggles
  • Weight: Approx. 300grams（headband included）
  • Dimensions (L×W×H): L174.5 * W101.6 * H69.5mm(Antenna folding)
  • Screen Size (single screen): 0.49-inch
  • Resolution (single screen): 1920×1080
  • Refresh Rate: 100 Hz(Max)
  • Interpupillary Distance Range: 56-72 mm
  • Diopter Adjustment Range: -7.0 D to +2.0 D
  • FOV (single screen): 44°
  • Aspect Ratio: 16:9/4:3
  • Receiver: Built-in receiver
  • Language: Chinese and English
  • Power interface: DC4.5
  • HDMI-IN: Micro HDMI
  • AV-IN 3.5mm
  • Headphone jack: /
  • DVR format: MP4
  • DVR frame rate: 30FPS (CVBS)
  • Antenna: Omnidirectional linear polarization antenna
  • Operating Temperature Range: -10°C to 40°C (14°F to 104°F)
  • Power Input: 2-6S
  • Supported SD Cards: microSD (up to 64 GB)


Package Includes:

  • 1 x Skyviz Goggles
