Holybro M9N GPS Module IST8310 - Standard 10-Pin

Holybro M9N GPS Module IST8310 - Standard 10-Pin

SKU M2-14521
Availability:
in stock
$74.99 - $74.99
$74.99
$74.99 - $74.99
$74.99

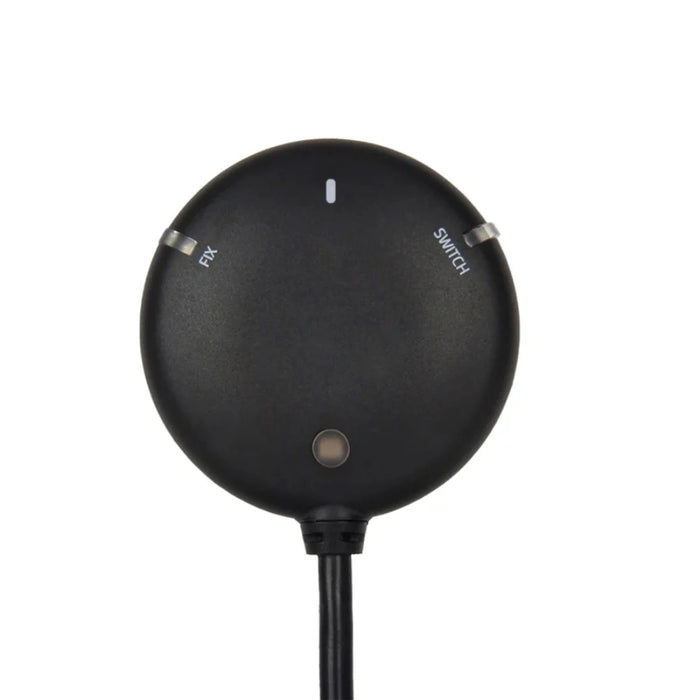

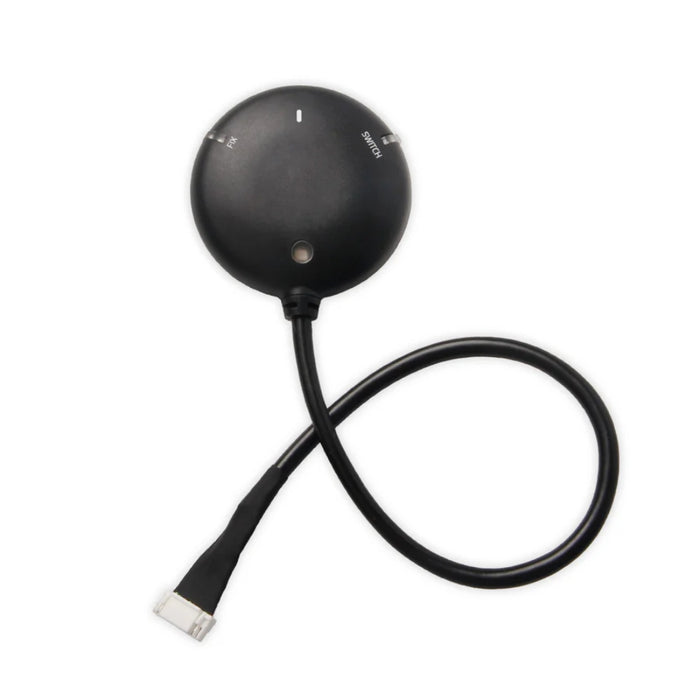

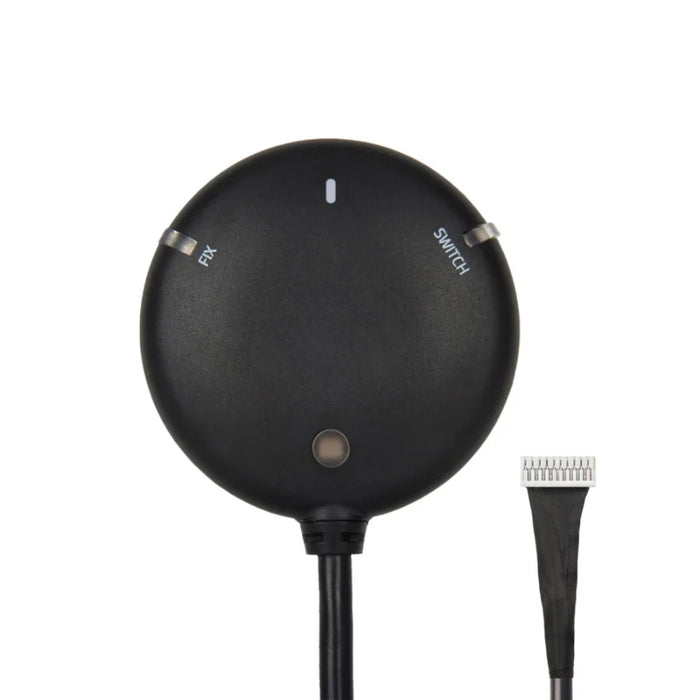

The M9N GPS uses multi-constellation GNSS powered by u-blox M9N, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS, Galileo, GLONASS and BeiDou can be received concurrently. It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. This module ships with a baud rate of 115200. The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna and a rechargeable backup battery for warm starts

Checkout all our Flight Controllers and the rest of our Holybro Collection!

Reference Links:

Features

  • Ublox M9N GNSS Receiver

  • Accurate Positioning

  • Fast Navigation Update Rate

  • IST8310 Compass

  • High-gain 25 x 25 x 4mm antenna

  • Internal Buzzer and Safety switch

  • Ultra Bright UI RGB LED

Specifications

  • GNSS Receiver: Ublox M9N

  • Number of Concurrent GNSS: Up to 4 GNSS (BeiDou, Galileo, GLONASS, GPS, QZSS)

  • Compass: IST8310

  • Output Protocol: UBX (U-blox), NMEA

  • Accuracy: 1.5m CEP

  • Nav. Update Rate: Up to 25 Hz

  • Default Baud Rate: 115200

  • Input Voltage: 4.7-5.2V

  • Connector Type: JST-GH-10pin

  • Antenna: 25 x 25 x 4 mm ceramic patch antenna

  • Antenna Gain: 1.5dbi

  • Power consumption: Less than 200mA @ 5V

  • Operating Temperature: -40 to 80°C

  • Dimension: 50 x 14.4 mm

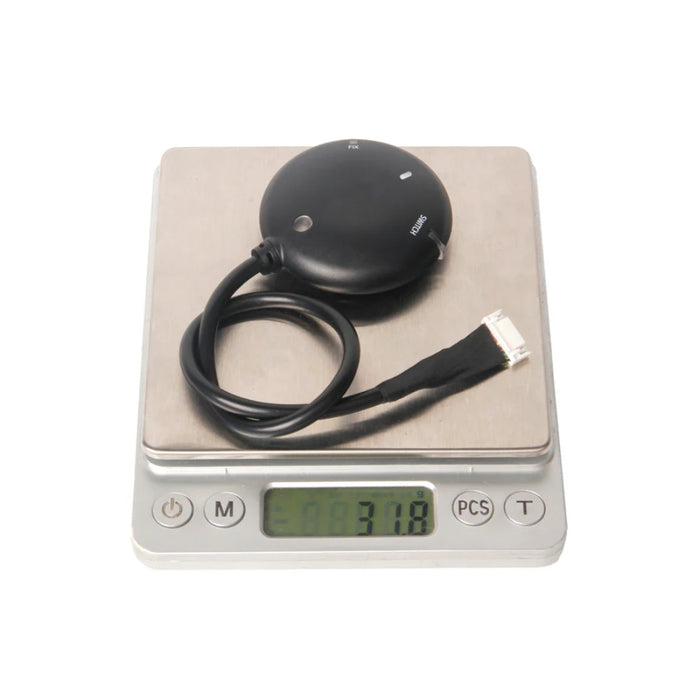

  • Weight: 32g

Compatibility

  • PX4 1.14 or newer

  • ArduPilot 4.4.0 or newer

  • Pixhawk Series 10-pin GPS Module or GPS1 input ports

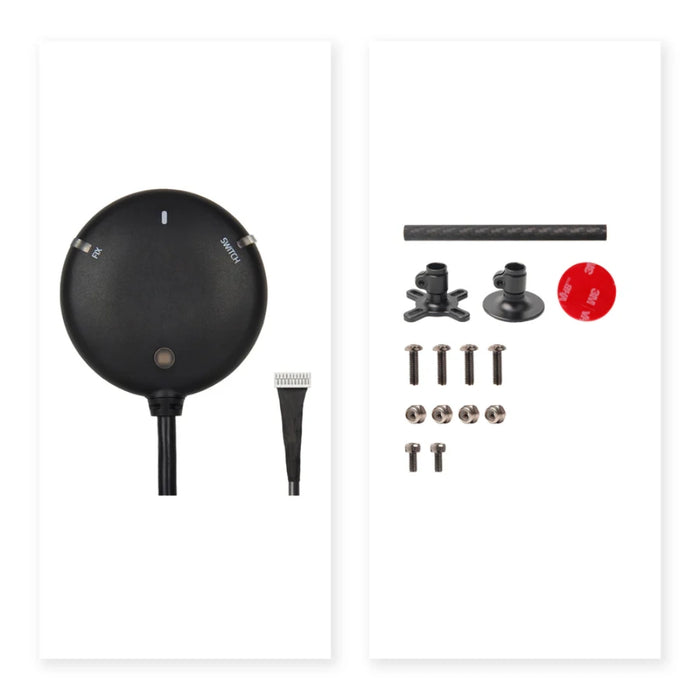

Package Includes

  • 1 x M9N GPS Module

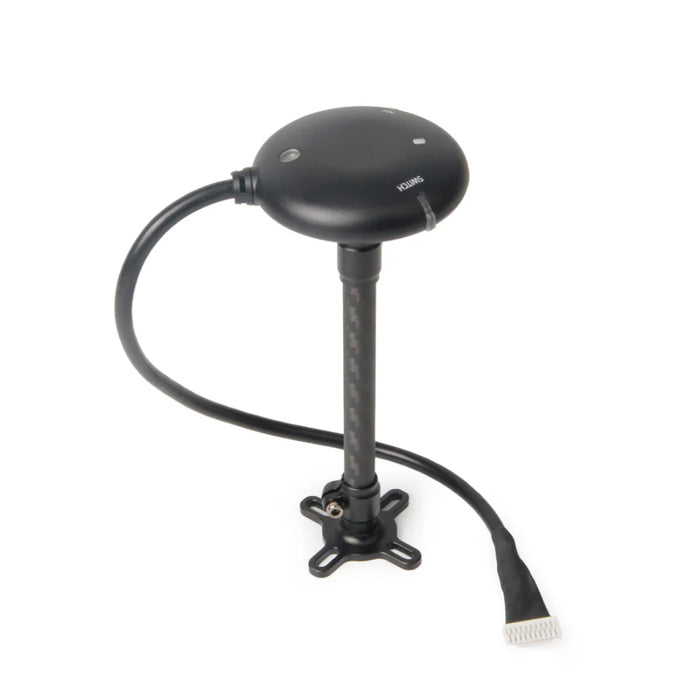

  • 1 x 'X' type folding pedestal mount

  • 1 x Carbon rod 70mm

  • 1 x Carbon rod 140mm
