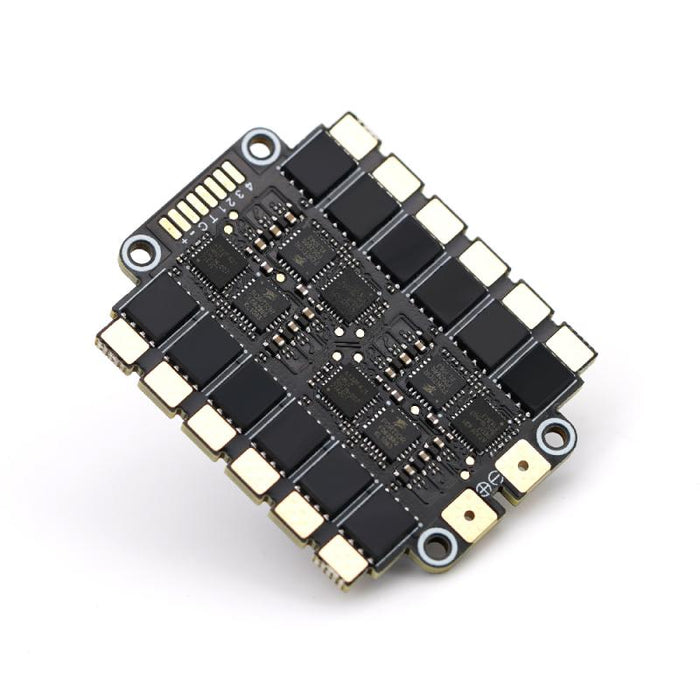

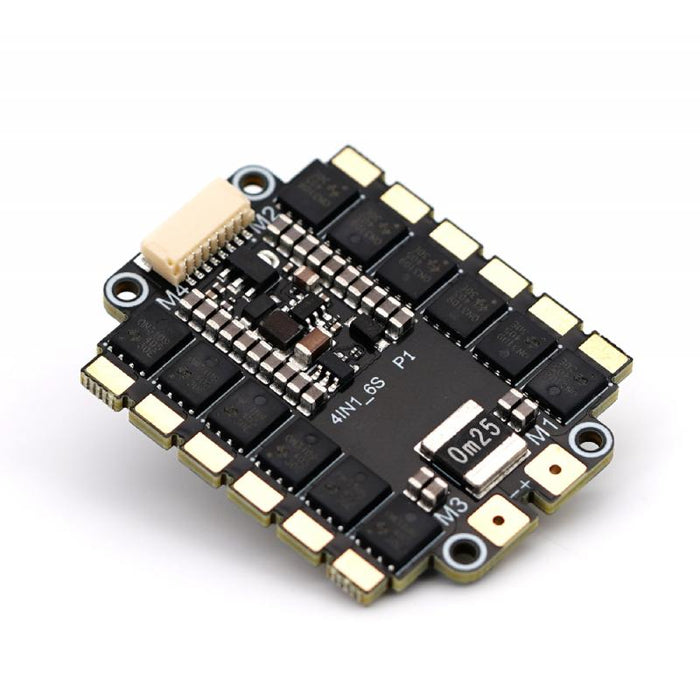

TBS Lucid 3-6S AM32 60A 4in1 ESC

Regular price $54.95 Sale

Availability: Available Unavailable

Product SKU: J3-13490

Product Details

The TBS Lucid flight stack is the latest in product engineering at TBS. Built for racing and freestyle applications and developed to cater to the needs of both seasoned pilots and enthusiastic newcomers.

Featuring an 8 layer high current density board with twice the market average on-board capacitance, the ESC is built to withstand the harshest punishment of everyday FPV flying while delivering buttery-smooth flight characteristics paired with face-melting acceleration. By focusing on thermal dissipation from the ground up, the flight stack achieves excellent power to weight density without the need of heavy heat sinks.

A close collaboration with AM32 allowed us to squeeze the last bit of performance without breaking the bank.

Check out all our Electronic Speed Controllers and the rest of our TBS products!



GORILLA MOUNT:

Superior power delivery is additionally achieved by the innovative mounting brackets which avoid the complication of having to run mounting bolts through the middle of the ESC. We call this the "Gorilla" mount.

Frame developers are encouraged to integrate the gorilla mounting pattern into their new and upcoming frames. Backwards compatibility is provided through mounting brackets.

TBS Gorilla 20x20mm Stack Mounting Adapter

TBS Gorilla 30x30mm Stack Mounting Adapter



Specifications:

  • ESC software:    AlkaMotors32 (AM32)
  • ESC target:    tbslu6s4in1
  • Rated current:    60A x 4, 300 seconds
  • Peak Current:    70A x 4, 60 seconds
  • Propellers:    Up to 9", over 7" requires good airflow
  • Input:    3-6S Lipo
  • Protocol:    Bi-directional Dshot 300/600), KISS ESC Telemetry
  • ESC Current port:    Yes
  • BEC:     No
  • Size:    34mm*44mm
  • Mounting: Gorilla-mount (39.5 x 16.0mm) or brackets for 20x20 mm, 30.5x30.5 mm
  • Weight:    13.81g, 19g incl. brackets


DOWNLOADS:

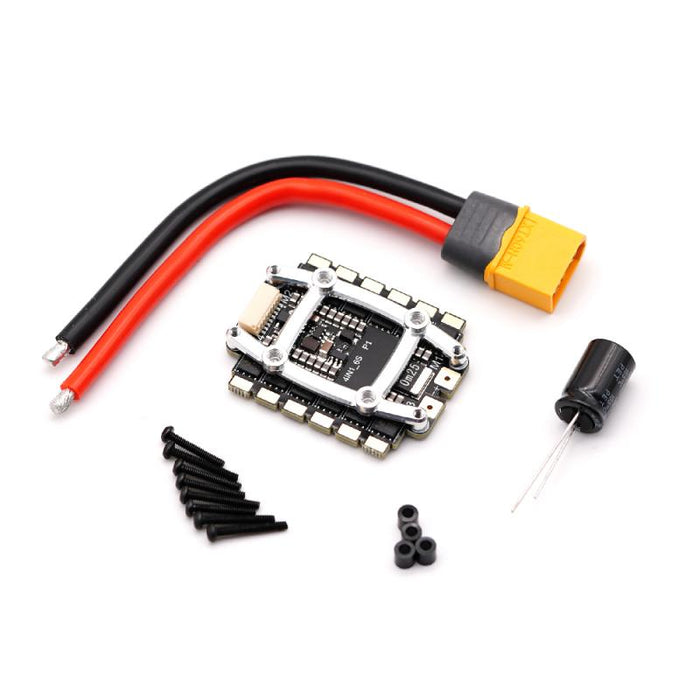

Package Includes:

  • TBS Lucid 4in1 ESC
  • 4 x 2.2x4mm standoffs
  • Aluminum top bracket for 20x20 FCs
  • XT60 power connector
  • 470uF 6S Capacitor
  • 4 x M2x12 screws
  • 4 x M2x14 screws

Warranty Policy:

If any warranty needs for this product arise, please note that the manufacturer of this product is one of the few manufacturers we carry that requests the end user to contact them directly for any troubleshooting or possibly defective items. We must follow these policies set by these manufacturers. Please make sure to contact them directly if you feel your product is defective in any way. Reach out to us if you need an email address or contact link for this manufacturer.
