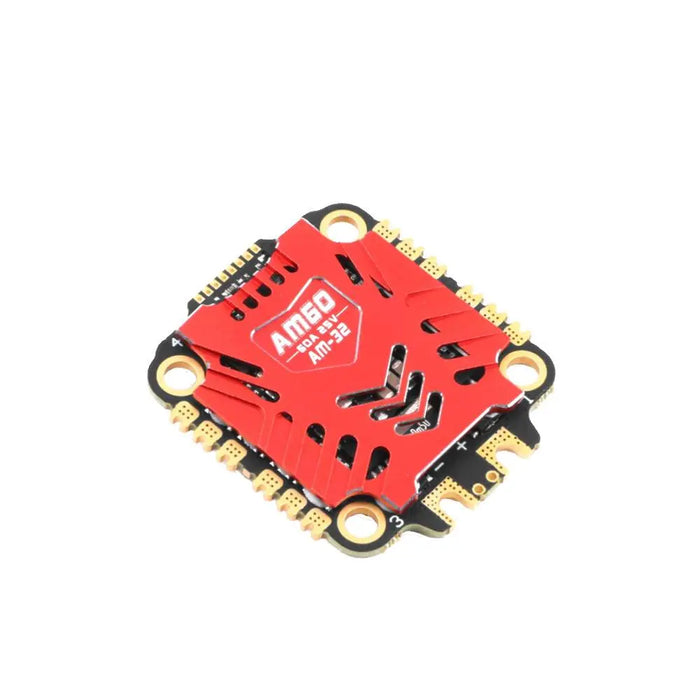

Skystars F7HD Stack F722HD Pro 4 OSD & AM60 AM32 ESC - 30 x 30mm

Skystars F7HD Stack F722HD Pro 4 OSD & AM60 AM32 ESC - 30 x 30mm

SKU N1-12432
Availability:
Out of stock
Sold out
$127.49 - $127.49
$127.49
$127.49 - $127.49
$127.49


Skystars F7HD Stack with 30x30 F722HD Pro4 Flight Controller & AM60A 60A ESC! The flight controller Includes 6 UARTS, a 10V 3A Regulator for Caddx Vista or DJI Air Unit, and 8MB Blackbox! The flight controller also has convenient solder pads placed at each corner for easy wiring of LED's. The AM60A ESC is stable for 6S voltages due to the use of lots of SMD capacitors and a large heatsink for heat dissipation and style. Flashed with the latest AM32 firmware it also support telemetry functions (including voltage RPMS & current)!

Check out all our Stacks and the rest of our Skystars Products!

Specifications

Skystars F7HD Pro4 Flight Controller

  • MCU: STM32F722RGT6 216MHz
  • Gyroscope: MPU6000
  • Baro:Bmp280
  • OSD: Betaflight SPI OSD DJI HD OSD(UART6)
  • Black box: 16MB
  • Uarts: UART 1/2/3/4/5/6
  • Input voltage: 3-6S
  • BEC: 5V/10V 3A
  • BetaFlight firmware: SKYSTARSF722Pro
  • INAV firmware:SKYSTARSF722HD
  • Mounting: 30.5mm*30.5mm/M4
  • Size: 39mm*39mm
  • Weight: 6.9g

AM60A AM-32 32bit 4-in-1 ESC

  • Support Dshot1200, Dshot600, PWM control signal
  • Input voltage: 3-6S LiPo
  • Con.Current: 60A
  • Peak Current: 80A¡Ý 10S
  • Firmware: AM_32
  • Support : Dshot 600/1200
  • Mounting hole : 30.5mm/M3
  • BEC: No
  • Product size: 41*46*7.6mm
  • Weight: 18g

Includes

  • 1x SkyStars Fly Stack - F722 HD Pro 4 FC + AM60 60A AM_32 ESC - 30x30
  • 8x Silicon grommets M4 to M3
  • 2x JST-SH1.0_8pin cable, 4cm
  • 1x JST-GH-6P cable for DJI port, 10cm
