Skystars F7HD Pro 4 Flight controller and KO45A AM32 ESC Stack - 30x30mm

SKU E1-9533
Availability:
in stock
Original price $126.99 - Original price $126.99
Original price
$126.99
$126.99 - $126.99
Current price $126.99

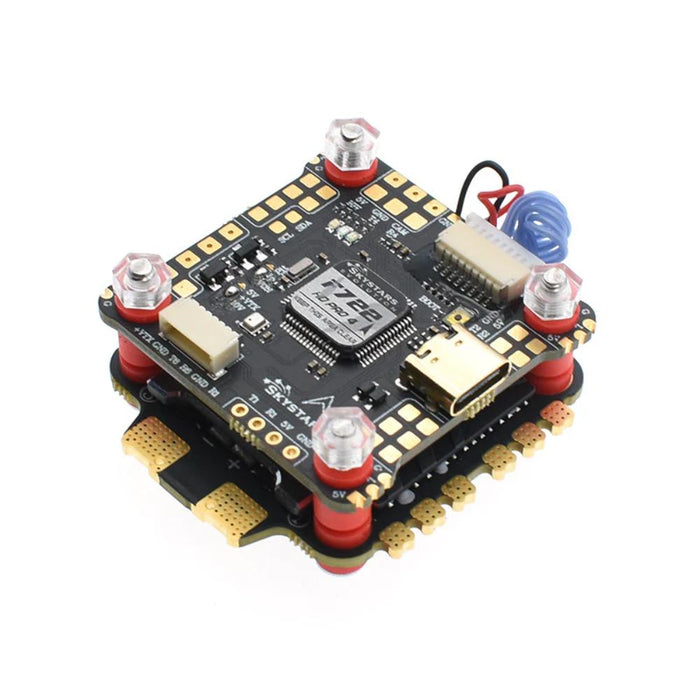

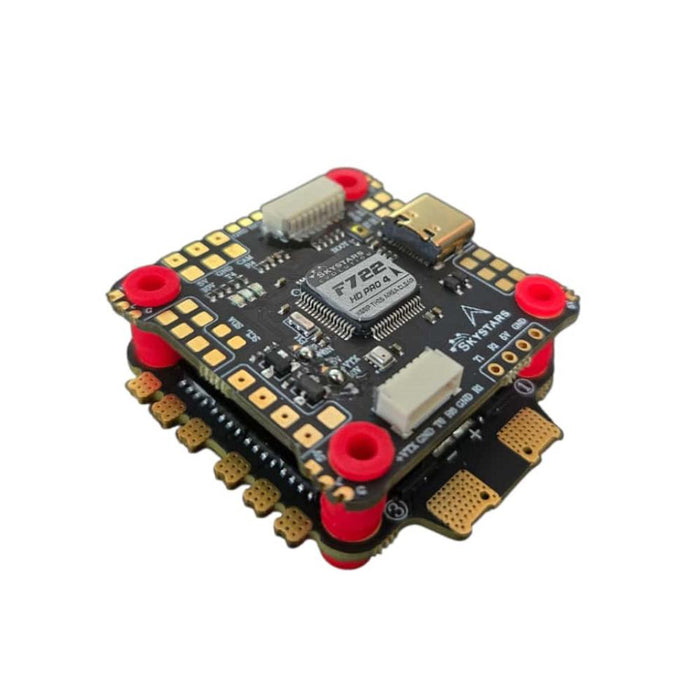

SKYSTARS F7 F722 HD Pro 4 Flight controller and 45A AM32 32bit ESC fly tower stack

Check out all our Stacks and the rest of our Skystars Products!

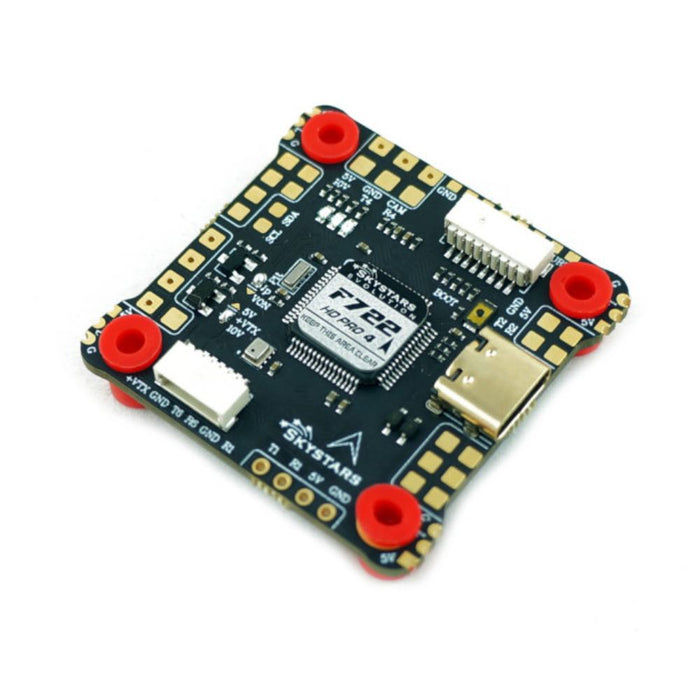

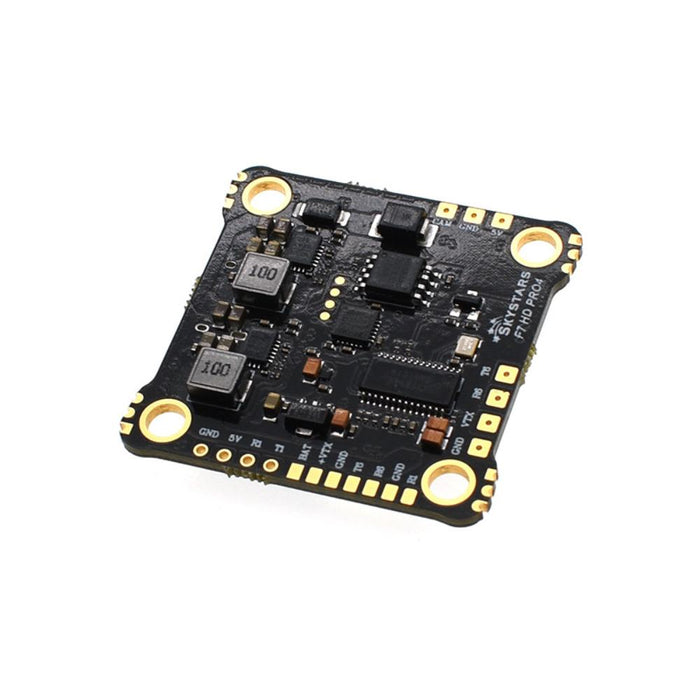

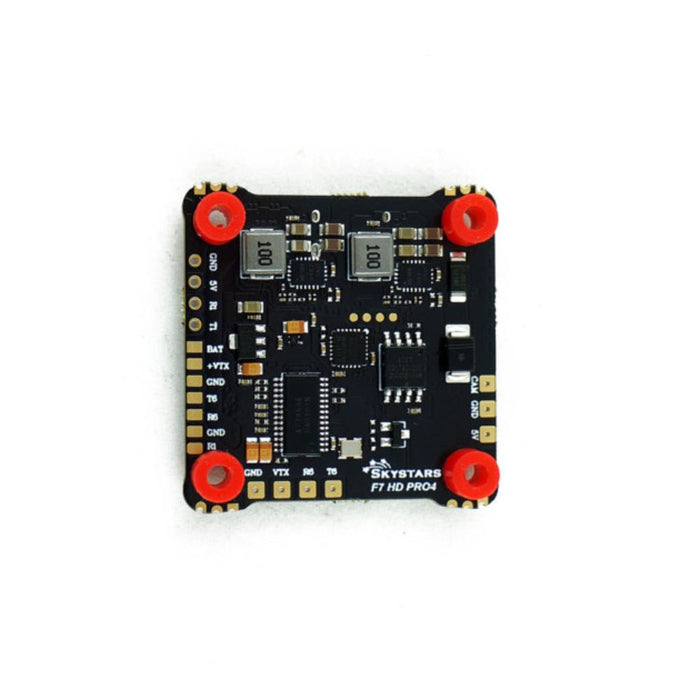

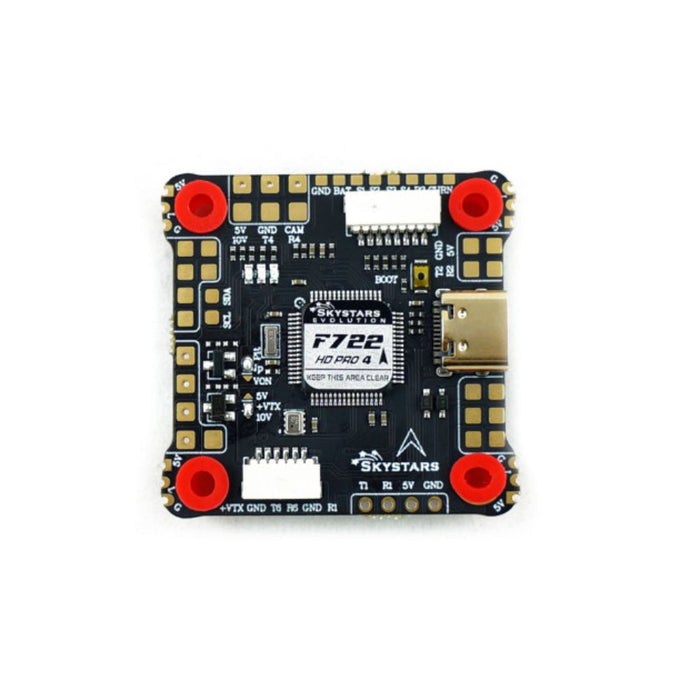

FC Specifications:

  • MCU: STM32F722RGT6 216MHz
  • Gyroscope: MPU6000
  • Baro:Bmp280
  • OSD: Betaflight SPI OSD  DJI HD OSD(UART6)
  • Black box: 16MB
  • 6x Uarts: UART 1/2/3/4/5/6
  • 4x PWM outputs
  • 1x I2C
  • 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
  • USB Type-C(USB2.0)
  • 1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
  • 1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
  • VTX 10V/Vbat filtered power ON/OFF switch
  • DJI FPV OSD is supported by any spare UART
  • LED: 4 LED independent pads, support WS2812 programming lamp output.
  • Receiver: Support Sbus, crsf, ibus, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART.
  • Input voltage: 3-6S
  • BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI
  • LDO 3.3V: Max.250mA
  • BetaFlight firmware: SKYSTARSF722Pro
  • INAV firmware:SKYSTARSF722HD
  • Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation
  • External size 39mm × 39mm
  • Flight control weight: 6.9g
  • Flight control onboard voltage sensor.

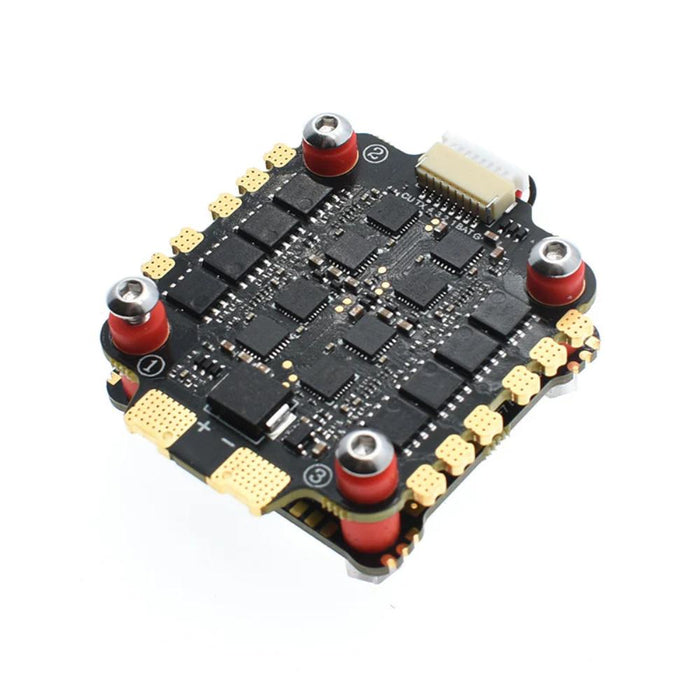

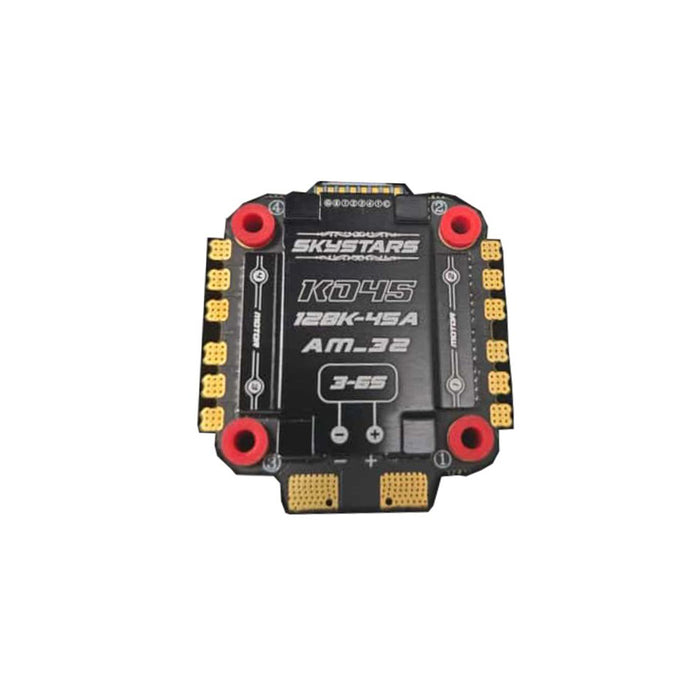

ESC Specifications:

  • Support 128K Dshot1200, Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal
  • Power supply voltage: 3-6S (12-26V)
  • Continuous working current: 45A
  • No built-in 5V BEC output
  • Firmware: AM32 ESC
  • Screw hole spacing: 30.5*30.5MM
  • Weight: 14.6g
  • The ESC has an on-board filter capacitor that suppresses the back electromotive force, stabilizes the battery voltage, and protects the flight control ESC precision components.
  • EMI Shell provides stronger anti-interference capability.

  • Note: There is no difference in appearance between the 45A and 60A ESCs, which can be distinguished from the MOS tube.


Package Includes:

  • 1 x Skystars F7HD Pro 4 Flight controller and KO45A AM32 ESC Stack - 30x30mm
