Latest version of Mobula7 digital HD is Mobula7 O4 wide that comes with new DJI O4 Wide system which providing Ultra-wide field of view for immersive FPV experience originally.

you can find here all the related Parts for the Mobula7 O4 Frame.

Check out our Micro Whoop Drones and our entire Happymodel Collection!

Features:

• Equipped with the latest DJI O4 Wide system

• Lightweight 45mm HD Whoop Design

• 2S battery support Powerful and Smooth freestyle flying

• UART ExpressLRS receiver support stable control link

• DJI Radio controller support(Need to flash Betaflight firmware)

• Lighter and small for indoor FPV



Specifications:

• Brand Name: Happymodel

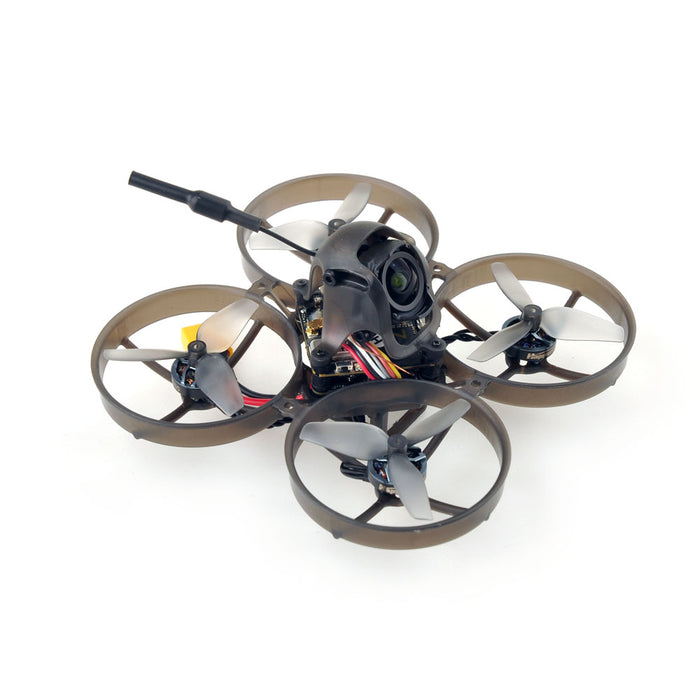

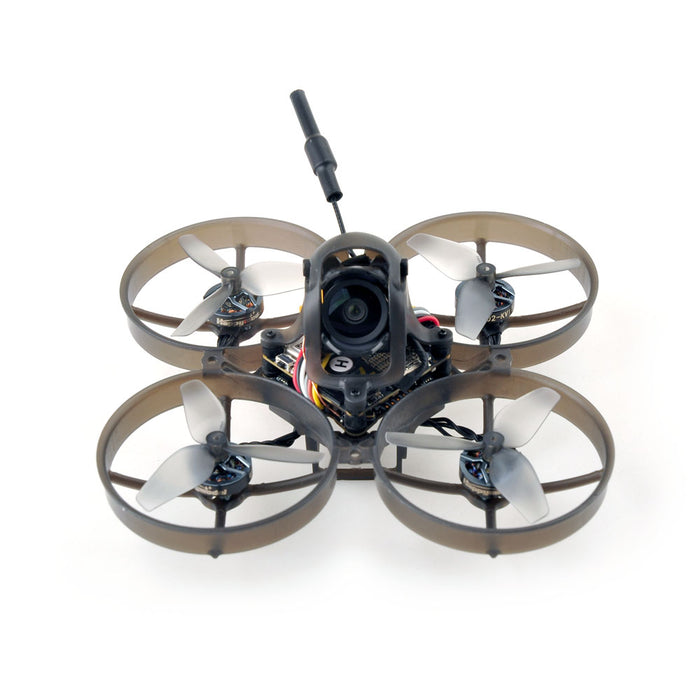

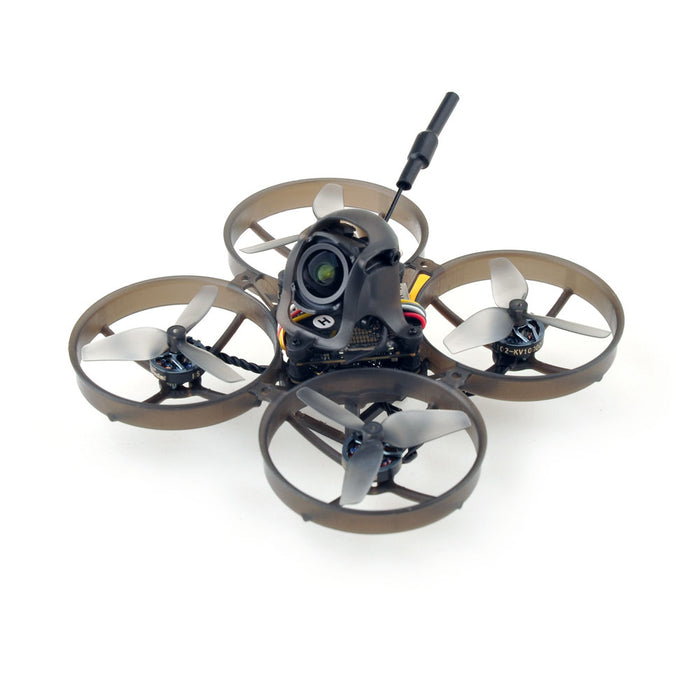

• Item Name: Mobula7 O4 Wide 2S 80mm Digital HD Micro FPV whoop

• Wheelbase: 80mm

• Size: 107mm*107mm*58mm

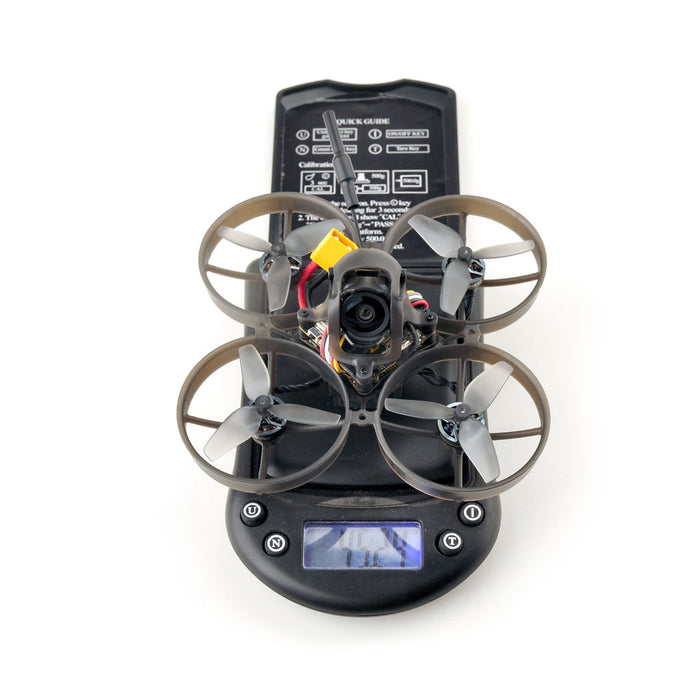

• Weight: 45g



Package includes:

Item Name	Qty
Happymodel M80 Frame	1
CrazyF405HD ELRS flight controller firmware	1
RS1102 KV10000 brushless motor	4
HQPROP 45MMX2 bi-blade propellers(4cw+4ccw)	1
DJI O4 Wide Air unit	1
Angle-adjustable Canopy for DJI O4 Wide	1
Screw driver	1



Spare parts specifications:

Motor	Mode: RS1102 KV10000 Configu-ration:9N12P Stator Diamter:11mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*14mm Weight(g):2.8g No.of Cells(Lipo):1-2S
Propellers	Weight:0.25g Material: Poly Carbonate Pitch:0.9 Props Dia:45mm Hub Thickness:5mm Shaft:1.5mm
Flight controller	MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH) GYRO Sensor: BMI270  (SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Serial UART ExpressLRS 2.4G receiver Built-in SPL06-001 Barometer (DPS310) Built-in 8MBp blackbox Built-in voltage meter sensor , voltage meter scale 110 Built-in current meter sensor , current meter scale 470
Onboard 4in1 ESC	Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeli_S Bluejay firmware Factory firmware: Bluejay ESC V0.19 Firmware target: Z-H-30 Default protocol: DSHOT300 When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200
Onboard UART ExpressLRS 2.4GHz Receiver	Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna: enameled copper wire 31mm length Telemetry output Power: <12dBm Default firmware version: ExpressLRS V3.0.1 Firmware target: HappyModel EP1/EP2 2.4GHz RX Could update firmware via ExpressLRS configurator
DJI O4 Air Unit	Weight: Air Unit (camera module included): Approx. 13.3g Transmission Module: 30×30×6 mm (L×W×H) Camera Module: 20.5×14×20.5 mm (L×W×H) Camera Cable Length: 50mm Coaxial Cable: 50 mm 3-in-1 Cable: 50 mm Operating Frequency: 5.170-5.250 GHz 5.725-5.850 GHz Operating frequency varies by region. Refer to local regulations.. Transmitter Power (EIRP): 5.1 GHz: <23 dBm (CE) 5.8 GHz: <30 dBm (FCC) <14 dBm (CE) <30 dBm (SRRC) Live View Quality: 1080p at 30/50/60/100fps
