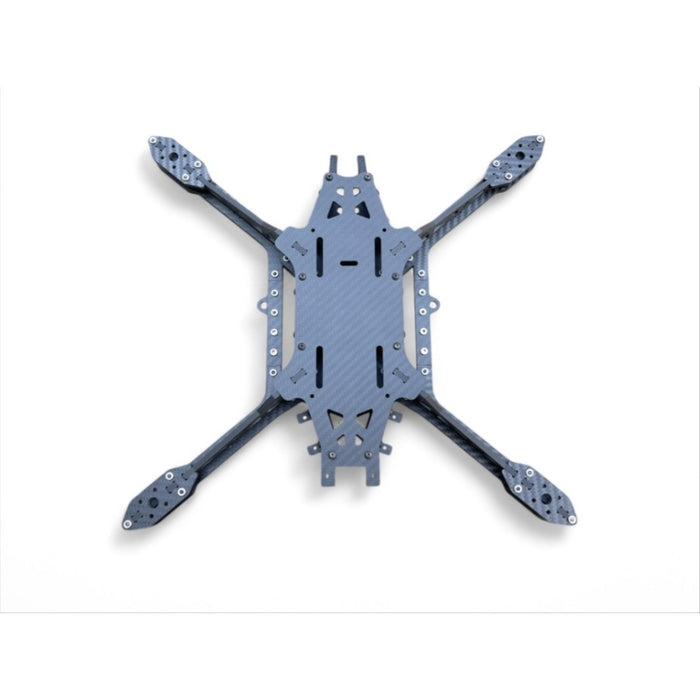

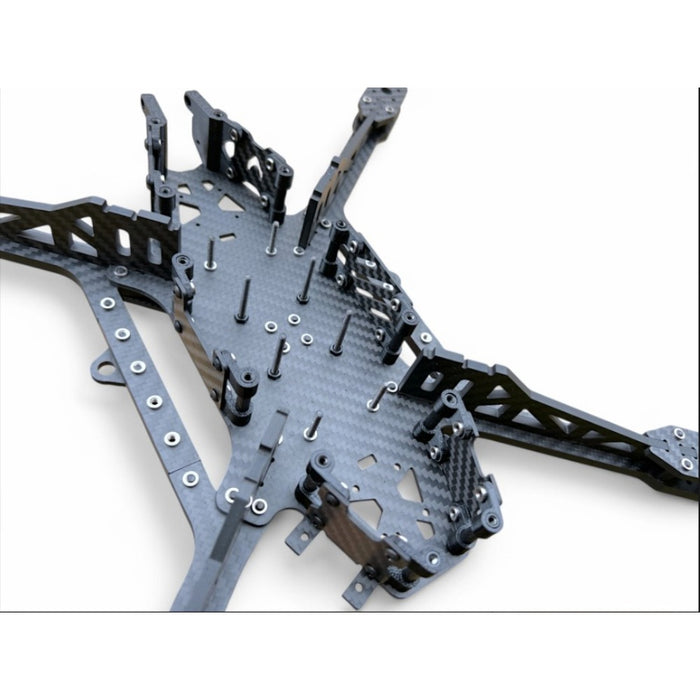

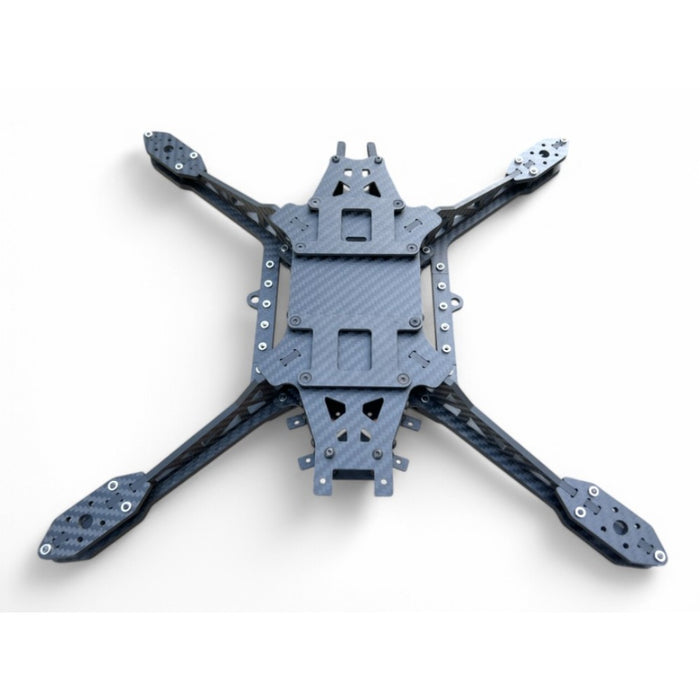

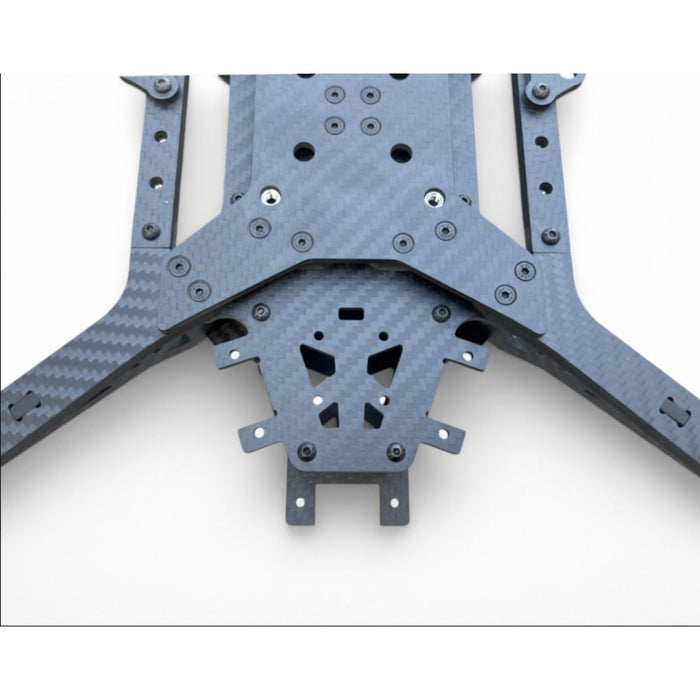

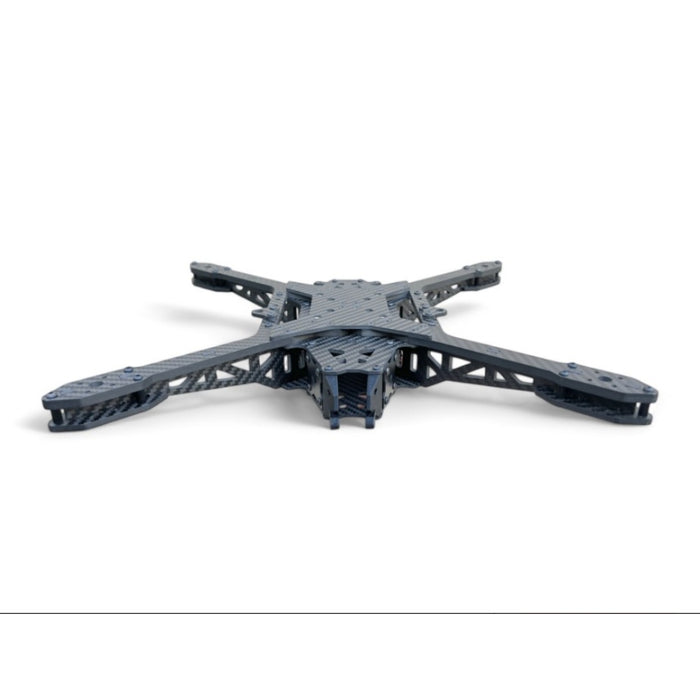

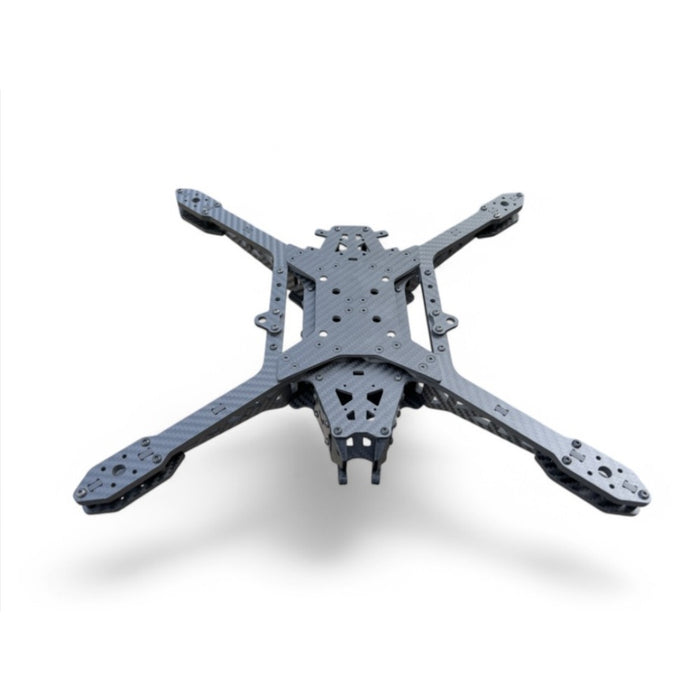

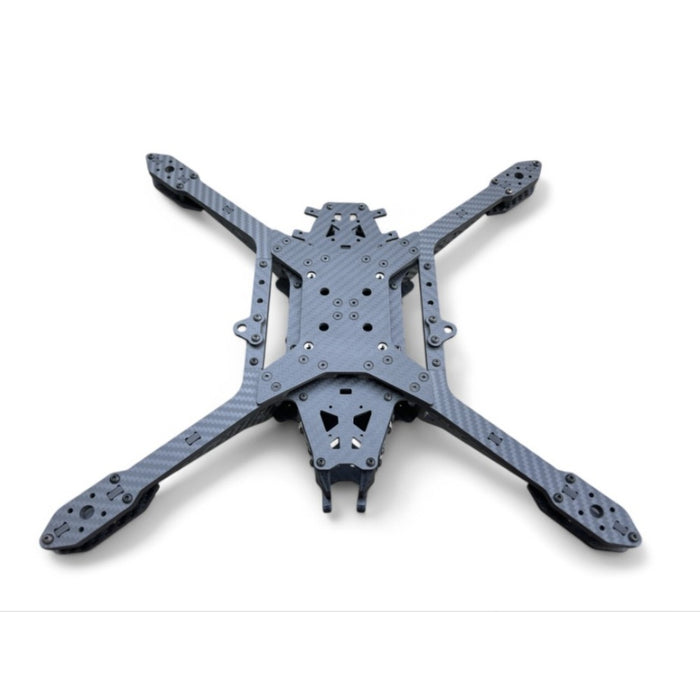

HYPERLOW X8 Cinelifter Frame Kit W/Add-Ons

SKU V7-14066
Availability:
In stock
Original price $645.00 - Original price $645.00
Original price
$645.00
$645.00 - $645.00
Current price $645.00


Increase your flight time and maneuverability with the HYPERLOW X8 Cinelifter Frame Kit. This Listing comes with 3 add-ons included:

  • Cine Cam Mount
  • Batt Balance Plate
  • MATEK BEC Double

Check Out all our Cinelifter Frames and the rest of our Cinelifters and related Accessories.

Flight 1: 5min sustained 50mph. 5200mah 9" 2812. Komodo + 10mm Laowa unstabilized:

Noise spectrum from acro flight.

3D PRINTS



Recommended Parts:
2812 Motors
9" Props
2 x Hobbywing or Foxeer ESC
Radix 2 HD FC
DJI 03 or 04 Air Unit
TrueRC Antennas
Matek 12s BEC
Xfire Nano or Diversity

6" SMA to UFL
Newbee 03 Mount
Extended and Extra Extended Xfire antennas
5200+mah battery

PIDS for above setup (YMMV):

Specifications:

  • Base frame weight: 485g
  • Cine Cam Mount: 84g
  • Wheelbase: M2M 405mm, 280x292mm
  • Prop size: 8-9"
  • Motor mounting: 19x19mm
  • Max internal ESC size: 60 x 86mm (excluding solder tabs)
  • Build height: 30mm
  • Stack mounting: Three overlapping 30x30
  • VTX: 20x20 M2 + 20x20 M3
  • FPV mounting: 03, 04, Vista

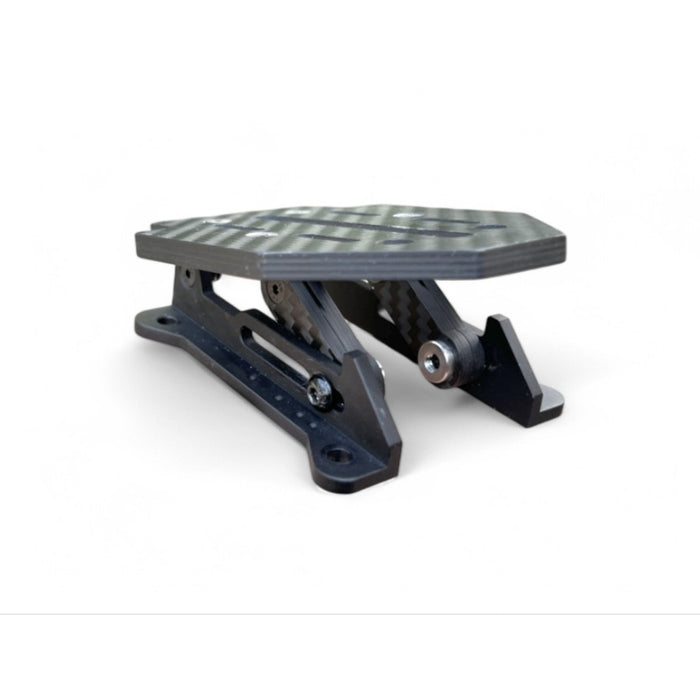

The optional mount plate facilitates moving the cinema camera between different rigs.
Attaches to the 90x124 pattern with bolt reversals (see Assembly Guide).  Also fits
naked Blackmagic cameras

Kit Extras:
  • Prints for vertical and horizontal crossfire
  • Carbon mounts for SMA + GPS

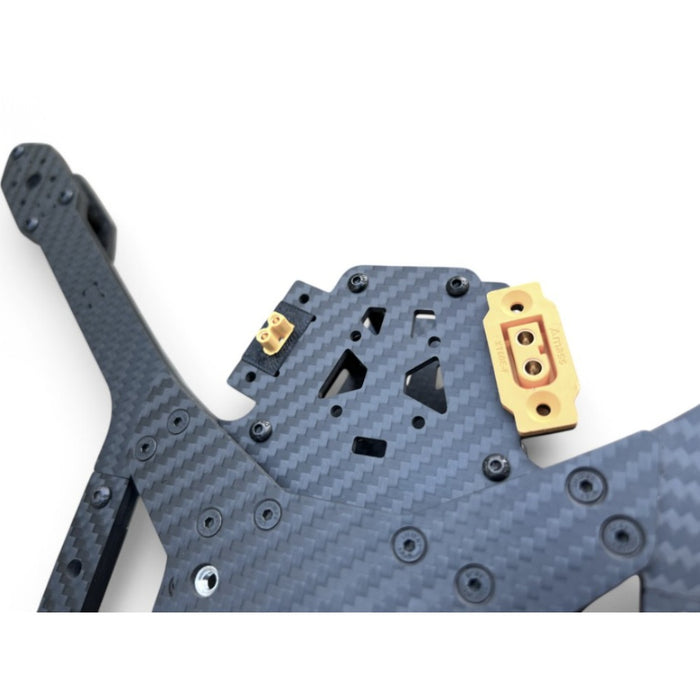

  • XT90, XT60 and XT30
  • 320mm battery staps x 2
  • Lens cloth
Compatible Camera Mounts:
DAC
UCM

Package Includes:

  • 1 x Hyperblow X8 Frame Kit
  • 1 x Cine Cam Mount
  • 1 x Batt Balance Plate
  • 1 x MATEK BEC Double
