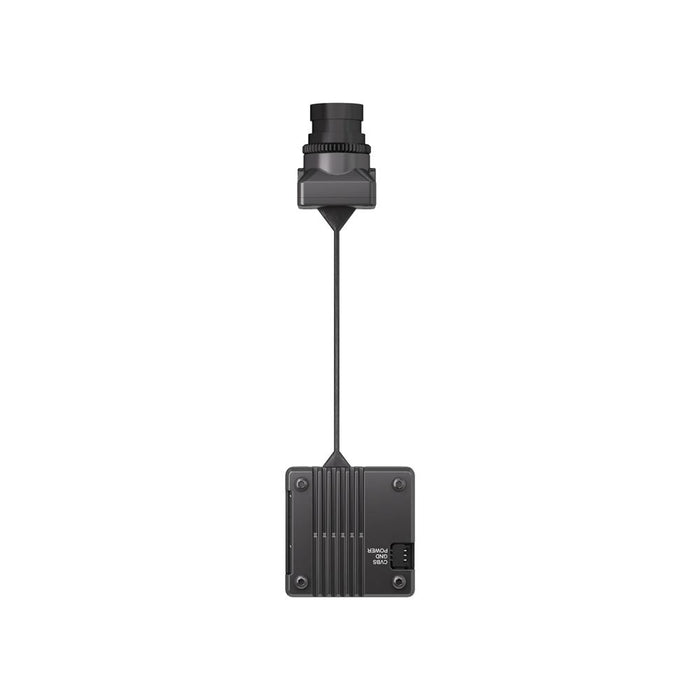

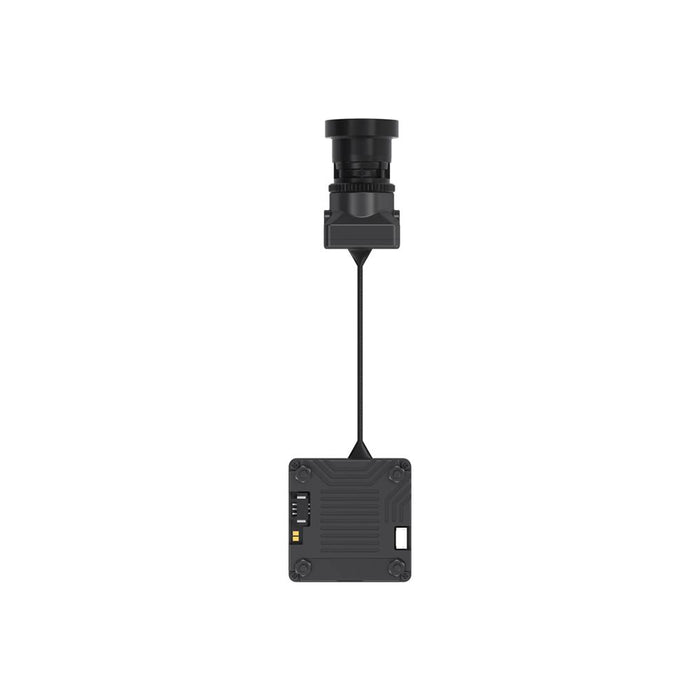

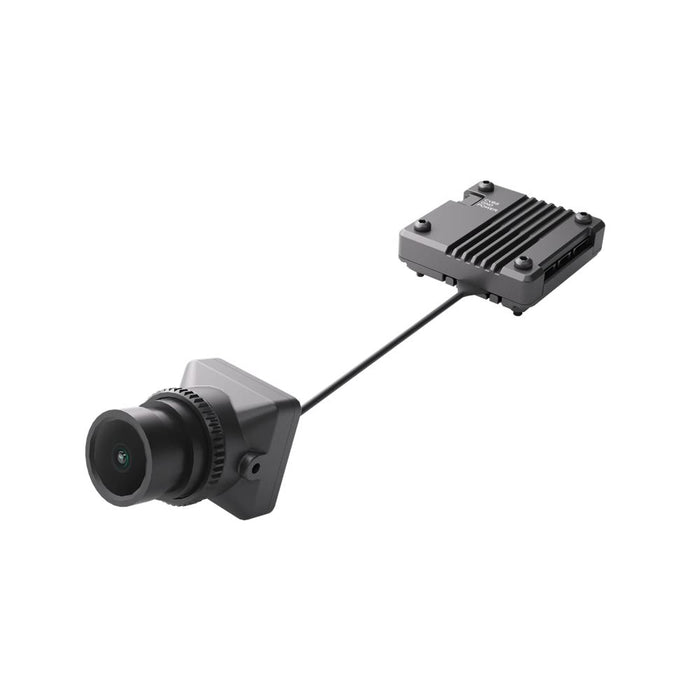

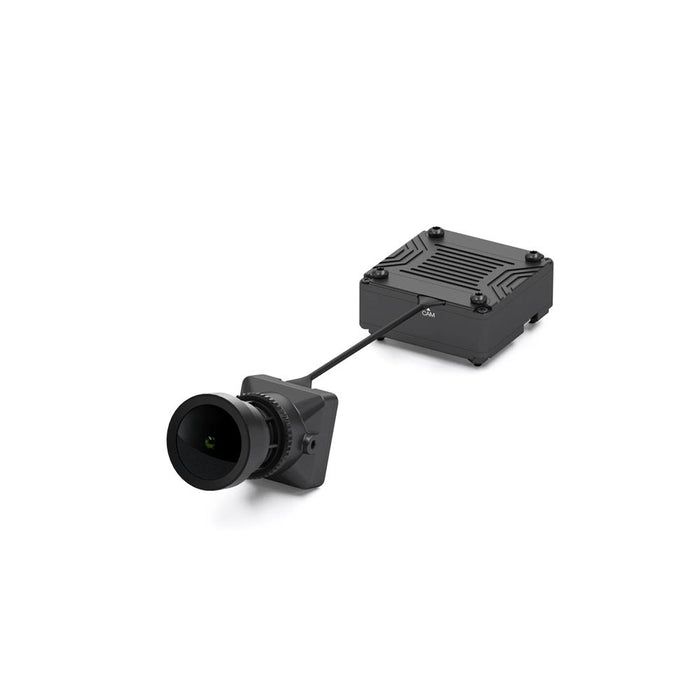

Note: This purchase includes only the Camera and AI Box . There is no VTX system included. A VTX module must be purchased separately.

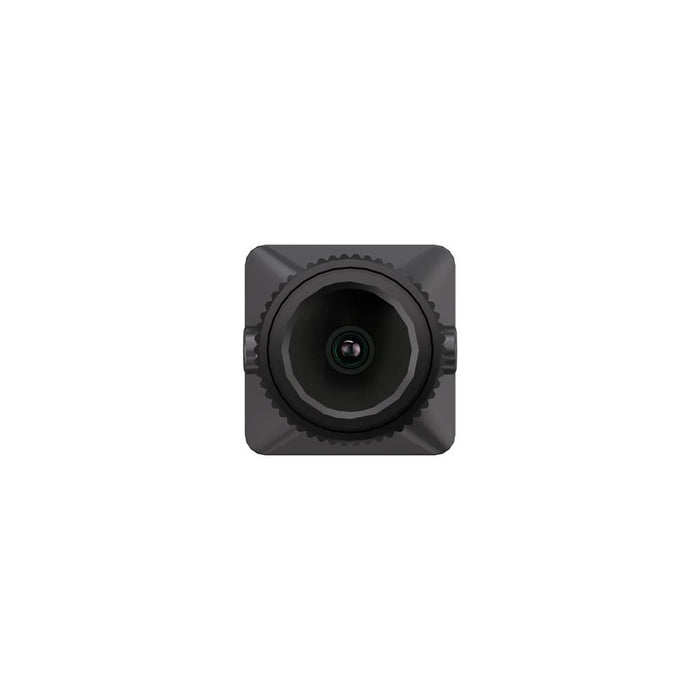

The CADDXFPV infra camera features a black and white sensor that can be used in very low light conditions. It also utilizes AI image enhancement and an HD output which makes it compatible with Walksnail HD systems.
Features：
- New V2 AI Image Enhancement
- High Resolution
- Reduced Size and Dimensions
- Black and White Sensor
1. Powered by the new Infra V2 AI night vision enhancement algorithm, it boosts image clarity by more than 30% in low-light conditions. The upgraded AI processing chip also enables a more compact processor module, making the device thinner and lighter than ever.
2. Using AI multi-frame algorithms to enhance dynamic range during night vision, effectively suppressing overexposure/underexposure in backlit scenes and preserving full image details. Compared to traditional color cameras, its sensitivity is much improved, allowing for better capture of object shapes and contours.
3. The image sensor outputs in a native 4:3 aspect ratio, providing a full, uncropped image with sharp pixel clarity, letting you fully immerse in every flight moment with unmatched visual precision.
4. Supports WDR, 100% satisfying the pursuit of detailed shooting in dark environments.

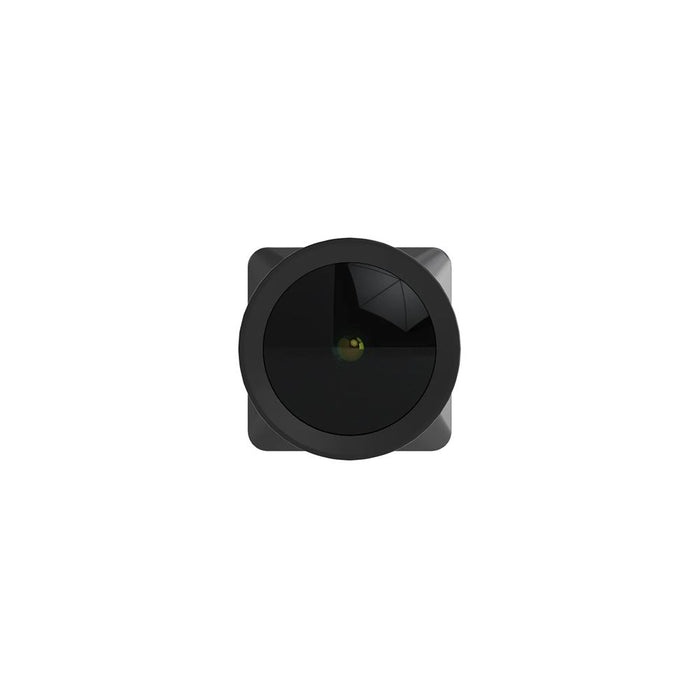

5. Designed with a 131.6° ultra-wide-angle lens, the Infra V2 camera offers FPV pilots an expansive real-time view, improving situational awareness, enhancing image clarity, and capturing immersive, true-to-life visuals during every flight.
6. Featuring a metal case, the lightweight design improves durability and heat dissipation. Utilizing a brand-new optical design to reduce lens size while ensuring the same light intake as Infra V1, making installation easier.
Specification:
| Model |
Caddx Infra V2 |
| Image sensor |
1/1.8 inch |
Pixel size
|
8μm
|
| Horizontal resolution |
1500TVL |
| Focal length |
2.8mm |
| Aperture |
F1.0 |
| FOV |
131.6°（D） |
| Output format |
CVBS PAL |
| Frame rate |
50fps |
| Image quality |
Black&White |
| Video interface |
1xPAL |
| Supply Voltage |
9~24V |
| Typical Power Consumption |
<1.2W |
| Aspect ratio |
4:3 |
| Operating temperature |
-20℃~60℃ |
| Dimensions |

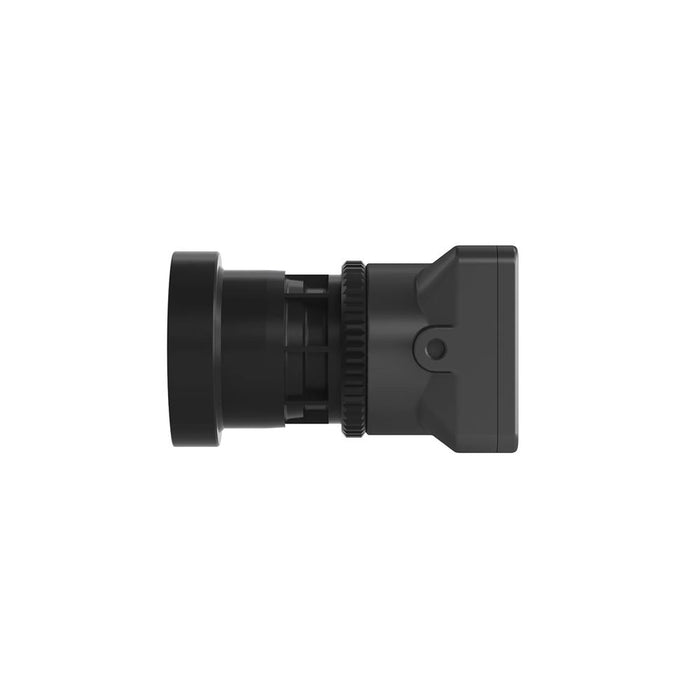

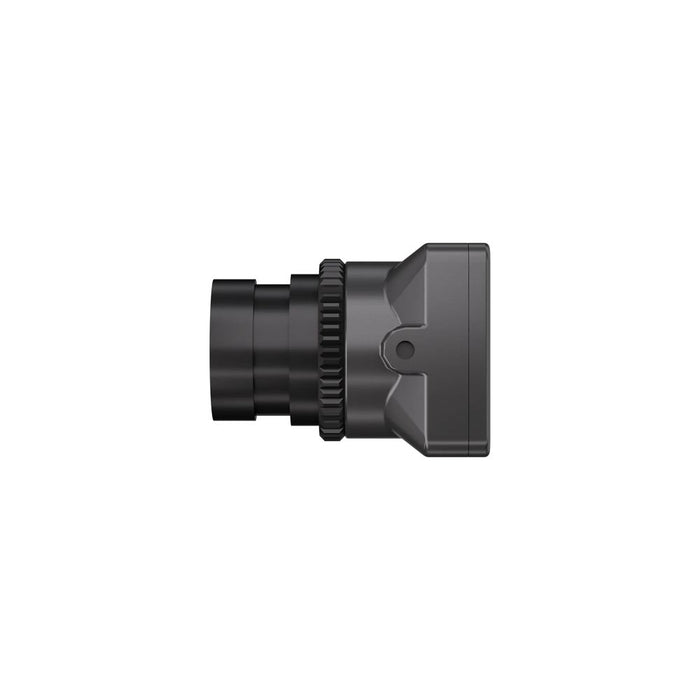

Camera: 20.5x20.5x26.9mm

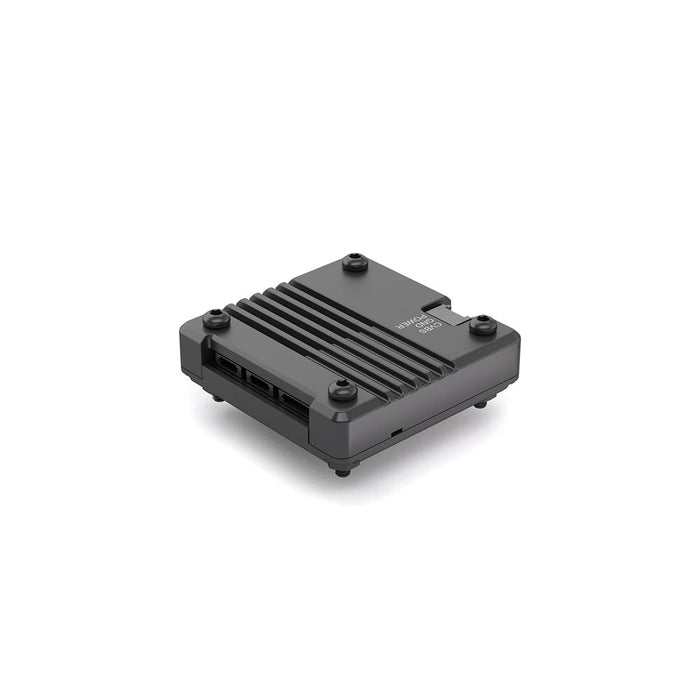

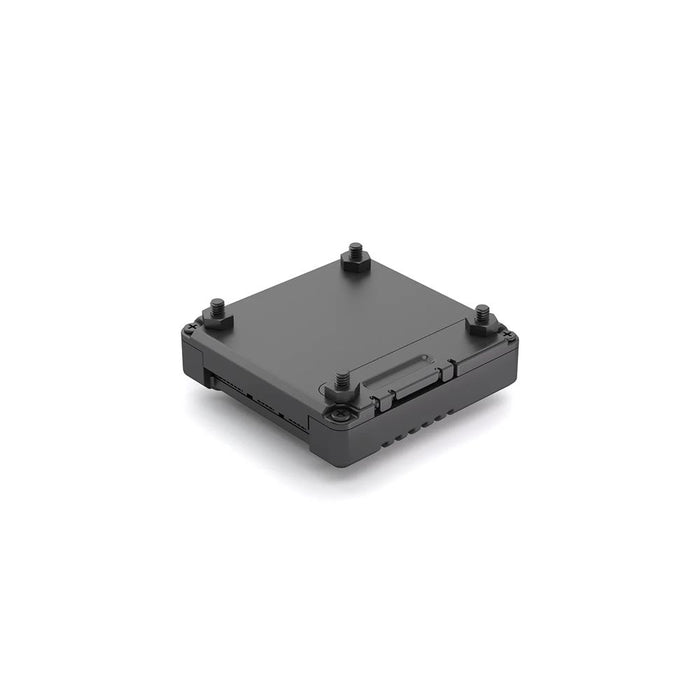

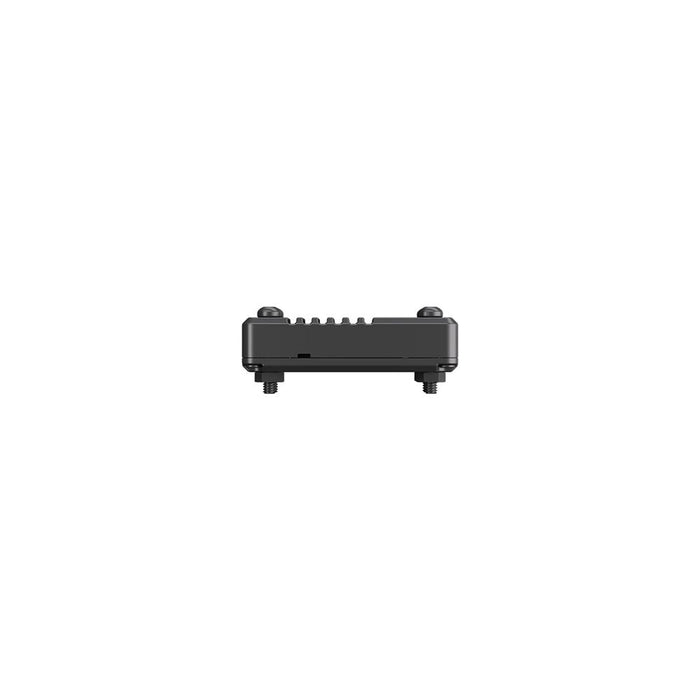

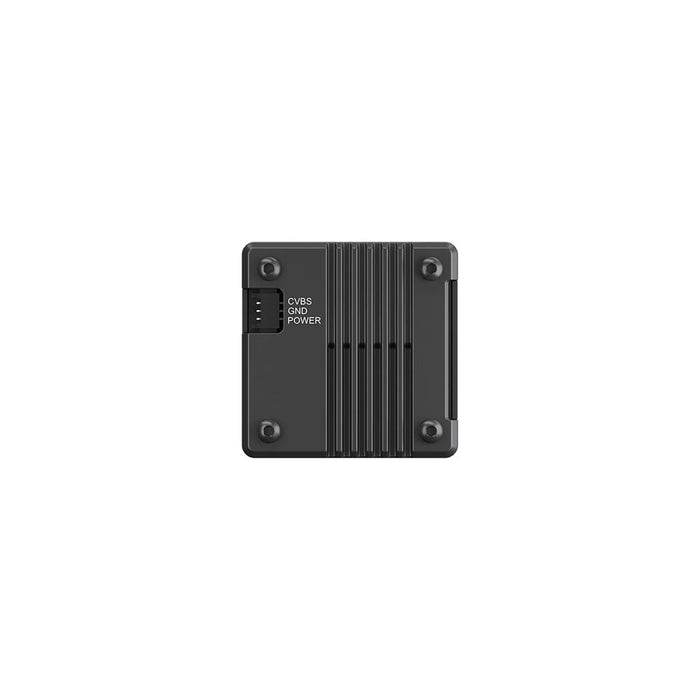

AI Box: 34x34x13.2mm |
Package Includes:
- 1 x CaddxFPV Infra V2 Camera 4:3
