- Hybrid motor design optimized for that can be used with both bi-blade and tri-blade 6" propellers
- High-end GPS is used to minimize the risk of failure during proximity flights
- Long backbone with enough space up to fit 3000mAh 6S batteries
- Solid antenna mount for less ocillations when using long antennas
- Gladiator shell protects from dust and water droplets
- ESCs with built-in spike absorber for more reliability
- Built in BEC to directly power a GoPro camera
- 9-minute flight time with 3000mAh 6S Lipo
- Front-mounting XT-60
Specifications:

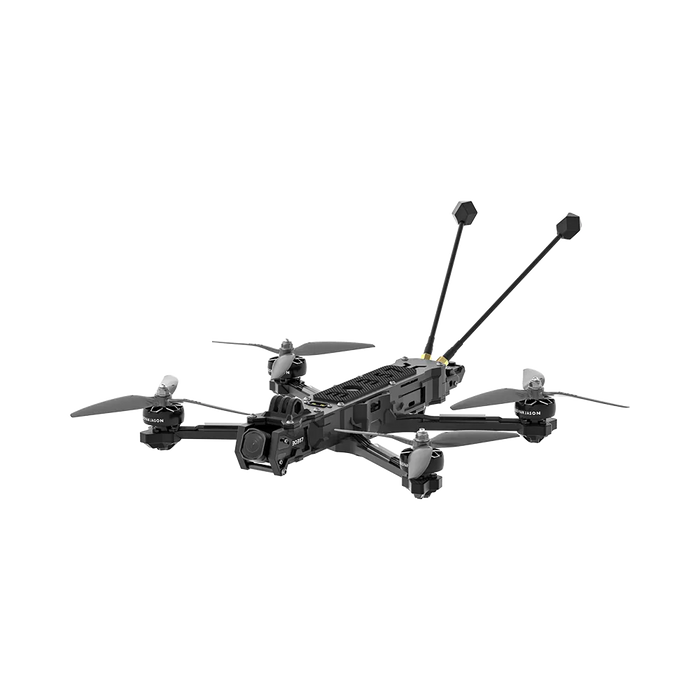

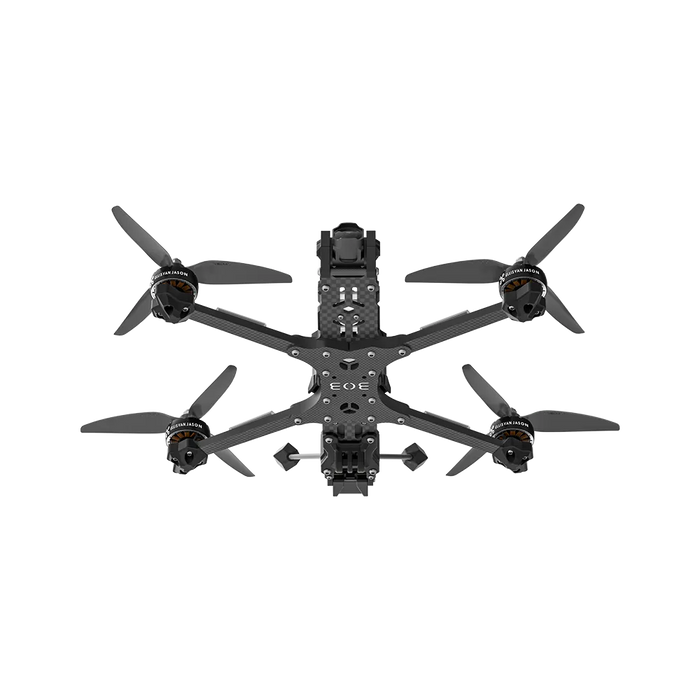

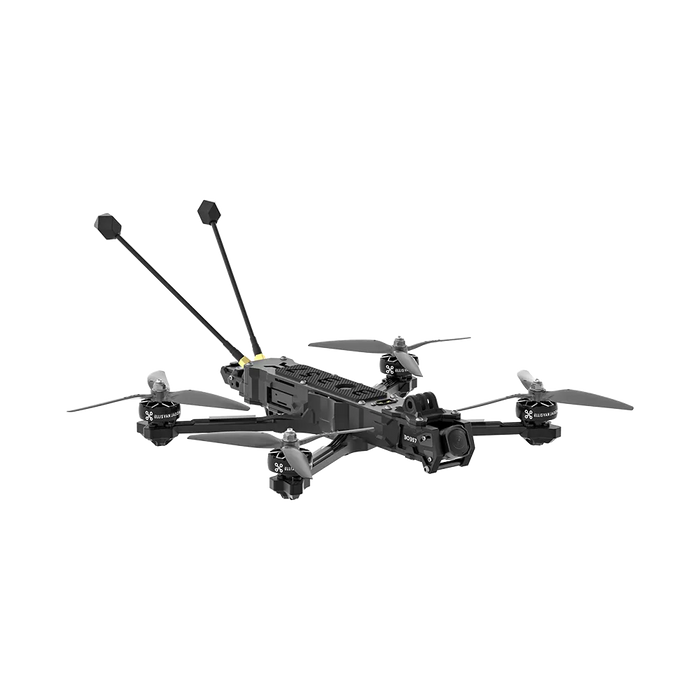

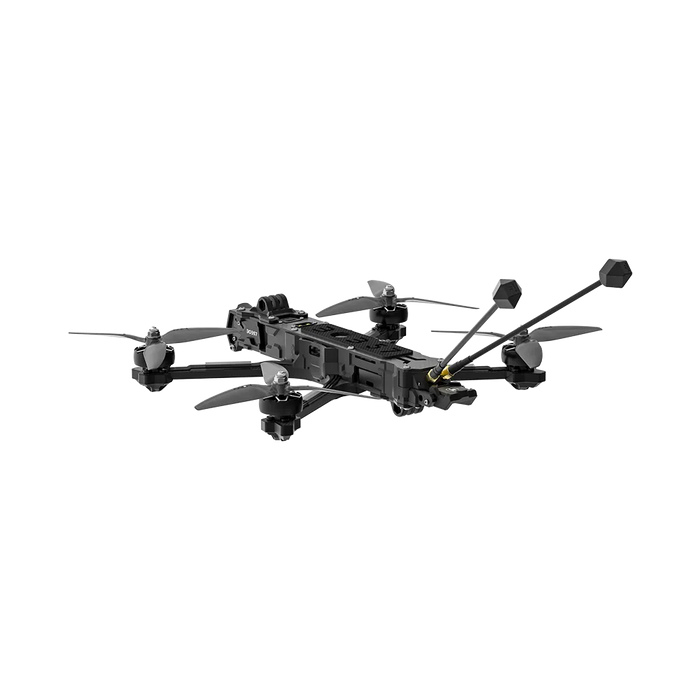

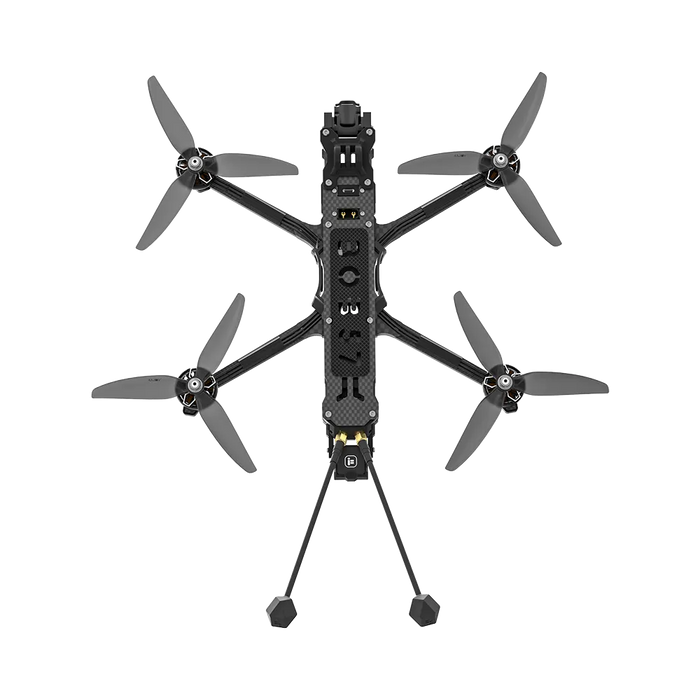

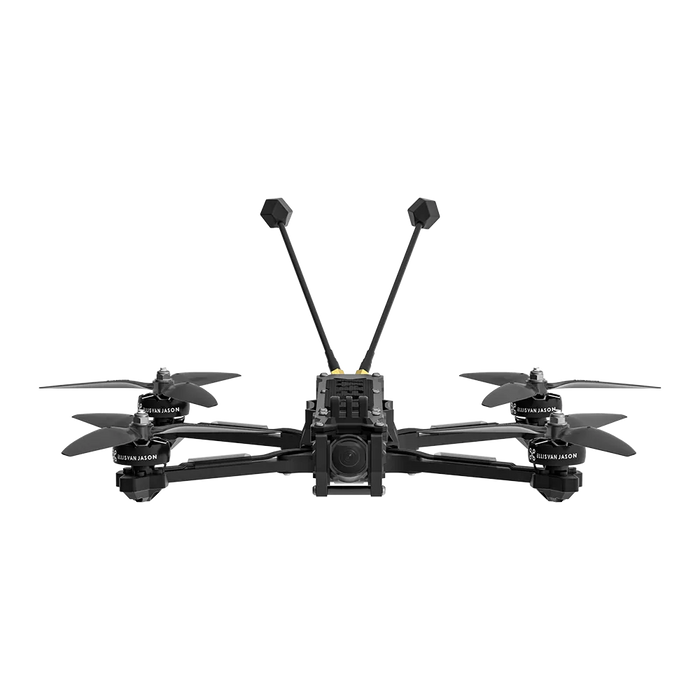

- Product Name: BOB57 O4 6S HD BNF
- FC: BLITZ F722
- ESC: BLITZ E55 55A 4-IN-1 ESC
- Video Transmission: DJI O4 Air Unit Pro

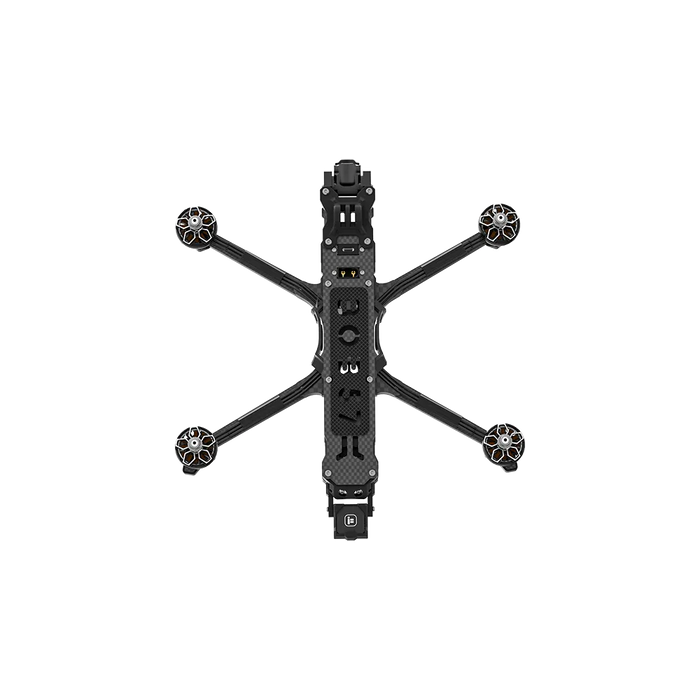

- Frame: 280mm wheelbase
- Motor: XING2 2506 1500KV motors
- Prop: GEMFAN 6032-3 propellers
- Weight: 570±5g
- Takeoff Weight: Approx.795±5g (With 6S 1480mAh)
- Dimensions (L×W×H): 226×166×34 mm
- Max Speed: 180 km/h (Manual Mode)
- Maximum Takeoff Altitude: 7000 m
- Max Hover Time: Approx. 8.5 min (With 6S 1400 no load.)
- Operating Temperature Range: -10° to 40° C
- Antennas: 2 Antenna
- GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Video Transmission:
- Product Name: DJI O4 Air Unit Pro
- Image Sensor: 1/1.3-inch
- Lens: FOV: 155°
- ISO: 100-25600
- Video Resolution: 1080p/100fps H.265
- Video Format: MP4, Max Video Bitrate: 130Mbps
- Color Mode: Normal Mode/D-Log M
- Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)
- Live View Quality: 1080P@100fps
- Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz
- Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
- Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
- Communication Bandwidth: Max 60 MHz
- Antenna: Dual antennas
- Built-in Storage: 4GB
- Supported SD cards: microSD (up to 512GB)
- Operating Temperature: -10° to 40° C
- Weight: Air Unit (camera module included): Approx. 32 g
- Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)
Package Includes:
- 1 x BOB57 6S O4 HD BNF
- 2 x Antennas
- 1 x Battery pads
- 2 x Prop(Pairs)
Notes:
1. iFlight product is for fun purposes only and does not support autonomous flight.
2. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:
(1) Any military combat purpose or military combat related use;
(2) Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.
3. iFlight Partners must strictly adhere to applicable export control and sanction laws as well as any written compliance requirements regarding these controls issued by iFlight from time to time.
If Party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.
For more specific content, please check: https://shop.iflight.com/Export-Policy-info
4. The BNF does not include the remote control, goggles, GoPro, battery, or charger, which need to be purchased separately for compatible use.
