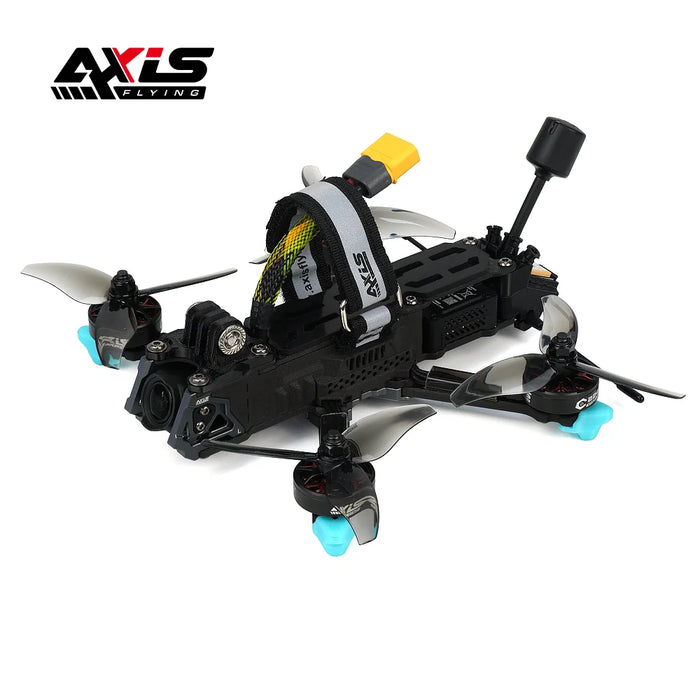

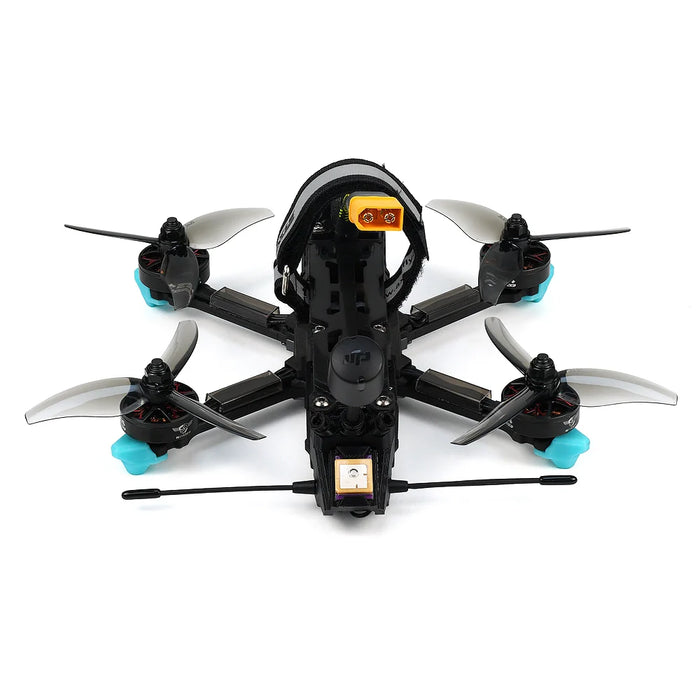

AxisFlying Manta 3.6inch HD O3 GPS Squashed X Freestyle/Cinematic FPV Drone - Choose Receiver

Features:

• MANTA 3.6 frame is specially designed for 3.6-inch Freestyle and Cinematic, launched in Squashed X.
• Squashed X design for a flexible flight experience, props are not visible from the FPV camera, more suitable for freestyle with high maneuverability.
• The frame adopts the innovative CNC aluminum structure design with the high-strength carbon plate makes the overall structure very strong, stable and safe.
• Manta3.6 will be equipped with a dedicated Flystack an Argus mini FC and ESC independently developed and produced by Axisflying, using BZ121 compass and MPU6000 gyroscope.
• The propellers of Manta3.6 are also customized, available in green and gray.
• It is also compatible with VTX and cameras such as DJI O3, Analog, Link, Walksnail, etc. Free to change and match.
• High performance is the core advantage of Manta3.6. It only takes 0.3 seconds to accelerate from 0-100kph under no-load condition, and the flight time is more than 8 minutes. In the state of mounting GoPro10, the top speed can still reach 180kph.
• Nylon-sintered side plates are installed on both sides of the FPV to protect the core electronic devices while ensuring that heat dissipation is not affected.
• The power cable can protrude from the front and rear of the FPV, which is convenient for the pilots to adjust the center of gravity of the drone by themselves.
• Supportting dual antennas.

Recommended configuration:

• Motor: Axisflying C224 2750KV
• Battery: 1100mAh 6S
• Stack: Axisflying Argus Mini 35A+F7
• Props: 3.6inch

Specifications:

• Name: Manta 3.6" Lite
• Arm thickness: 4mm
• Srtucture: Squashed X
• Lens space:14-20mm
• Wheelbase: 162mm
• Stack mounting: 20mm(M2) &30.5mm(M3)
• Bottom plate thickness:3mm
• VTX mounting: 20mm&25.5mm(M2)
• Top plate thickness: 2mm
• Prop size: Max 3.6 inch
• Carbon material: T700
• Motor mounting:12*12mm(M2)
• Bottom to top distance:20mm
• Weight: 108±5

Package Includes:

• 1 x AxisFlying Manta 3.6inch HD O3 GPS Squashed X Freestyle/Cinematic FPV Drone - Chosen Version
