AxisFlying Argus Mini F7 Flight Controller Stack w/ 55A 4-6S AM32 4in1 ESC - 20x20mm

AxisFlying Argus Mini F7 Flight Controller Stack w/ 55A 4-6S AM32 4in1 ESC - 20x20mm

SKU K3-13484
Availability:
in stock
$149.99 - $149.99
$149.99
$149.99 - $149.99
$149.99


Argus is axisflying electronic series that include ESC, FC and stack. The lightweight Argus Mini argus mini is specially designed for small size FPV drone, reducing the weight of the whole FPV to a greater extent, while providing stable and excellent control.

Check out all our 20x20mm Stacks and the rest of our Axisflying Products


Features:

  • The Argus Mini is significantly lighter than the Argus Pro / Argus ECO.
  • The FC supports up to 4 motor outputs, easily build your drone.
  • Quickly check the working status of the FC by turning on and off the corresponding status indicator light.
  • Open circuit board, free soldering equipment.


    Specifications:

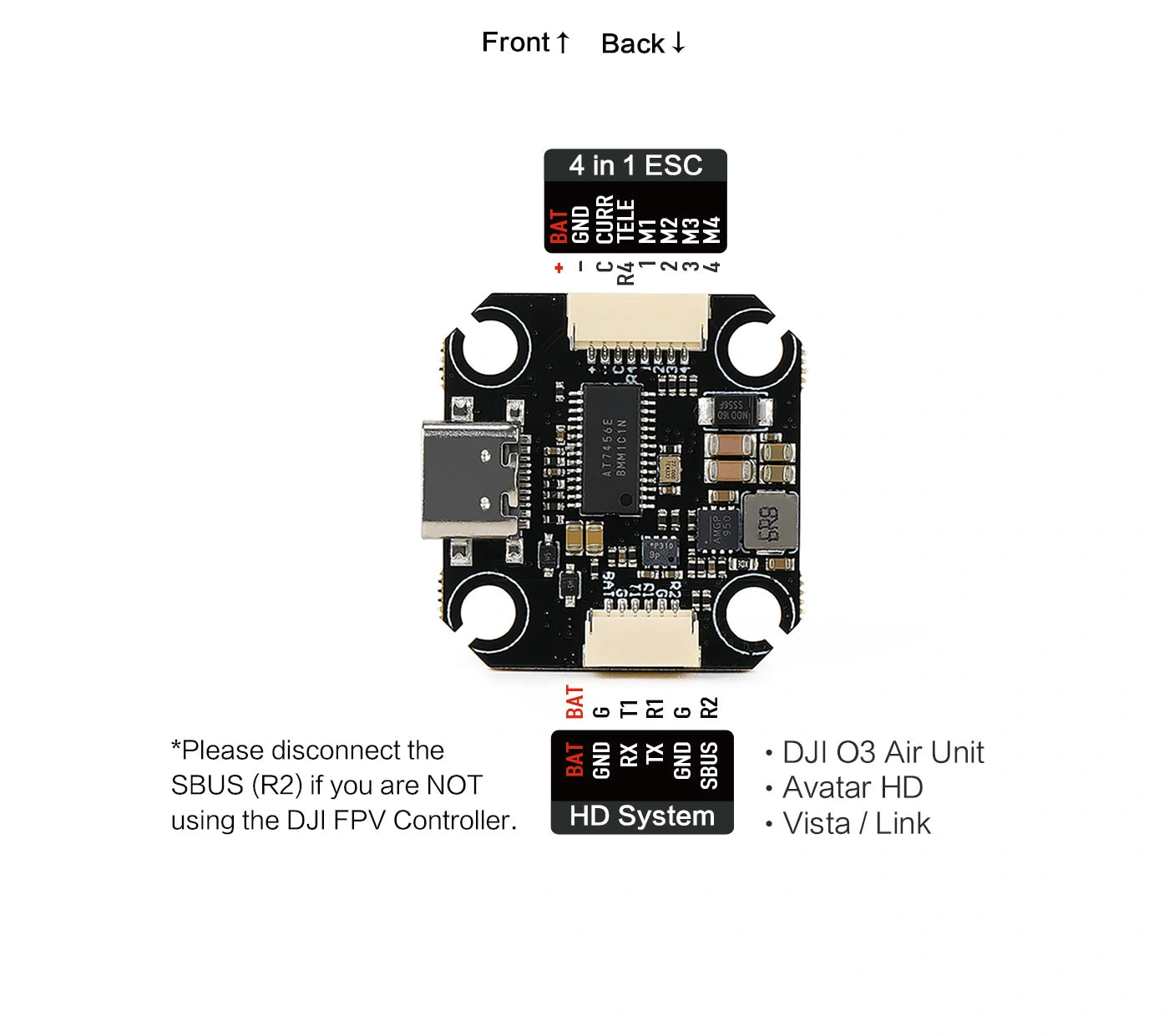

    • FC: Axisflying F7 PRO
    • MCU: STM32F722RET6
    • Gyro: MPU 6000 or ICM-42688-P
    • Input voltage: 4 -6S LIPO
    • BEC: 5V (3A Max)
    • OSD: Supported
    • Barometer: Supported
    • Blackbox 16MB
    • Ports: UART 1-5
    • Mounting Holes: 20*20mm M2/M3
    • Size: 28.5x27.6.2mm
    • Weight: 5g
    • ESC: AM32 AT_F4_04_F421 V2.16
    • Lipo Voltage: 4-6S
    • Continuous Current : 55A
    • Burst Current : 65A
    • BEC: Not Supported
    • Telemetry: Supported
    • PWM Frequency: 24-96kHz
    • Amperage Meter: Scale 200
    • Size: 44.3 x 31.3mm
    • Mounting Holes: 20*20mm M2/M3
    • Weight: 11g


    Package Includes:

    • 1 x AxisFlying Argus Mini F7 Flight Controller Stack w/ 55A 4-6S AM32 4in1 ESC - 20x20mm

    Overall rating: 4.75 / 5 from 4 reviews.

    AI Generated Review Summary

    Summary topics

    Review topics: [].

    Review highlights

    Reviews

    "Great compact size with all the extras! Works great in a lightweight 5" build."

    — Robert (5/5)

    Outstanding customer service!

    "Great stack had a problem with the esc on the first stack I received but I messaged Pyrodrone and they had another one on its way the next day. The best customer service I've seen from a company."

    — Shane k. (5/5)

    good 20x20 stack

    "good 20x20 stack"

    — Rob C. (4/5)

    Great for 3.5 6s build.

    "Durable, easy to solder to, and well labeled stack for a 3.5 6s build. No complaints."

    — Thomas D. (5/5)
