TBS Unify Pro32 DP (MMCX) VTX - NDAA

TBS Unify Pro32 DP (MMCX) VTX - NDAA

SKU T2-14313
Availability:
Out of stock
Sold out
$59.99 - $59.99
$59.99
$59.99 - $59.99
$59.99

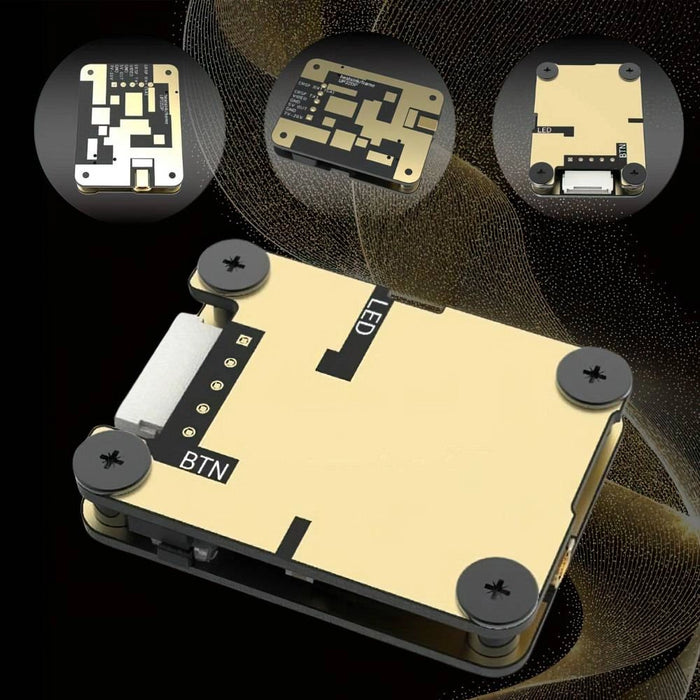

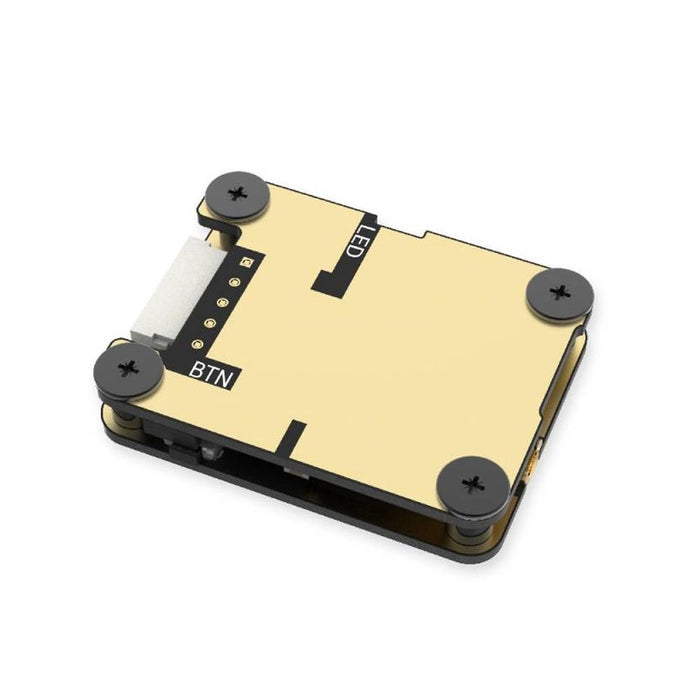

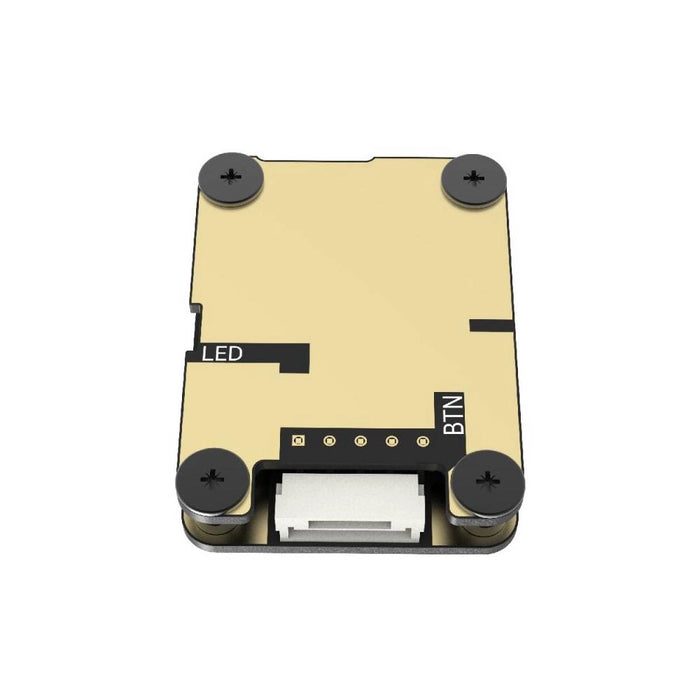

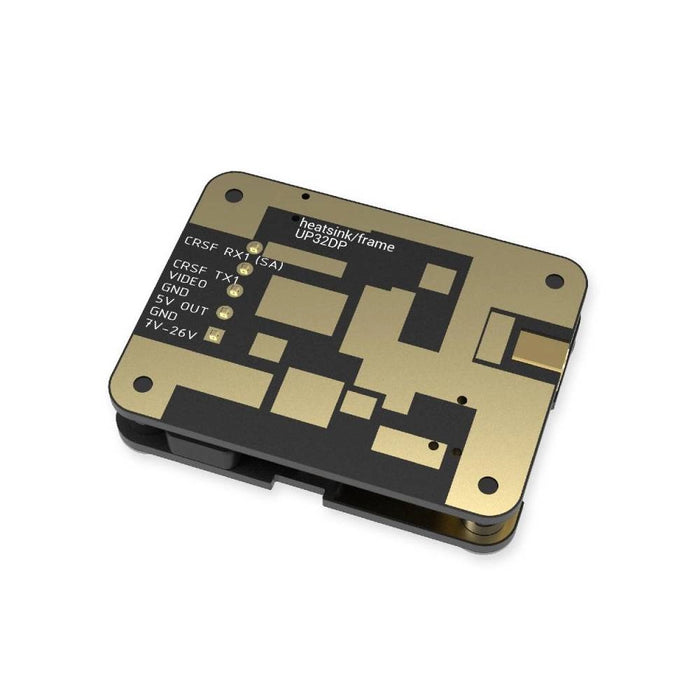

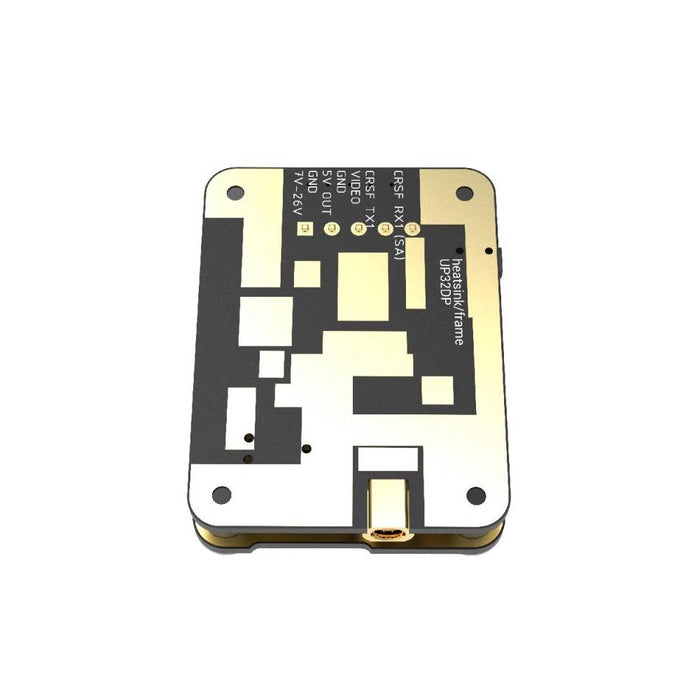

The TBS UNIFY PRO32 DP with an MMCX connector is a high-quality video transmitter (VTX) designed for use in FPV drones. It features improved robustness, decreased size, and reduced power consumption. Enhanced performance and durability are achieved through advanced heat dissipation, which requires no additional heatsink or fan. NDAA-Compliant for added security and compatibility.


You can also add the TBS Unify Pro32 DP Heat Sink for better cooling, Enhanced performance and durability.

Check out all out Analog VTXs and the rest of our TBS collection!

Features:

  • Optimized Heat Dissipation
  • Double Noise Filtering
  • Optional Accessory
  • Lightweight Design
  • OSD Configuration
  • One-Button Setup
  • 2-6S Input Voltage
  • NDAA Compliant
  • MMCX Connector
  • Frequency Range
  • LUA Support


SPECIFICATIONS:

  • Output Power: 14 dBm (25 mW), 20 dBm (100 mW), 26 dBm (400 mW)
  • Operating Voltage: 6V - 25V (2 - 6S)
  • Video Input Impedance: 75 Ohm
  • Dimensions: 37 x 28 x 10 mm
  • Antenna Connector: MMCX
  • Video Format: NTSC/PAL
  • NDAA Compliant: Yes
  • SNR: >63 dBm
  • Weight: 8.7 g


Package Includes:

  • 1 x TBS Unify Pro32 DP VTX - NDAA
  • 1 x Hardware Set

Laws and requirements regarding transmission of radio waves vary greatly across the world. In some countries, this product may not be legal. In the USA, the operator of this product is required by law to have a HAM amateur radio license, at the very least. It is the operator's responsibility to make sure that they are using this product in a legal manner, or not using it at all if not possible to do legally in their location. By adding this product to your cart, you are confirming that you have read this notice, and that Pyrodrone is in no way responsible for the actions of the operator while using this product.
