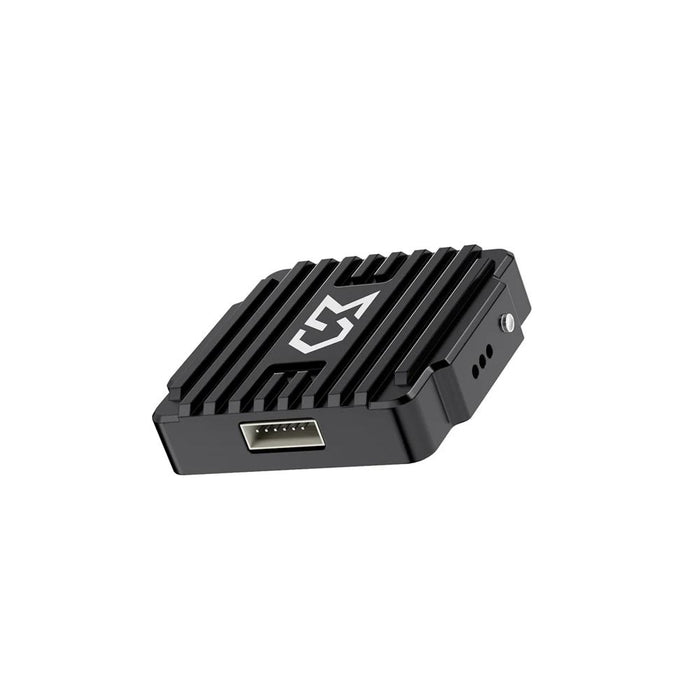

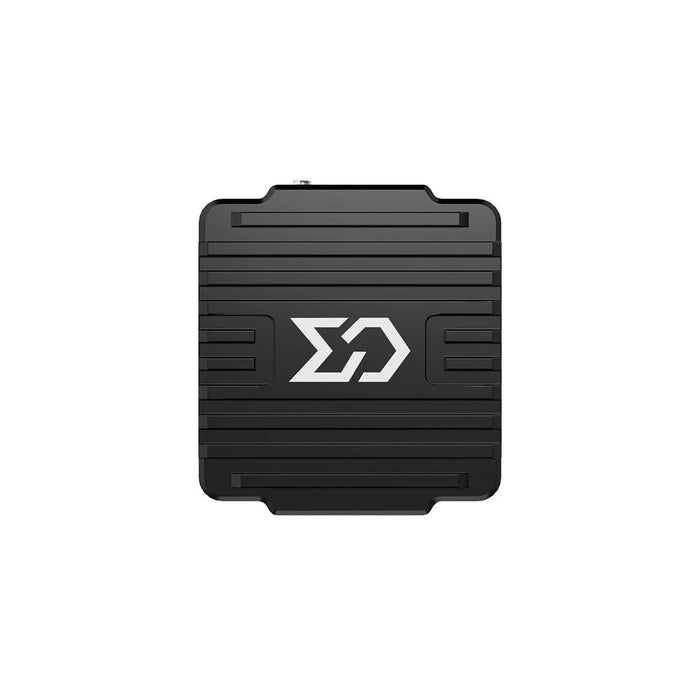

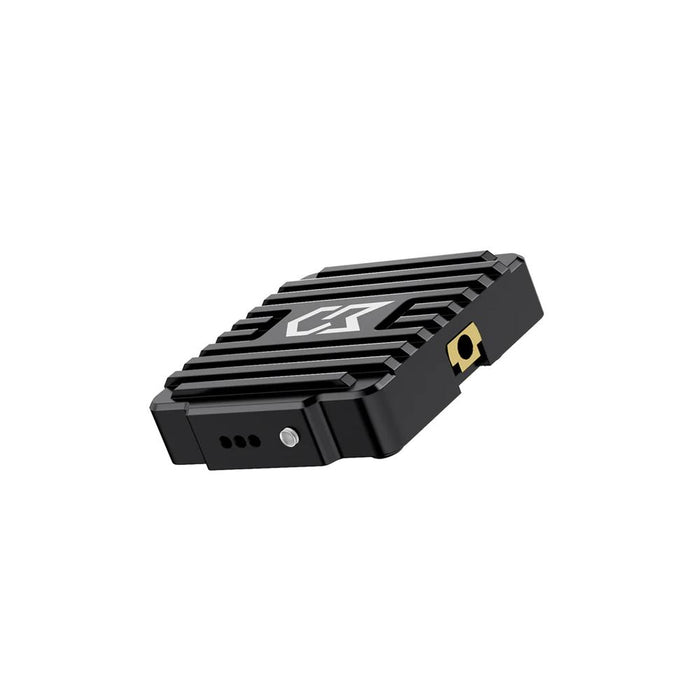

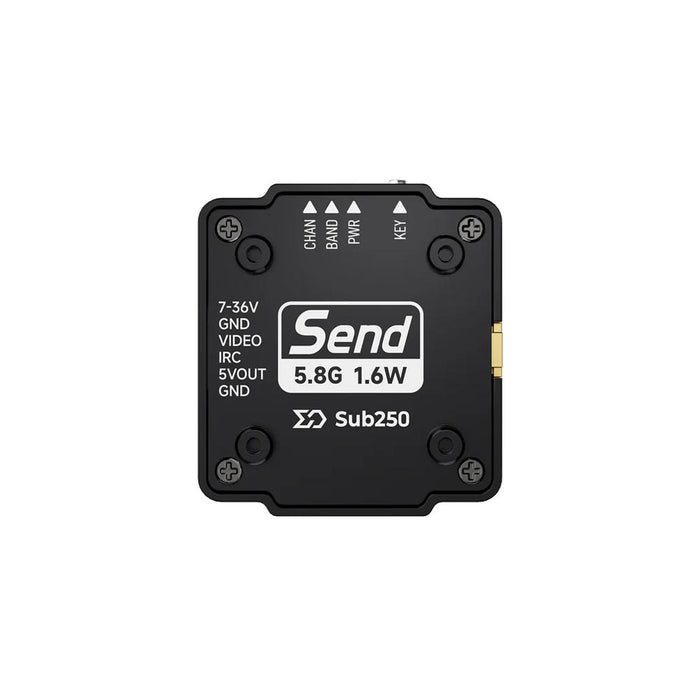

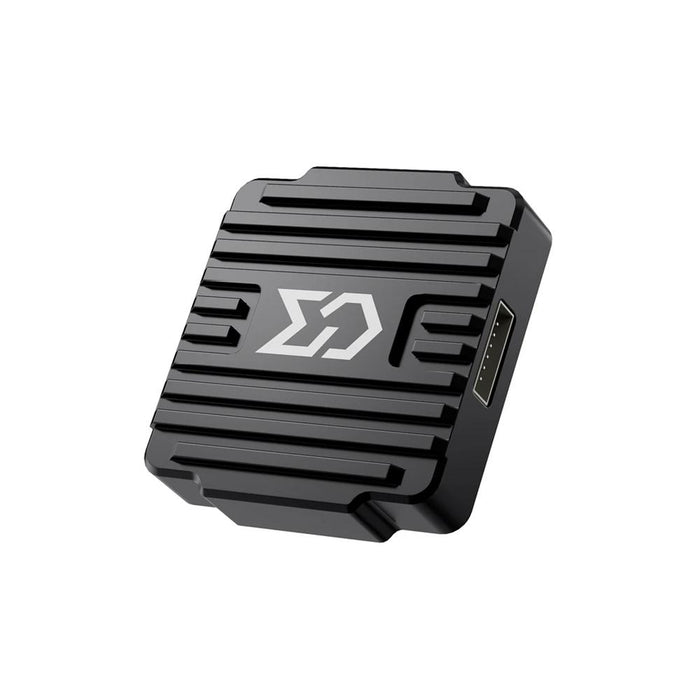

The Sub250 Send T1600 VTX 99 offers robust performance in a compact design, delivering up to 1600mW for reliable long-distance video transmission. It features four power settings and a sturdy CNC aluminum casing that enhances durability and optimizes heat dissipation. Equipped with temperature control protection, it prevents overheating damage. The unit supports a wide voltage range from 7V to 36V and includes 48 transmission channels. With IRC Tramp VTX control protocol, OSD parameter adjustment, a built-in microphone for live audio, and a single function button accompanied by three status indicators, it ensures precise and user-friendly operation.
Check out our Analog VTX selection and the rest of our Sub250 Products
Features:
- Compact yet powerful, up to 1600mW for clear long-range video
- Four adjustable power levels
- Rugged CNC aluminum shell for added durability and superior heat dissipation
- Temperature control protection function prevents burns from overheating
- Wide voltage input supports 7V-36V voltage input
- Supports 48 transmission channels
- VTX control protocol IRC Tramp supports OSD parameter adjustment
- Built-in microphone for real-time audio transmission
- One function adjustment button, three indicator lights for easy operation
Specifications:
-
Model：Sub250 Send T1600 VTX
-
Channels: 48 CH
-
Output power：25mW/200mW/600mW/1600mW/Pit mode
-
Input voltage：DC7-36V（2-8S Battery）
-
Output voltage：5V@600mA
-
Protocol：IRC Tramp
-
Antenna interface： MMCX
-
Mounting hole：20x20mm(M2)
-
Cable interface：sh1.0 6pin
-
Dimension: 35x32x11mm
- Weight: 15.9g
Package includes:
-
1 x Sub250 Send T1600 VTX
-
1 x sh1.0 6P Connecting cable
-
1 x MMCX Copper tube antenna
-
1 x MMCX to SMA (center hole)connector
- 6 x M2*5 screw
Laws and requirements regarding transmission of radio waves vary greatly across the world.
In some countries, this product may not be legal. In the USA, the operator of this product is required by law to have a
HAM amateur radio license, at the very least.
It is the operator's responsibility to make sure that they are using this product in a legal manner, or not using it at all if not possible to do legally in their location.
By adding this product to your cart, you are confirming that you have read this notice, and that Pyrodrone is in no way responsible for the actions of the operator while using this product.
