RC832HD 5.8GHz 48CH FPV HD Receiver with HDMI 1080p upscaled & A/V Output

Most 5.8Ghz FPV video receivers provide only an AV output, which means they can't be used with a lot of modern displays that don't have composite video input. The nice thing about the RC832-HD receiver is that it has both an AV output and a mini HDMI output so it can be connected to most displays. Its HDMI output upscales the video output to 1080P or 720P (select via the switch). You can also output via the AV connection simultaneously with the HDMI output, so the Rx can feed two displays at once. The latency on the AV output is slightly less than the HDMI output, around 20ms vs. 40ms for the HDMI output.

Check out all our Analog Video Transmitters Collection.

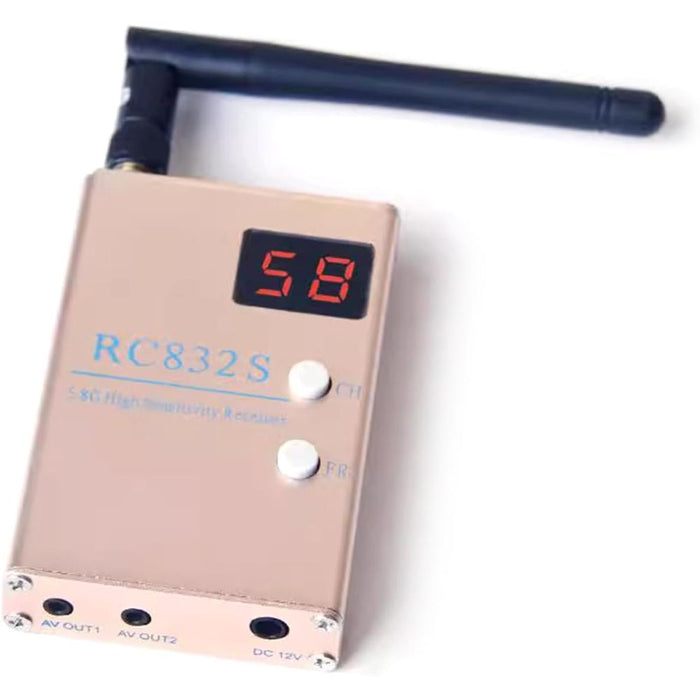

Channel and Digital tube display

Power on， press the “CH” button to change channel，“CH” digit display will change synchronously，“CH” digit display changes cyclically from 1 to 8.

Frequency and Digital tube display

Power on， press the “FR” button to change frequency band，“FR” digit display will change synchronously，“FR” digit display changes cyclically from 1 to 6.

FR1 for A band，FR2 for B band，FR3 for E band，FR4 for F band,  FR5 for R band.

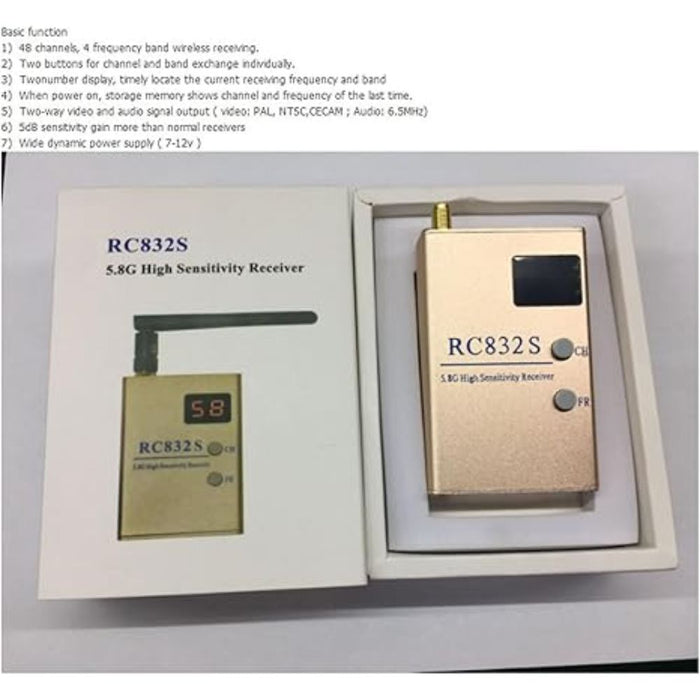

Features:

• 48 channels: Covers A, B, E, F and R Bands.
• Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching;
• Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received;
• Power off memory: Replay the very last frequency band and channel
• Independent video and audio signal outputs

Specifications:

• Receiving Frequency: 5.8GHz
• Channels: 48 (6 Bands)
• Video format supported: NTSC/PAL
• Antenna connection: RP-SMA
• Power input: 6-24V
• Working current: 200mA max
• Antenna Input Impedance: 50ohm Typ.
• Antenna Connector: SMA
• Antenna Gain: 2dBi
• Video Output Level: 1.0Vp-p Typ, 75Ω
• Audio Output Level: 1.0Vp-p Typ, 10KΩ
• Audio Carrier: 6.5MHz
• AV output: 1CH (3.5mm plug)
• HD Output: Mini HDMI

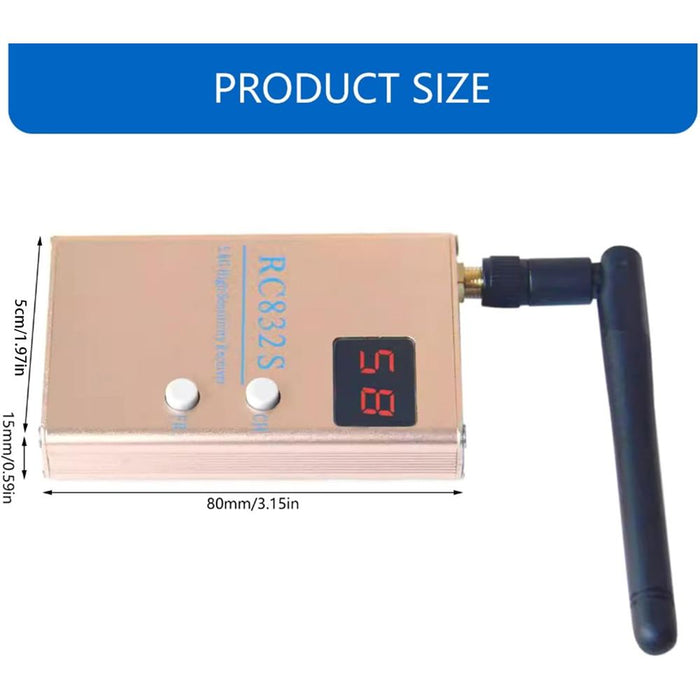

• Dimension: 80x65x15mm
• Weight: 120g

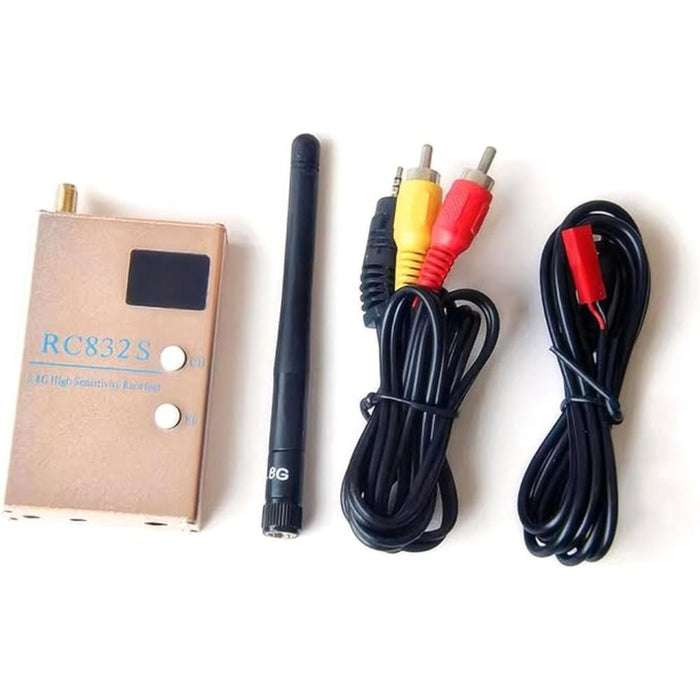

Package Includes:

• 1x RC832HD FPV Receiver
• 1x 5.8Ghz "rubber duck" antenna
• 1x power cable - JST connection.
• 1x RCA cable connector set for video output

Laws and requirements regarding transmission of radio waves vary greatly across the world. In some countries, this product may not be legal. In the USA, the operator of this product is required by law to have a HAM amateur radio license, at the very least. It is the operator's responsibility to make sure that they are using this product in a legal manner, or not using it at all if not possible to do legally in their location. By adding this product to your cart, you are confirming that you have read this notice, and that Pyrodrone is in no way responsible for the actions of the operator while using this product.
