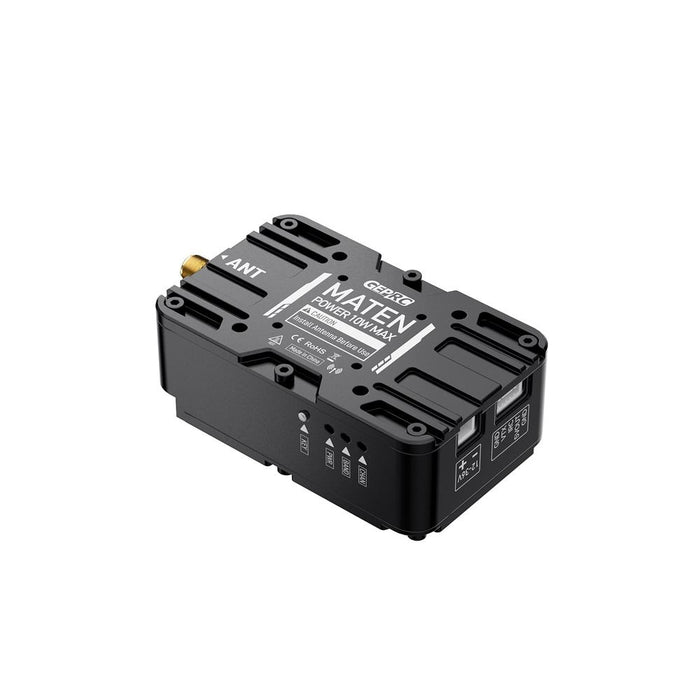

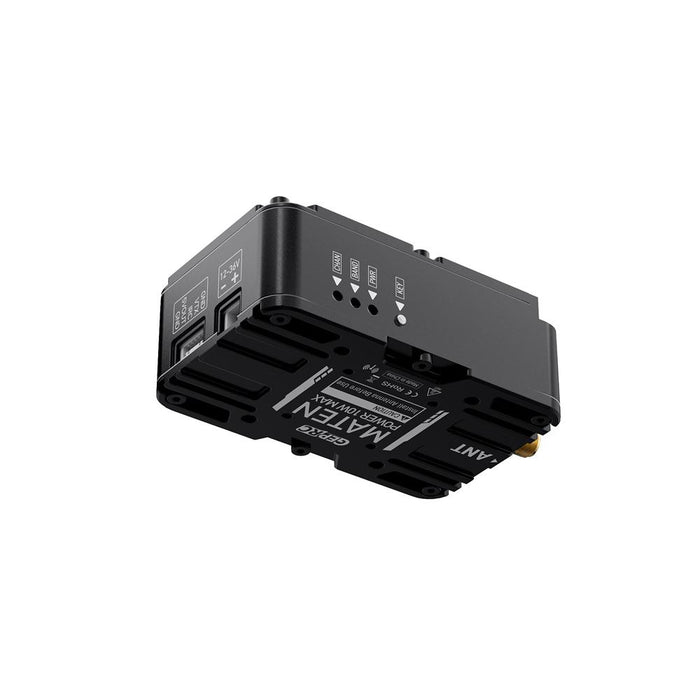

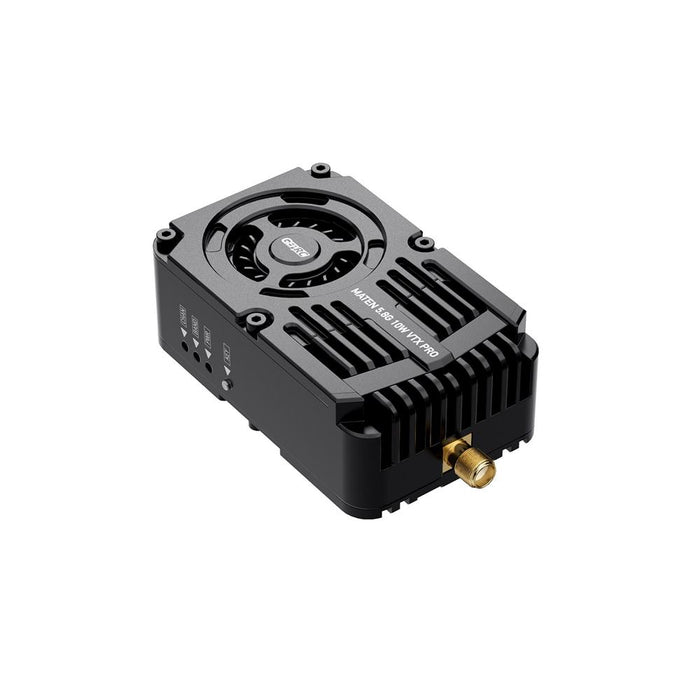

GEPRC MATEN 5.8G 10W VTX PRO Analog Video Transmitter

Warning:

• Install Antenna before use.
• To prevent overheating, provide constant airflow and a well ventilated environment. Install a cooling fan if operating in confined conditions.
• The 5V Output is for a Camera/Cooling Fan use only! Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.

• Four adjustable power levels, up to 10W, ideal for long-range flights.

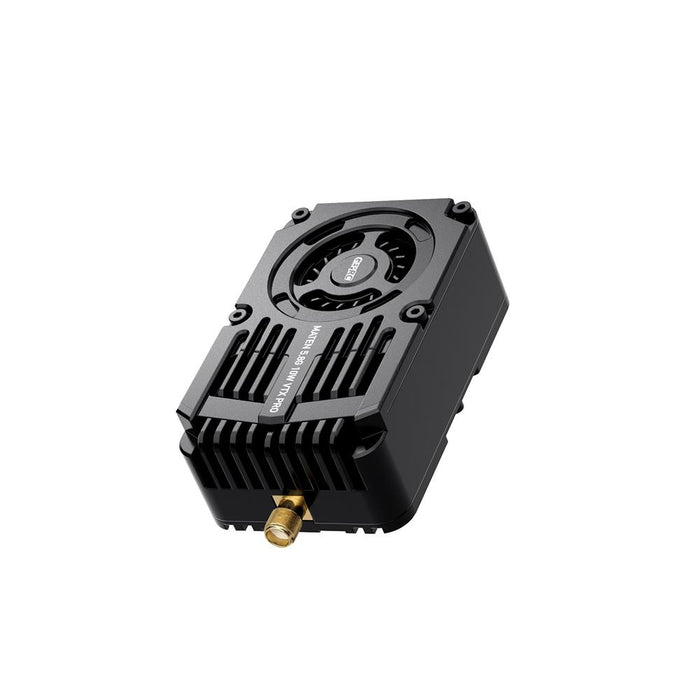

• The high-strength CNC aluminum alloy shell aids in heat dissipation.

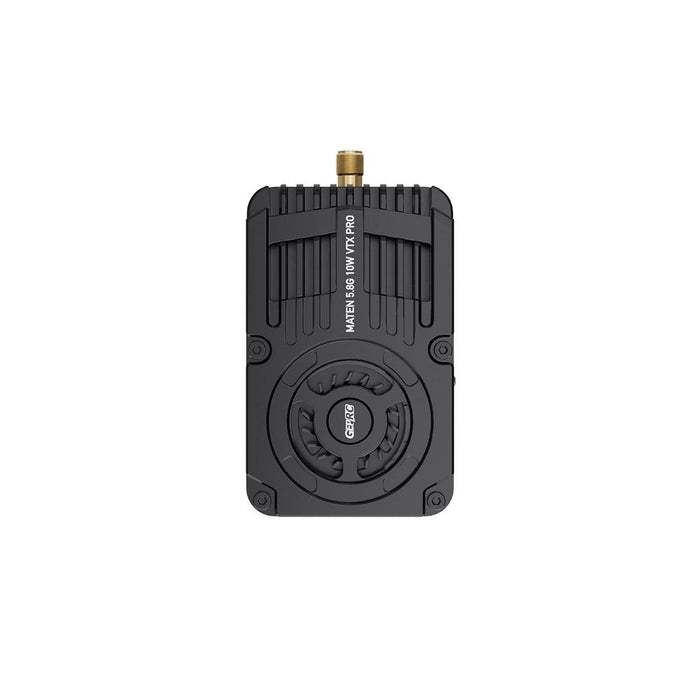

• The built-in micro turbofan actively dissipates heat.
• Wide voltage input range, supporting 12V-36V.

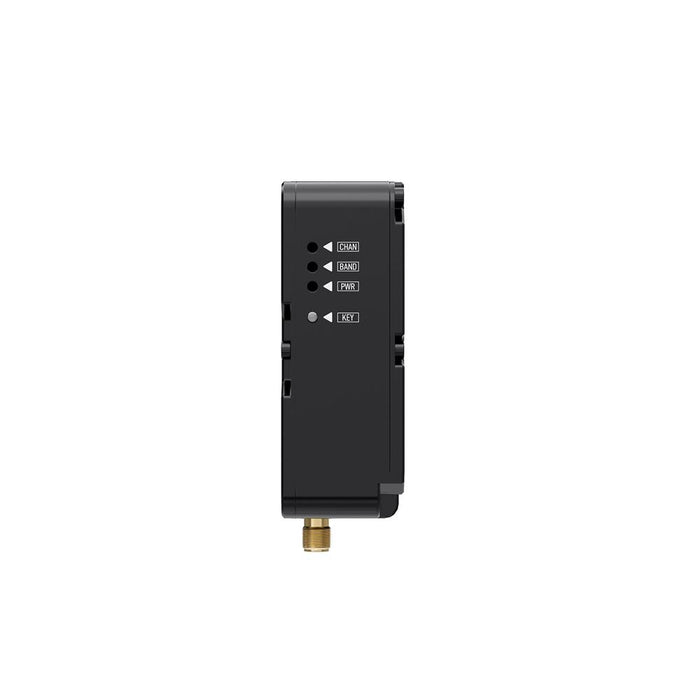

• One function adjustment button and three indicator lights for easy operation.
• Supports the IRC Tramp VTX control protocol for OSD parameter adjustment.
• Temperature protection function prevents overheating.

• Supports enter frequency directly in the configurator.
• Compatible with 20x20mm (M2) and 30.5×30.5mm(M3) mounting hole sizes.


• Model: GEPRC MATEN 5.8G 10W VTX PRO
• Dimension: 78.5×43.6×25.3mm
• Mounting Hole Size:20x20mm(M2),30.5×30.5mm(M3)
• Output Power: 25mW/2.5W/5W/10W/Pit mode
• Frequency: (Must be operated within the legal range of 5650 - 5925 MHz and with a HAM amateur radio license)
• Channels:  (Must be used within the Legal channels range ~40 channels and with a HAM amateur radio license)
• Enter Frequency Directly: Support
• Protocol: IRC Tramp
• Input Voltage: DC12-36V（3-8S Battery）
• Peak Operating Current：3.5A
• Output Voltage: 5V@600mA
• Antenna Connector: SMA
• Cable Connector:PH2.0 2pin,GH1.25 5pin
• Weight: 110g（VTX only）

Package Includes:

• 1 x MATEN 5.8G 10W VTX PRO
• 1 x Power cable(PH1.25 2pin 150mm)
• 1 x FC cable(GH1.25 5pin 150mm)
• 6 x M2*5 screw
• 6 x M3*5 screw
• 1 x Manual

Laws and requirements regarding transmission of radio waves vary greatly across the world. In some countries, this product may not be legal. In the USA, the operator of this product is required by law to have a HAM amateur radio license, at the very least. It is the operator's responsibility to make sure that they are using this product in a legal manner, or not using it at all if not possible to do legally in their location. By adding this product to your cart, you are confirming that you have read this notice, and that Pyrodrone is in no way responsible for the actions of the operator while using this product.
