Introducing the Kayoudur 5" - Built for Bando Bashing.
Crafted from high-quality T700 3K Toray Carbon, this frame is tough as a rock and designed to handle the most extreme bando flying and crashes with no compromises on strength.
N.B: Does not include 3D Printed parts, you have to print the needed parts that suits your build.
Beefy 6*12mm Arms: Built to handle the harshest impacts, these robust arms provide unmatched strength and durability.
Solid 3mm Top and Bottom Plates: No compromises on strength and rigidity.
Quickly Interchangeable Arms: Designed for convenience, our frame allows you to swap arms independently of your stack. Plus, all arms are identical, making replacements a breeze.

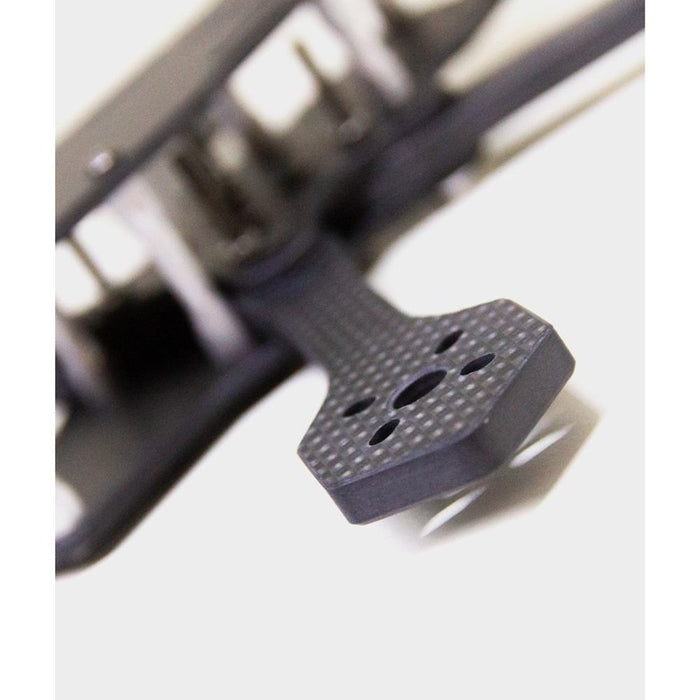

Wide Motor Pads with Increased Bell Protection: Our thoughtfully designed motor pads provide ample protection to your precious motors, even during aggressive flights (and crashes).
No Cam Plates, No Worries: Say goodbye to annoying jello and forget about camera damage from frontal impacts! The Kayoudur's TPU FPV cam mount keeps things smooth and your camera safe.
Frame Specifications :
High Quality T700 3K Toray Carbon (Fully Chamfered)
Hexa M3 12.9 graded Steele Screw
Custom high quality Aluminium standoffs
Weight 167g
3mm Top Plate
3mm Middle Plate
3mm Bottom Plate
6mm Arms
Build Specifications :
30x30 Main Stack
20x20 Back Stack (Fits Caddx Vista, Air Unit O3, Walksnail)
5" Freestyle oriented preset for Kayoudur and Kayouflip.
Betaflight Version :4.3.2
Weight range :650-800g
Motors :2207/2306 1700-2000kv
6s 1100-1300mAh Lipo
Sounds too good to be true right ? Check out these analog DVRs in bando + Kayoudur with a linear VTX Antenna :
If your electronics allows (typically on an Analog build), you can lower the deck by reducing the length of the standoffs by 5mm.
This modification lowers the center of gravity and increases the rigidity of the standoffs (although they're already stiff enough!). Beyond that, the Low Profile mod is, above all, incredibly sexy from an aesthetic point of view.
Package Includes:
1 x Kayoudur 5 Inches HD Freestyle Quadcopter Frame Kit (Without TPU)
