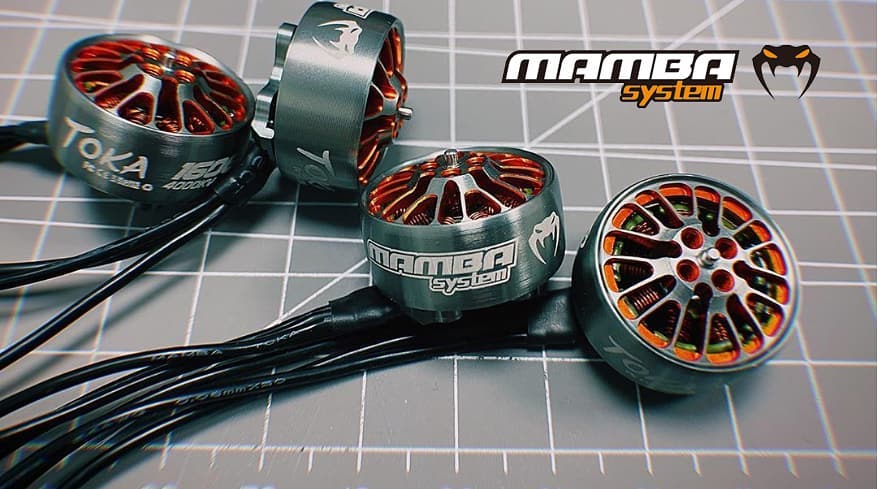

Diatone MAMBA TOKA 1606 3750KV Brushless Motor For FPV Drone Racing

Regular price $14.99 Sale

Availability: Available Unavailable

Product SKU: 60D-8860

Product Details

Diatone MAMBA TOKA 1606 Stator available in 2 different KVs, made for 3-4" T-Mount Props with 12x12mm mounting.

KVs:

Check out all our 16XX Motors and the rest of our Diatone Products!

SPECIFICATIONS:

    MAMBA TOKA 1606 3750KV MOTOR:

    • Overall Dimension: Φ22.2×15mm
    • Shaft Diameter: 1.5mm
    • Installation hole position: 12×12mm,M2
    • Prop: 3inch~4inch
    • Bearing:5*2*2.5
    • Diameter: 2mm
    • Lead Wire Size:24AWG ×150mm
    • Configuration: 9N12P
    • Magnet Wire: Class H, 220℃ Enameled Wire
    • Stator Diamter:16mm
    • Stator Height: 6mm
    • Rated Voltage: 3~4S (12.6V~16.8V)
    • Peak Current: 21.1A
    • ldle Current:9v/0.8A
    • Maximum Power: 338W
    • Internal Resistance:114Ω

    Package Includes:

    • 1 x Diatone MAMBA TOKA 1606 3750KV Brushless Motor For FPV Drone Racing
